Kinesis Classic Contoured Keyboard - Detailed Specification Sheet

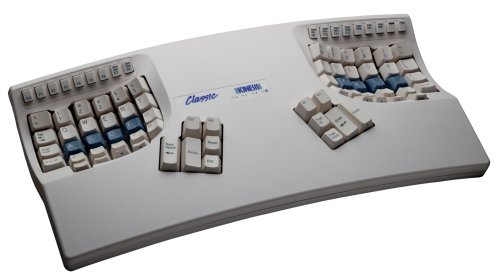

Picture of Kinesis Classic Contoured Keyboard

Picture of Kinesis Classic Black Contoured Keyboard

Kinesis contoured keyboards are based on a unique, patented design that minimizes the pain and strain typists experience from heavy use of conventional computer keyboards. The Classic offers ergonomic and programmability features most suitable for the everyday computer user.

The ergonomic design (Click here to review all the ergonomic benefits) resulted from two years of research and testing and has proven itself in over six years of commercial use. Kinesis contoured keyboards are prescribed by physicians and placed by physical and occupational therapists dealing with keyboard-related repetitive strain injuries. CLICK HERE TO READ A RESEARCH STUDY ON THE CONTOURED KEYBOARD LINE.

Classic (basic programmable) models
This is the most popular and versatile model of our contoured keyboard family. Easily customized, it is optimal for most computer users. You can buy the optional software and accessories you need, without paying for things you won't use.

· Advanced ergonomics PLUS on-board programmability
· Programming features at an intermediate price!
· Remap any or all keys!
· Select 24, 36, or 48 macros (56, 38, or 28 characters long, respectively)
· Switch between QWERTY and Dvorak layouts on the fly!
· Modifier keys can be "sticky" (set individually)
· Upgradable to Professional

Compatibilty
· PS/2 systems, Windows 95/98/2000, ME and NT (includes Windows key actions)
· The Classic MPC model is Mac/PC switchable for all older Macintosh computers having an ADB port. For newer Macs with USB ports, purchase a PC keyboard and a PS/2 to USB adapter.
· All models are Sun compatible when used with a Kinesis Interface II for Sun.

Layout Options for the Classic contoured keyboard

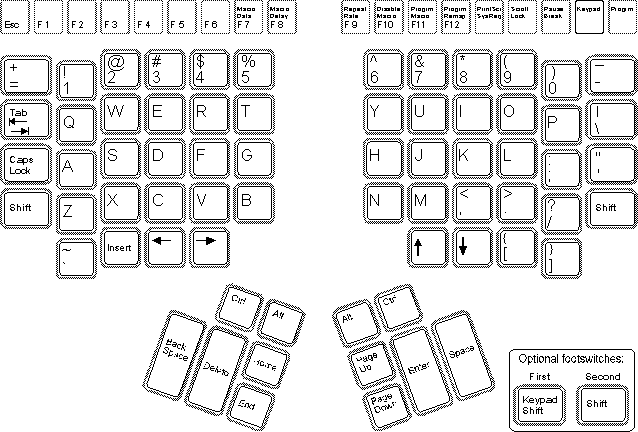

· The familiar Qwerty key layout is standard

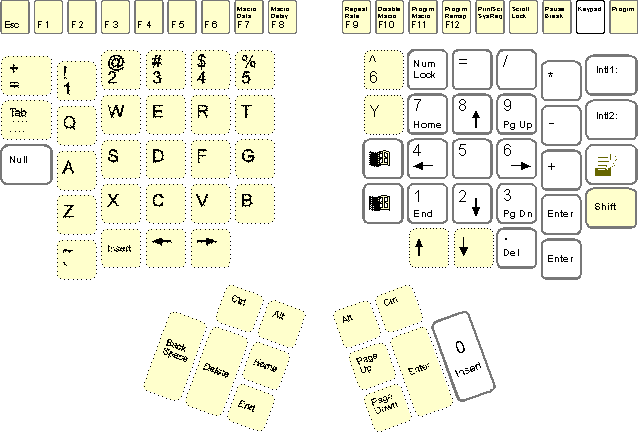

· The embedded keypad offers maximum productivity and comfort for 10-key users, especially using a foot switch.

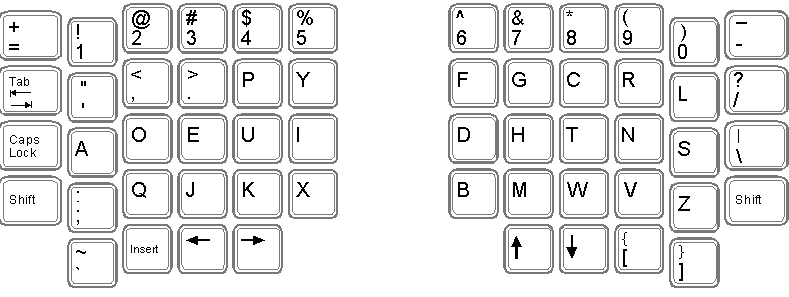

· The Optional Dvorak key layout speeds typing. All Classic and Professional keyboards switch on the fly. Note: Except for "QD" models, keycap legends are Qwerty only.

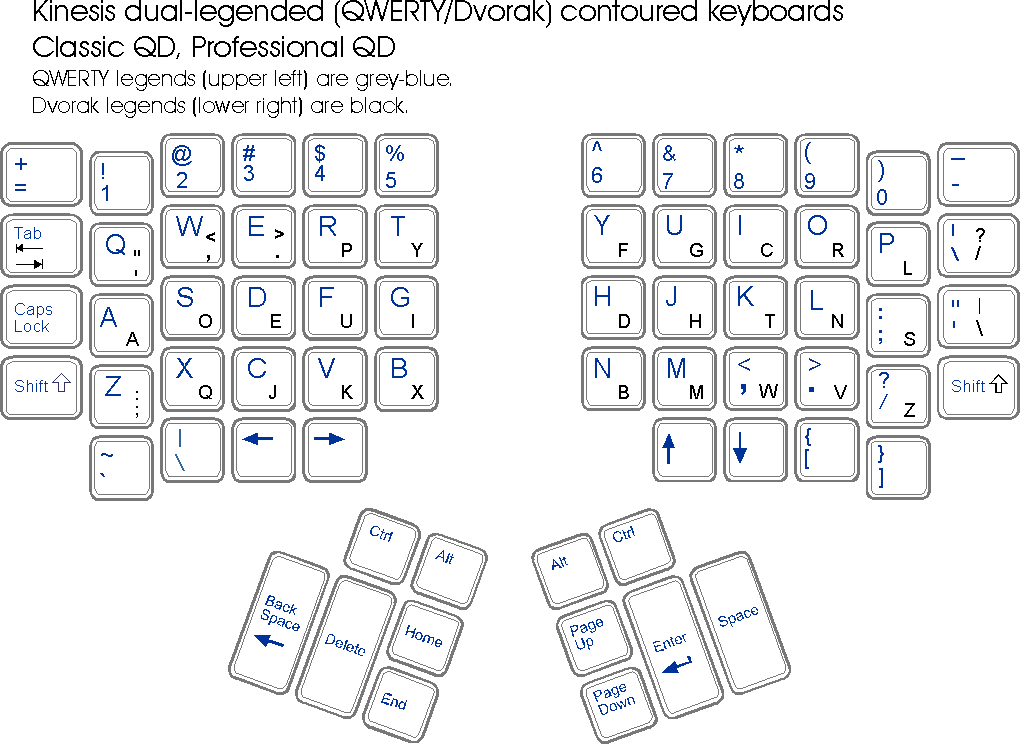

· Want dual legends? Buy a "QD" Qwerty-Dvorak switchable model, or get an upgrade kit later. Sorry, but Dvorak-only legends are Not available.
· MPC keyboards switch between PC and older Macintosh (ADB) systems. On Mac, support special Macintosh key actions.

Model Numbers
· Classic Contoured Keyboard for PC, KB133PC
· Classic Black Contoured Keyboard, KB133PC-BLK
· Classic Qwerty/Dvorak Switchable Contoured Keyboard for PC, KB133PC/QD

Keyboard Specifications:

Keyboard Dimensions:

Width: 16.5 inches
Height: 2.9 inches
Depth (front-to-back): 8 inches
Weight: 2.5 lbs
Front Slope: 10 degrees
Lateral Tilt ("thumbs up"): 20 degrees
Center Separation: 6.75 inches

FOOTSWITCHES (Optional; single, dual and triple available)

Default is 'Keypad Shift' (numeric keypad mode is enabled until footswitch is released)
Second default footswitch action is 'Shift'
Programmable when used with programmable keyboards

ACCESSORIES INCLUDED

PS/2 Adapter (6-Pin Mini-DIN)
User's Manual
Adaptation Materials
Self-adhesive Palm Pads

Key Action Specifications:

ALPHANUMERIC KEYS:

Full travel, tactile mechanical keyswiches: 68
Low operating force (1.59 oz.) - 45 grams
Pre-travel 2mm
Total travel 4mm
Life 50 million operations

FUNCTION KEYS:

Elastomeric keyswitches: 18
Soft Tactile action

EMBEDDED KEY ACTIONS:

Numeric keypad actions: 18
Windows 95 key actions: 3
International key actions: 2
Other programmable key actions: 60
(Classic and Professional Keyboards only)

WARRANTY:

Two Year Limited Warranty
