Single Action Footswitch Contoured Keyboard Accessory by Kinesis (FS005RJ11)- Detailed Specification Sheet

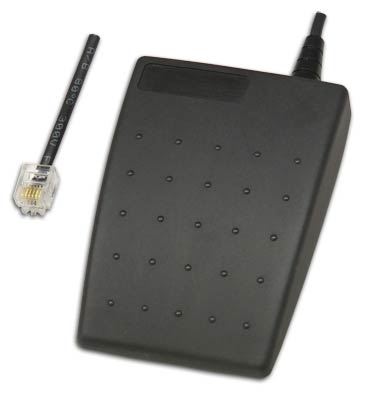

Picture of Kinesis Single Action Footswitch Contoured Keyboard Accessory

With a programmable Contoured keyboard, the foot switch may be configured to perform any user-defined keystroke or macro!

Give your hands a rest and increase your output!

This elegant, premium pedal is front-hinged and has a textured surface. For most users, it provides more comfort and control than the outer pedals of the Triple Action Foot Switch. It comes with a 10 foot cable and works with all models (past and present) of Kinesis Contoured keyboards. A self-adhesive, hook & loop tab is provided to anchor the pedal to the floor if desired.

If you like this pedal's look and feel but want to use more than one at a time, or you want to change actions without re-programming your keyboard, you will need to purchase a special splitter (below).

Features:

Contoured keyboard users often find a foot switch boosts productivity by enabling instant access to shortcuts (macros) or remapped keys in the "embedded" (keypad) layer.
Number crunchers (especially bookkeepers and accountants) usually find a foot switch provides a huge productivity boost with a Contoured keyboard. With the center pedal, you get instant access to the embedded numeric keypad, without moving your hands from the home row of keys.
Modifiers are often useful foot switch actions, to reduce the awkward reaches often required to produce key combinations.
Small footprint (2.5 x 3.5 inches) is ideal for confined spaces
Pedals are front-hinged and rounded for easy triggering, made from black, glass-reinforced nylon
Rounded, textured surface for confident control
10 foot cable for flexible positioning (can be extended with telephone-style modular cable)
Default actions are "Keypad Shift", "Keypad Enter", and "Shift".
Easily upgraded by adding additional pedals (up to three for newer Contoured keyboards) as needs change (optional three-way splitter required)
Anyone who wants to offload work from their fingers will love this footswitch!

Specifications:

Height: 1.0 " (2.5 cm)
Width: 2.5" (6.35 cm)
Depth Front-to-Back: 3.5" (8.89 cm)
Cable Length: 10 ft (3.04 m)

Available Accessories:

FS011FS3 - Three-way splitter required to connect 2 or 3 single action foot switches. For new contoured keyboards with US layout (connector extends 3" from back of keyboard)

FS011FS2 - Two-way splitter to connect 2 single action foot switches to older contoured keyboards, including Ergo Elan and Ergo Elite versions (connector at end of keyboard cable)

Compatibility:

This pedal comes with a telephone-style coupler and an RJ11 telephone style connector, so it will work with any Contoured keyboard ever produced by Kinesis.

With the addition of a special three-way splitter accessory (above), up to three pedals may be connected at once.

All Kinesis contoured keyboards built after Sept. 2002 (identified by a short telephone-style cable extending from the back of the keyboard) support up to three single-action foot switches. The optional three-way splitter is required to select different pedal actions without reprogramming the keyboard, or to connect more than one pedal at a time.
