The SmartNav by NaturalPoint - Detailed Specification Sheet

The NaturalPoint SmartNav is a revolutionary pointing device - there is simply no comparable product on the market which provides a completely hands free pointing device for your computer.

NaturalPoint SmartNav mouse alternative products give you hands free control of a computer cursor. The ergonomic SmartNav provides precise cursor control through simple head movement allowing your hands to remain on your keyboard, or at your side. If you're looking for a productivity boosting hands free cursor control option that helps you avoid problems like carpel tunnel and repetitive strain injury, then the SmartNav is your ideal solution. The SmartNav is the world's only true ergonomic computer mouse because unlike other ergonomic mice, the SmartNav is totally hands free.

NaturalPoint SmartNav hands free mouse is a revolutionary product for People with Disabilities.

The SmartNav hands free cursor control system is an assistive technology breakthrough for people with ALS, spinal cord injuries, and other people with disabilities who require a hands free mouse alternative. The TrackIR™ also offers something competing products for people with disabilities don't, full mobility! The SmartNav is a USB device and requires no external power. Just plug it into your computer or laptop and you're ready to go.

How it Works Dot Method- Comes with Basic, Ergo and AT Model The SmartNav Dot mode is a favorite of many users because it allows you to control your computer’s cursor by simply turning your head to look at any point on the monitor screen. This mode is described as being “more intuitive than a mouse” by many because it uses your natural head motion to perform normal mouse functions. Clicking is done with user defined Hot Keys, or Dwell Clicking for people with disabilities and others who want total hands free control. Gamers will find that the SmartNav Dot adds a whole new dimension to their gaming experience. Instead of using the mouse to control field of view and targeting functions, you can simply look at any point on the screen. Customer Service professionals and others who spend much of their time on the phone will enjoy hands free cursor control.
Ring Method- Comes with Ergo and AT Model The SmartNav Ring lets you control your computer’s cursor without taking your hands off the keyboard. When you slip on the Ring, the SmartNav locks onto your finger, allowing you to perform all typical mouse functions by simply aiming your finger at any point on your monitor screen and clicking with your user defined Hot Keys. The SmartNav Ring also incorporates a scroll function, which is handy for browsing web pages and text documents. The SmartNav Ring is a great productivity booster because it combines the familiarity of hand based cursor control with the speed, accuracy, and ease of use of the SmartNav, making it the perfect tool for business executives, secretaries, students and data entry professionals.
Wand Method The Wand accessory is the ideal cursor control device for Presenters, or anyone else who would like the confidence that comes with owning the most accurate and intuitive remote pointing device on the market. At 1” by 1.5” the SmartNav Wand is far smaller than other remote pointers, so your audience will focus on your presentation rather than the pointer in your hand. The Wand is equipped with a single button that allows you to click, double click, drag, resize windows, and highlight text. With its 20 ft effective range, the Wand is the perfect tool for most conference rooms and similar settings.
Models:

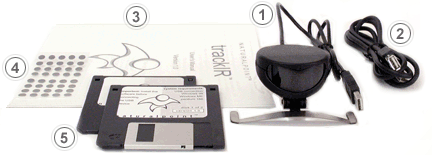

Basic SmartNav Box Set The Basic SmartNav Box Set comes with all of the accessories shown here: 1 - Black SmartNav Unit 2 - USB Extension Cable 3 - User’s Manual 4 - 40 Reflective Dots 5 - Software (Now on CD)
SmartNav Ergo Box Set The SmartNav Ergo comes with all of the following: 1 - Clear SmartNav Unit 2 - USB Extension Cable 3 - User’s Manual 4 - 40 Reflective Dots 5 - 2 Rings 6 - Software (Now on CD) 7 - Y Breakout Cable for Multiple Switches 8 - Wand

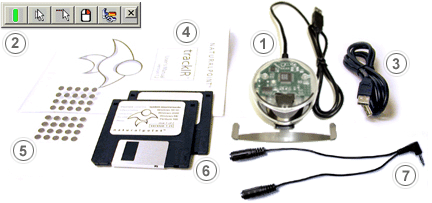

SmartNav AT Box Set It comes with all of the accessories shown here, including: 1 - Clear SmartNav Unit 2 - Dwell Clicking Software 3 - USB Extension Cable 4 - User’s Manual 5 - 40 Reflective Dots 6 - Software (Now on CD - includes Virtual Keyboard and Dwell Click Function) 7 - Y Breakout Cable for Multiple Switches
Accessories:

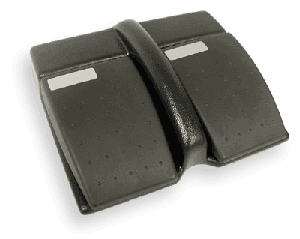

Two Button Foot Switch Our ergonomic two button foot switch connects directly to the SmartNav and can be re-programmed to perform a variety of functions using the SmartNav control software. Comfortably perform normal left and right mouse clicks, or define custom functions such as; pausing the cursor, centering, or scrolling through text. Dimensions: 6" x 5" Note: Foot Switch can only be used with SmartNav AT and EG models.
ClickSwitch This switch accessory plugs into the SmartNav AT and EG units to provide remote clicking capability. The Click Switch accessory plugs into the Smart-Nav EG and AT units to provide remote clicking capability. At only 2" in diameter and 0.75" tall with a 5 foot cord, the circular switch can be placed on any flat surface and is easy to hit. Enjoy full mouse emulation by pairing a second switch (for right clicking) with your first (for left clicking) via the included Y Breakout Cable. NOTE: A Click Switch is not included as part of this SmartNAV package. "External switch input" just refers to the capability to plug an external switch into the Smart-Nav EG. Only available for use with EG and AT models.

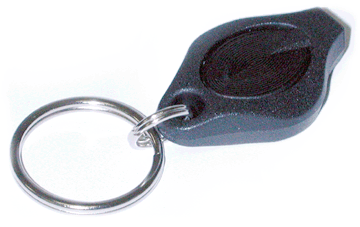

Wand SmartNav owners, pick up a Wand today and enjoy the same precise and intuitive control you’ve come to expect from the SmartNav from up to 20 feet away! SmartNav presenters, get an extra Wand for tag team presentations, or just to keep on your key chain for emergencies.

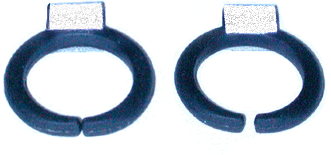

Rings Our comfortable one-size-fits-all rings are made from soft, flexible plastic. Each SmartNav AT and EG unit comes standard with a pair of rings.

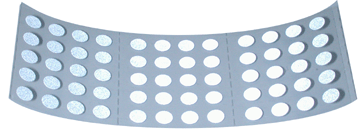

Dots The reusable quarter inch dots are made from highly reflective 3M material, and are sold in strips of 60. Each SmartNav unit comes with 40 dots, which should last 6-12 months depending on use. Heavy users may want to stock up!
