Ergo Canada LogoThe RollerMouse and RollerMouse Pro by Contour Design - Detailed Specification Sheet

THIS WEB PAGE IS OBSOLETE.



It has been superceded by a more recent version.



Please click on the link below to view the most current information on this product.



CURRENT ROLLERMOUSE MORE INFORMATION PAGE







Classic RollerMouse

RollerMouse Pro

Roller Mouse Station - with conventional keyboard

The Contour Design RollerMouse is the best way to prevent overextension when reaching for a mousing device.

Click here to view a presentation which shows the advantages of the RollerMouse

Comparison of the Classic RollerMouse and the Roller Mouse Pro

3 Buttons, Scroll Wheel and Rollerbar
5 Buttons, Scroll Wheel and a Wider Rollerbar

Both versions feature removable wrist rests for cleaning

Or for added support for either unit purchase the RollerWave accessory (available with a soft foam with Lycra covering in white (RM-WAVE-01) or black (RM-WAVE-02) or solid plastic in black (RM-WAVE-LP)

RollerMouse Classic

RollerMouse PRO

Dimensions
20.875" x 11.75" x 1.25"
Same
Resolution
400 DPI
800 DPI
Auxillary PS/2 Port
Yes
No
RollerBar Width
4.3125"
6.8125"
RollerBar Clickable
Yes
Yes
Adjustable Bar Click Force
Yes
Yes
Number of Buttons
3
5
Draglock Button
No
Yes
Clickable Scroll Wheel
Yes
Yes
Interface
USB with PS/2 Adapter
Same
Drivers Required
No
No
Drivers Available
Yes
Yes (Upon Request)
Replaceable Wrist Rests
Yes
Yes
Rollerwave Accessory
Yes
Yes
Warranty
2 years
Same
Manufacturer Model Number
RM-STA-WHT (White), RM-STA-BLK (Black)
RM-PRO-BLK (Black), RM-PRO-WHT (White)

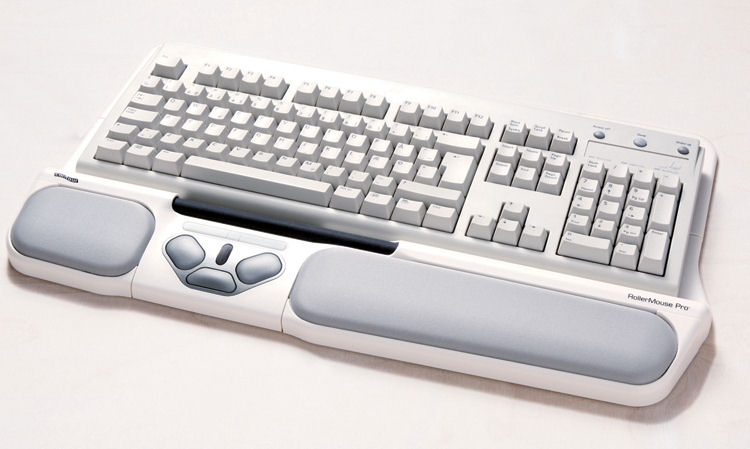

RollerMouse PRO in White NOW AVAILABLE!

STUDIES

NEW - CALL CENTRE RESEARCH STUDY SHOWS ROLLER BAR MOUSING STATION REDUCES PAIN BY 47%

NEW - PILOT STUDY REVEALS ROLLER BAR MOUSING STATION RESULTS IN 5% INCREASE IN PRODUCTIVITY

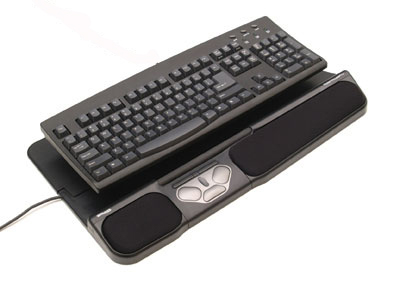

The Contour RollerMouse is an innovative new option to a computer mouse and a remarkably simple solution to implement in your enterprise. Its ergonomic design places cursor control just below the spacebar of any keyboard... making data entry faster, safer, and more comfortable for right- or left-handed computer users.

The RollerMouse is a unique and simple ergonomic pointing device that helps prevent strain and tension of upper extremity muscles including shoulders and elbows. It is a remarkable way to control the cursor without the need to grip or reach for a mouse, and requires minimal space. When you use the Contour RollerMouse, your hands and fingers stay on the keys... no more awkward or uncomfortable reaching for a mouse. And the RollerMouse's built-in ergonomic palm supports provide optimum comfort and safety.

The RollerMouse can be controlled with thumb or fingertip motion using either hand, and cursor control is placed where it makes sense; just below the spacebar of your keyboard. Programmable buttons and a scroll wheel speed up repetitive functions, and optical technology ensures precise control of cursor movement. The RollerMouse is best for workspaces with no room for a mouse. It frees up space, providing more room to a user with close working conditions

The Roller Bar provides cursor control by sliding left to right, up and down, and diagonally. Pressing the Roller Bar also performs single click operation. Middle Button performs Double Click. Left button is standard single click Right button selects contextual menus. Scroll Wheel can be pressed to perform AUTO scroll function

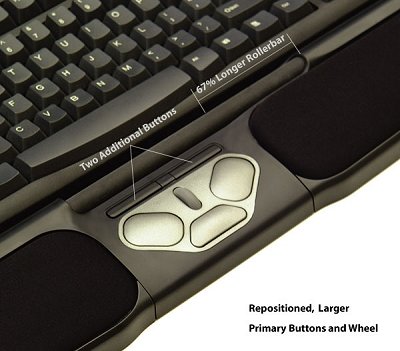

The RollerMouse Pro has larger buttons (as shown at right) and a bar which is 67% longer. This unit offers the following distinct features differentiating it from the Classic RollerMouse:

  • New RollerBar Design for Effortless Control of the Cursor is 67% Longer than the 'Classic' RollerMouse - making the product comfortable for all, even people with broad shoulders.
  • Two more Buttons to extend versatility and flexibility - includes "Drag Lock" and "Double Click" functionality
  • Larger easier to target buttons
  • Only available in black, no PS/2 port for an additional mouse

The RollerMouse Pro was Voted #1 INPUT DEVICE at the
National Ergonomics Conference & Expo - LAS VEGAS, 2004

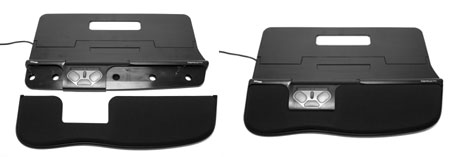

For most shorter people, the Classic RollerMouse (still available in both black and white) may continue to be the preferred option. The Rollerwave accessory (providing double the depth of wrist support) attaches to the PRO model in the same manner as on the Classic RollerMouse.

The RollerMouse allows the users to perform tasks such as pointing, clicking and scrolling while keeping their arms in a relaxed position at their side. By eliminating the reaching for a standard mouse, there is a noticeable reduction in strain on the shoulder and elbow.

The RollerMouse enhances your current keyboard, and is supported by virtually all computer operating systems with no software drivers to install. And for people who just can't give up their current mouse, the Classic RollerMouse includes a PS/2 port (not available on the RollerMouse Pro). This flexibility allows the user to alternate easily the workload to different muscle groups throughout the course of the workday.

Bar Click Tension Adjustments

A dial on bottom will adjust the tension of Roller Bar click force. Small dot requires least amount of pressure to click Large dot requires most amount of pressure to click

RollerMouse Bundles:

Bundle #1

Picture of RollerMouse PRO  with A Style KeyboardRollerMouse PRO with the "A" Style keyboard (KBS720-UB (USB, Black) or KBS720-B (PS/2, Black))

This keyboard offers an ultra thin design that's the correct height for integration with the RollerMouse PRO. Another benefit is the unique 'A' shape of the keys which promotes improved ergonomic positioning through visual cues to reduce ulnar deviation.

The normal price of the KBS720-UB is $25.00, and the price of the RollerMouse PRO is $210.00. Until further notice, we will offer the bundle of both products for $225.00, a savings of $10.00 off the regular price!

The normal price of the KBS720-UB is $20.00, and the price of the RollerMouse PRO is $210.00. Until further notice, we will offer the bundle of both products for $220.00, a savings of $10.00 off the regular price!

Bundle #2

Classic RollerMouse with Zeomi ZTab keyboard

The Zeomi ZTab Keyboard in white features a triple-width TAB key under the cursor arrows, making one handed numerical data input a breeze. It partners nicely with the Classic RollerMouse (the first generation model) in white.

The normal price of the Zeomi ZTab Keyboard is $55.00, and the price of the RollerMouse Classic is $205.00. Until further notice, we will offer the bundle of both products for $225.00, a savings of $35.00 off the regular price!

Looking for an even MORE Ergonomic Solution?

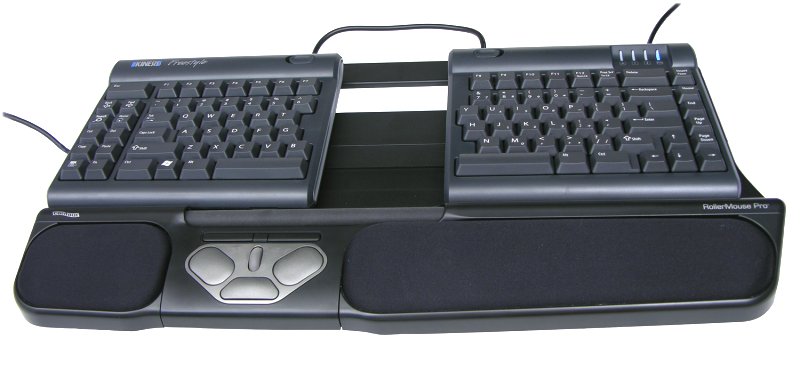

Want to use an Ergonomic Separated Keyboard on the RollerMouse PRO? Try using the Kinesis FreeStyle Solo with the RollerMouse PRO as shown at left.



RollerMouse Specifications:

  • Revolutionary rollerbar provides single finger point and click functionality.
  • Adjustable click force on rollerbar (5 levels of tension) using simple knob under RollerMouse. (Rollerbar click function can be disabled using dip switch if user prefers using buttons.)
  • Smooth sliding steel rollerbar coated with soft rubber for excellent feel and cursor control.
  • Long Lasting - Optical sensor reads bar movement using the latest technology - nothing to wear out
  • 3 user definable buttons and a scroll wheel (5 buttons on the RollerMouse Pro)
  • Buttons configurable for Click, Double-Click and Draglock via dip switches. No driver required with the exception of Windows 95, NT and Macintosh systems which require driver for scroll functionality. See below for download options.
  • PC and Mac compatible (USB device with PS/2 adapter included)
  • Secondary PS/2 port for connecting one additional input device (on Classic RollerMouse only)
  • Soft but firm lycra wrist rest support. Removable for easy cleaning.

Drivers: See Contour Design's web site here: http://www.contourdesign.com/rollermouse/rollermouse_specs.htm
