| BakkerElkhuizen Laptop Stands |  Ergo-Q 220 |
 Ergo-Q 260 |
|
 Ergo-Top |
 Ergo-T 340 |
| Improves body posture and comfort level |  |
|
|
|
|
| Decreases neck torque, increases comfort and productivity | |
|
|
|
|
| Integral document holder (patented) | |
|
|
|
|
| Document holder pivotable to provide occasional access to laptop keyboard | - | |
|
- | |
| Money saver: no external monitor needed | |
|
|
|
|
| Mobile (in notebook case) | |
|
|
- | - |
| Hot desking and home office solutions | |
|
|
|
|
| Capacity to Integrate Port Replicator or Docking Station | - | - | - | - | |
| Weight | 430 g | 390 g | 485 g | 1300 g | 3500 g |
| Composition | Aluminum | Aluminum | ABS | PMMA | ABS |
| Range of Adjustment (in degrees) | 20-50 | 20-45 | 20-40 | 18-35 | 20-40 |
| Range of Adjustment (height at back of unit) | 5" | 4.75" | 3" | 2.5" | 7" |
| Width | 230 mm | 230 mm |
228 mm |
245 mm | 325 mm |
| Length | 310 mm | 310 mm | 310 mm | 370 mm | 310 mm |
| Height (deployed, at lowest setting) | 108 mm | 90 mm | 113 mm | 220 mm | 263 mm |
| Height (deployed, at highest setting) | 238 mm | 210 mm | 193 mm | 157 mm | 85 mm |
| Height (folded for transport / storage) | 9 mm | 7 mm | 13 mm | n/a | n/a |
| Model Number | BNEQ-220 | BNEQ-260 | BNEQ-330 | BNET-220 | BNET-340 |
 |

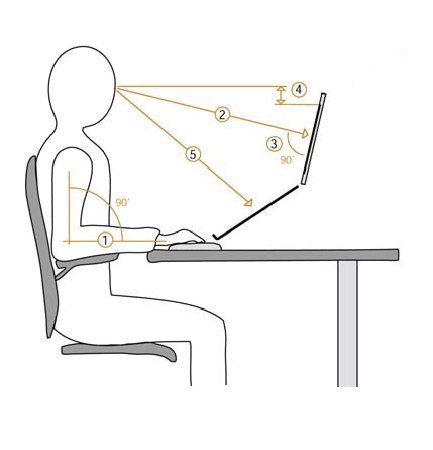

Ergonomic Guidelines
1. Adjust the armrest of your chair to at least the height of table and keyboard, so that your shoulders are relaxed and slack, and the angle at your elbow is at least 90 degrees. 2. Select a viewing distance to the screen between 19.6"- 35.4", according the screen and character size. 3. Place the screen at an orientation which is tangential (i.e. 90 degrees when compared to the line of sight). 4. Place the top of the screen at eye height or just below (no more than 2" below). 5. When working with documents, use an inline document holder between
the screen and keyboard. |
