Compact SK595 Membrane Keyswitch Keyboard - Detailed Specification Sheet

THIS WEB PAGE IS OBSOLETE.

It has been superceded by a more recent version.

Please click on the link below to view the most current information on this product.

CURRENT COMPACT MINI-KEYBOARD MORE INFORMATION PAGE

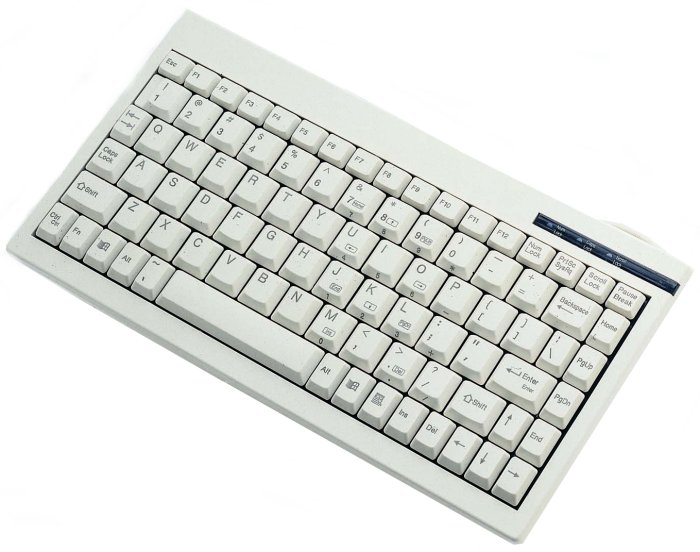

Picture of Super Mini Compact Keyboard with Embedded Numeric Keypad

Full size alpha keys, efficient layout, quiet membrane keyswitches - an economical compact keyboard.

This keyboard has an 88 key layout with an embedded numeric keypad to offer full 104 key functionality. All the letter keys are full size with a 19.05 mm / .75" key pitch (the space between the centre of neighbouring keycaps) - only some of the bottom row and right column are slightly narrower.

This keyboard is available in black, white or silver (PS/2) and white or black (USB). The French Canadian layout (click to view) is only available in black or white (USB) and white (PS/2).

Summary of How the Embedded Numeric Keypad Functions

Legending: The numeric keypad is legended on the front of the keycap which faces the bottom of the keyboard (not on the top of the keycaps). The navigation keys are legended on the top of the keycaps.

To Activate the Numeric Keypad:
Press and release the Num Lock key once (i.e. a toggle). The green light at the top right hand corner of the keyboard labeled Num Lock will light up. You must then depress the Fn (Function) key and hold it down while depressing the embedded numeric keypad keys.

To Deactivate the Numeric Keypad: Press and release the Num Lock key once (i.e. a toggle). The green light at the top right hand corner of the keyboard labeled Num Lock will turn off.

With NumLock On: The keypad will generate letters only when the Num Lock is on and the Fn (Function) key is depressed.

With NumLock Off: Most computers will boot up with Num Lock off, and in this case, the numeric keypad will perform its normal keyboarding functions. The navigation keys can be accessed by holding down the Fn (Function) key and pressing the appropriate key on the embedded numeric keypad.

WHAT THIS MEANS

To Get Numbers Shift Access (Press Fn and Hold it Down When Num Lock is on)

To Get Navigation Shift Access (Press Fn and Hold it Down When Num Lock is off)

Optional Discrete Numeric Keypad

The SKNP100 series of keypards connects via the USB port on your computer, and are available in black, white and translucent light blue (pictures at left).

If you want a programmable keypad as a productivity booster, get a Savant Numeric Keypad.

Check out our Keypads section of the product catalog for more information on Numeric Keypads.

Compatibility

PS/2 models - PC running Windows '95, '98, 98 ME, 2000, XP or Vista

USB models - PC running Windows '98, 98 ME, 2000, XP or Vista

List of Available Models

Model	Color	PS/2 or USB	English / Canadian French Bilingual

SK595W	White	PS/2	English
SK595B	Black	PS/2	English
SK595SIL	Silver	PS/2	English
SK595UW	White	USB	English
SK595UB	Black	USB	English
SK595W-CF	White	PS/2	Canadian French Bilingual
SK595UW-CF	White	USB	Canadian French Bilingual
SK595UB-CF	Black	USB	Canadian French Bilingual

Keyboard Specifications:

Keyboard Dimensions:

Width: 11.30" (287 mm)
Height: 1.14" (29 mm)
Depth (front-to-back): 5.51" (140 mm)
Weight: 450 grams

Environmental Tolerances:

Operating Temperature: 0 to 55 degrees Celsius
Storage Temperature: -20 to 65 degrees Celsius
Operating Humidity: 10% to 95% relative humidity

Electrical Specifications:

Interface: PS/2 (SK595W, SK595B, SK595SIL, SK595W-CFRE, SK595B-CFRE) or USB (SK595UW, SK595UB)
Electronic Data: +5VDC +- 5% @ 250 mA (PS/2) or 100 mA (USB)
EMI: FCC class B, CE, CNS

Key Action Specifications:

ALPHANUMERIC / FUNCTION KEYS:

Key Pitch: 19.05 mm
Switch: Membrane
Peak Force: 50 +/- 10 grams
Switch Travel: 3.0 +/- 0.3 mm
Switch Rating: 5 million cycles

EMBEDDED KEY ACTIONS:

Numeric keypad actions: 20

WARRANTY:

12 Month Limited Warranty
