Compact Financial Scissor Switch Membrane Keyboard (5100 series) - Detailed Specification Sheet

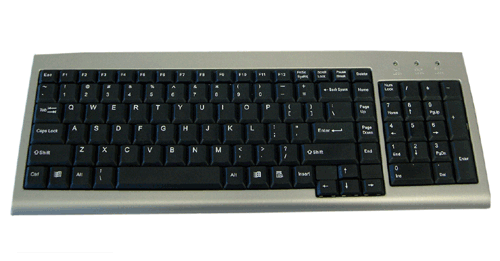

Picture of Super Mini Compact Keyboard with Embedded Numeric Keypad

Full size keys, efficient layout, quiet scissor-switch tactile membrane keyswitches - a well designed compact keyboard with numeric keypad.

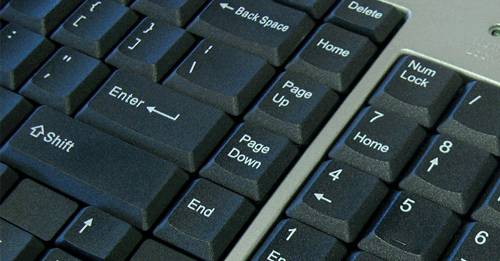

This keyboard has an 104 key layout which slightly deviates from the standard in the placement of the editing keys to achieve a narrower footprint. The scissors keycap architecture is an improvement over traditional membrane keyboards and ensures that typing is silent, stable and comfortable. All the letter keys are full size with a 19.05 mm / .75" key pitch (the space between the centre of neighbouring keycaps).

The keyboard features an incredibly low profile which helps to prevent wrist extension (dorsiflexion), as it is only 0.78" high.

The housing is an attractive titanium (silver) color.





Keyboard Specifications:

Keyboard Dimensions:

  • Width: 15.75" (400 mm)
  • Height: 0.79" (20 mm)
  • Depth (front-to-back): 5.89" (149.5 mm)
  • Weight: 800 grams

Environmental Tolerances:

  • Operating Temperature: 0 to 50 degrees Celsius
  • Storage Temperature: -20 to 65 degrees Celsius
  • Operating Humidity: 10% to 85% relative humidity

Electrical Specifications:

  • Interface: USB (SK3300UH) or (special order) PS/2 (SK3300) or
  • Electronic Data: +5VDC +- 5% @ 300 mA (PS/2) or 100 mA (USB)
  • EMI: FCC class B, CE, CNS



Key Action Specifications:

ALPHANUMERIC / FUNCTION KEYS:

  • Key Pitch: 19.05 mm
  • Switch: Scissor Switch Membrane
  • Peak Force: 55 +/- 15 grams
  • Switch Travel: 2.8 +/- 0.5 mm
  • Switch Rating: 5 million cycles

EMBEDDED KEY ACTIONS:

  • Numeric keypad actions: 20

WARRANTY:

  • 12 Month Limited Warranty
