Goldtouch Adjustable Keyboard (GTN-0033 / GTN-0077 / GTU-0033 / GTU-0077 / GQPWFRC) - Detailed Specification Sheet

The Goldtouch Adjustable Keyboard has been developed using ergonomic principles to improve the interface between you and your computer.

The Goldtouch Adjustable Ergonomic Keyboard allows you to adjust the two alphanumeric sections both horizontally and vertically to suit your individual body requirements. This helps you assume a more natural posture that is conducive to improving comfort and productivity while using your computer.

Keyboard's Features Include:

Native USB with PS/2 Adapter
Adjustment for wrist splay in the horizontal plan: 0°-30°, continuously variable
Adjustment for wrist pronation - vertical tenting 0°-30°, continuously variable
Adjustment is through a locking ball and socket latch mechanism, with a friction lock and release
Small, space saving foot-print to bring your mouse inside your ergonomic 'comfort zone'
Editing key layout for left-right work distribution
Large space bars for easy thumb use
Full size, full travel, tactile feedback keys with soft end-stop
Low noise key actuation
Embedded numeric keypad with toggle access (not shown on image above or on English layout below)

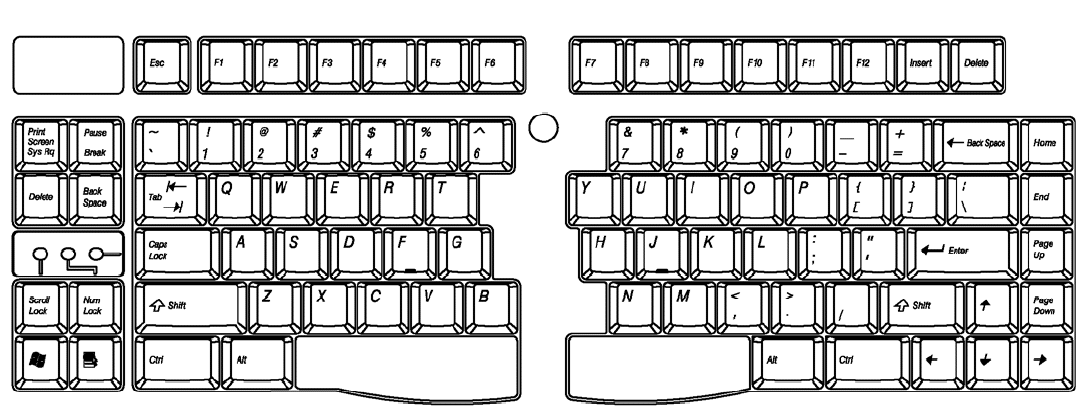

English (US) Key legending/layout (QWERTY) - CLICK HERE TO SEE THE LAYOUT
French Canadian key legending/layout (QWERTY) - Click here to see a picture (500 pixels wide), or click here to see a larger one (2000 pixels wide)

Technical Specifications

Interface: USB with PS/2 Adapter (See How to Install below)
Keys: 90 keys
Keyswitch Type: Membrane
Keyforce: 45 ± 20 grams
Keyboard Dimensions

Width: 15.25" to 18.75" (maximum splay)
Height: 1.25" (untented) to 4.5" (maximum tent)
Depth: 7.00" (unsplit)
Weight: 3.3 lbs

Available Models:

Model # Interface Color Legends Embedded Numeric Keypad?

GTN-0033 Native USB with PS/2 Adapter White English Yes

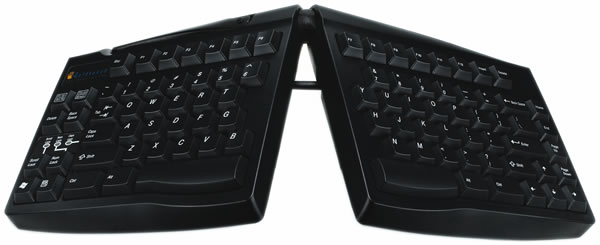

GTN-0077 Native USB with PS/2 Adapter Black English Yes

GQPWFRC Native USB with PS/2 Adapter White French Canadian Yes

GTU-0033 (not stocked) USB only White English Yes

GTU-0077 (not stocked) USB only Black English Yes

The GTN series is the GTU series with the addition of a PS/2 adapter. There is no native PS/2 version of the keyboard available.

How to Install using the USB Connector:
First, shut down your computer.
How are you set up? Determine which applies to you:

Laptop with a Docking Station:
If you are using a laptop through a Docking Station, please be sure to connect the keyboard directly into an available USB port on the computer itself the first time. Once you have followed the instructions below, you can connect the keyboard through the Docking Station for use.

Multiple computers via KVM switch:
If you are connecting two or more computers through a KVM switch, be sure to install the keyboard onto each computer that will be used before connecting it to the KVM switch. A KVM switch will not allow the drivers to install automatically; therefore it is necessary to connect the keyboard directly into each computer for proper installation the first time. Be sure that your KVM switch is for USB devices, not PS/2.

Desktop or Laptop with limited USB input ports:
Determine the number of available USB ports on your computer. You may want to add a USB Hub or port expander to accommodate multiple devices like mice, printers, keyboards, numeric keypads, PDA's, etc.

Installation:
Remove the PS/2 adapter from the end of the keyboard cord (as equipped on GTN models) so that the USB input is exposed.

Connect the keyboard directly into a USB port on the computer, power up the computer and allow Windows to detect the device and install the drivers. Do not attempt to install via hub or switch, as the keyboard must be connected directly to the computer for correct driver installation. You may see a window that tells you the hardware is installed and ready for use when it is done.

If you are connecting a Goldtouch USB numeric keypad in conjunction with a Goldtouch keyboard, be sure to connect it via USB as described above. For correct operation, the numeric keypad must be plugged directly into the computer for installation, but can be connected through a hub once the drivers have been installed.

Do not attempt the plug the keyboard into one of the USB ports located on the sides of the USB keypad, as these ports are intended only for low power devices, like mice or USB storage drives. Doing so will cause the keyboard and keypad to malfunction.
