Datadesk SmartBoard Split Keyboard - Detailed Specification Sheet

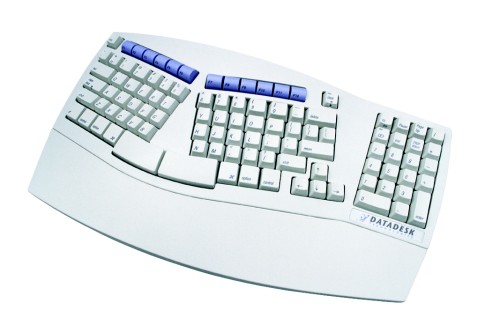

Picture of Datadesk Technologies SmartBoard Split Keyboard

SmartBoard - the Next Generation Keyboard.
Now type faster and more comfortably than ever before!

Datadesk’s new ergonomic keyboard, SmartBoard has been carefully engineered to encourage typing in the most natural and neutral position. It incorporates the patented SmartKey™ layout specially designed to help alleviate both wrist and finger stress problems.

While other ergonomic keyboards address problems associated with the wrist, they ignore the associated finger problems which can be a major contributor to typing discomfort and repetitive stress injuries. SmartBoard is not only split for the alignment of the wrists with the forearms (ulnar deviation), but its SmartKey layout aligns the columns of keys so they match the natural 'fanning' of your fingers.

Additionally, it has the error-free touch that only comes from Datadesk’s famous tactile-response key switches. Best of all, the SmartBoard still retains the standard 'QWERTY' layout, so no retraining is required. With SmartBoard, beginning typists can learn quicker and intermediate and experts can type faster with fewer mistakes than ever before!

Small Footprint / Space Saving Design

Most conventional and split keyboards are at least 21" in width. The Datadesk SmartBoard is 20% smaller than many keyboards, with a width of 18". This places it in a class closer in size to many of the adjustable keyboards. This means you’ll save valuable desktop space and it will fit any keyboard drawer.

Features for Comfort and Productivity:

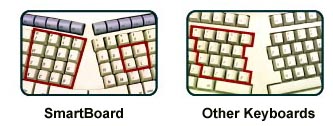

Datadesk Smartboard Fanning Comparison

Patented SmartKey™ Layout - The SmartKey™ layout perfectly positions the keys for the natural 'fanning' movements of the fingers. Open and close your fingers and the keys are right there.

Larger Keys for Outside Letters - The SmartKey™ layout has larger keytops for hard-to-reach letters (like "Q", "W", "O" and "P"). Larger sizing makes these letters easier to find and type.
High Quality Positive Feedback Mechanical Keyswitches - Tactile feedback mechanical keyswitches convey a solid feel and assurance of keyswitch activation when using the keyboard.
Wrist Rest - 2 position adjustable wrist 'leveler' for ergonomic typing positions.

Keyboard Specifications:

Keyboard Dimensions:

Width: 18.00 inches
Height: 2.25 inches
Depth (front-to-back): 9.75 inches
Weight:
Front Slope:
Lateral Tilt ("thumbs up"):
Center Separation:
Color: Mac Model - translucent bone white housing
PC model - off-white cream colored housing

MODELS OFFERED

USB (IBM/PC)
USB (Mac)

ACCESSORIES INCLUDED

Coiled 6' USB Cable
User's Manual

Key Action Specifications:

KEYS:

Full travel, tactile gold-plated mechanical keyswiches
Operating force, momentary 70 +/- 25 grams
Switch travel 3.5 +/- 0.5 mm
Life 50 million cycles
Keytops are assimilation printed for long life
Specially designed rounded key tops for the 12 Function keys
All key tops sculptured with matte finish

WARRANTY:

Non-transferable lifetime, limited to original purchaser unless special permission is obtained from the manufacturer, must deal direct with manufacturer for warranty
