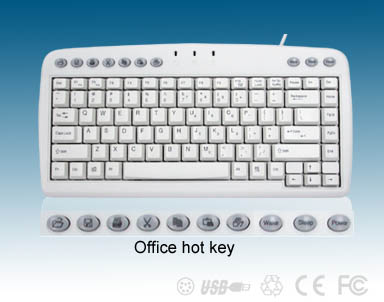

QBoard Mini Office Keyboard - Detailed Specification Sheet

This small footprint low profile keyboard is the perfect complement to the Ergo-Top or Ergo-Q Laptop Holder.

Features:

• 85/86 keys enhanced Windows layou
• 3 external ACPI power management keys and 7 external office hot keys
• Membrane tactile switch
• Laser engraved printing
• Standard PC USB with PS/2 Adapter

Specifications:

• Operating Force: 55 gm
• Travel Distance: 3.0 mm
• Compatibility: PS/2 or USB
• Power Consumption:35mA
• Contact Bounce: 15ms Max
• Contact Resistance: 500 Ohm Max
• Dimension: 336 mm x 165 mm x 32 mm
• Safety: FCC,CE available
• Cable Length: 140 mm

Environmental Condition:

• Operating Temperature: 10~40°C
• Storage Temperature: -40~60°C
• Humidity: 5%~95%RH.Non-Condensing multimedia driver included
