Atlas Standard Book Holder

Models AT-STD-BIR, AT-STD-BLK, AT-STD-CHE, AT-STD-MAH

Dainoff Designs

CONTENTS:

Product Description

Atlas Standard book holder showing page stopper usage

The Atlas Standard is the book holder that will do the most for the most people:

Ergonomic Benefits

Gallery

Adjustable viewing height

Atlas Standard book holder animation showing all shelf heights

Adjustable viewing angle

Atlas Standard book holder animation showing all shelf angles

Colors & finishes

Atlas Standard book holder animation showing all colors

Wide line guide

Atlas Standard book holder with papers and wide line guide

Narrow line guide

Atlas Standard book holder with book and narrow line guide

Short document

Atlas Standard book holder with short document and narrow line guide

Stapled document

Atlas Standard book holder showing usage with stapled pages

Book

Atlas Standard book holder showing page stopper usage

Spring-loaded clip

Atlas Standard book holder showing spring-loaded clip

Sturdy construction

Atlas Standard book holder with 27 lbs of weights

Features

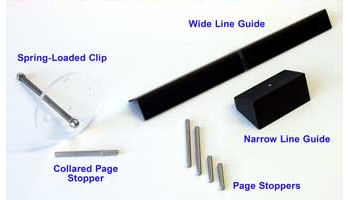

Accessories

Atlas Standard book holder accessories

Specifications

Height adjustment 10 positions with 1.25" spacing for a total adjustment range of 11.25"
Angle adjustment 11 positions for a total adjustment range of 49°: 13°, 23°, 30°, 37°, 42°, 47°, 51°, 55°, 57°, 60°, 62°
(from vertical, ±1°; line guide may slip at angles over 50°)
Footprint 11" x 11"
Overall height 8.25" to 15.25"
Back 11" wide x 14.5" high x 0.5" thick (will hold documents larger than back dimensions)
Shelf 14.5" wide x 3" deep x 0.5" thick, 26 page stopper positions (will hold documents larger than shelf dimensions)
Shelf raised page catchers 6 rubber 'feet', in 3 columns of 2
Shelf attachment to back 2 stainless steel dowels
Weight 5.9 lbs
Capacity Over 25 lbs
Materials Vinyl coated MDF
Page stoppers Metal dowels, 3/16" diameter, 2 short (1.25"-1.5") & 2 long (2.5")
Reversible line guide 1 angle shape, 11" wide; 1 block shape, 3" wide
Spring-loaded clip 2.25" Maximum clamping depth, 3" disc diameter, transparent disc with 4 rubber feet;
includes a 3/16" diameter 2.5" stainless steel dowel with rubber band collar for use on back

Options

Colour Atlas Standard birch finish sample Atlas Standard cherry finish sample Atlas Standard mahogany finish sample Atlas Standard black finish sample
No accessories Order without the reversible line guide and spring-loaded clip (book holder always includes page stoppers)
