Goldtouch Adjustable Keyboard

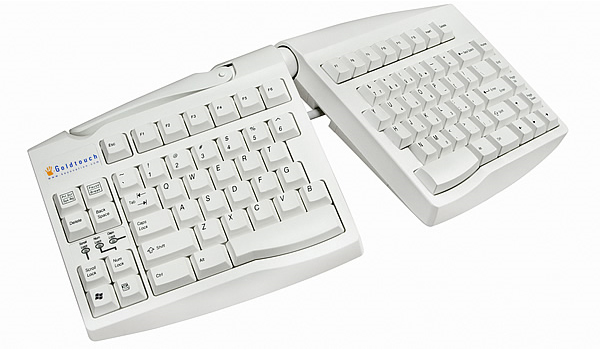

The Goldtouch Adjustable Keyboard by Key Ovation is designed to help users prevent or address soft tissue injuries caused by pronation, ulnar deviation, or both. The left and right halves of the keyboard are connected by a simple ball joint mechanism and can be configured to tent upwards, allowing users to type with their palms slightly facing each other at an anatomically neutral angle; to splay outwards, allowing users to keep the hands, wrists and shoulders comfortably straight as they type; or to tent and splay. The compact design, achieved by the elimination of a built-in numeric keypad, helps to prevent strain in the shoulder and neck muscles caused by overreaching for the mouse.

Caution: Those who use the Goldtouch Numeric Keypad with a Goldtouch Adjustable Keyboard should be certain to plug the Keyboard directly into the computer, or into an external USB hub. Connecting a keyboard to the computer via any of the ports on the Goldtouch Numeric Keypad can cause both devices to malfunction.

Note: See Usage Tips on the Detailed Specifications page for notes on how the newer version of this keyboard, the Goldtouch V2 Adjustable Keyboard, differs from this earlier model.

• Locking Ball and Socket Joint: Located at the back of the keyboard in the centre, this joint connects the left and right halves of the Goldtouch Adjustable Keyboard. This mechanism allows the two halves to be tented upwards to address pronation, splayed outward to address ulnar deviation, or splayed and tented to address both risk factors. The degree of both tent and splay can easily be configured or reconfigured by different users at the same workstation. A sturdy lever locks the chosen configuration into place.

  Note: Some precise adjustments may be necessary to ensure the two halves are symmetrical before the lock is secured.

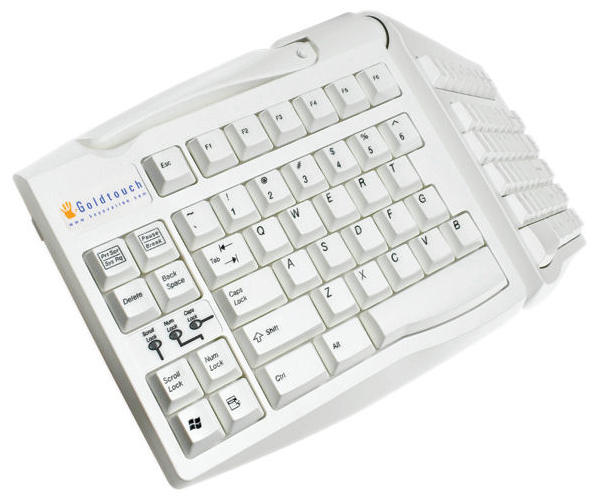

• Variable Tenting: Continuously variable tenting up to 30° allows users to experiment with a variety of tenting heights before choosing the most beneficial and comfortable.
• Variable Splay: The Goldtouch Adjustable Keyboard can be splayed horizontally from 0° to 30° to allow users to become accustomed gradually to the configuration, and to choose the degree of splay most suited to their body type.
• Adjustable Incline: When not tented, the Goldtouch V2 Adjustable Keyboard has a slight positive incline. To create the recommended negative incline, two feet beneath the space bars can be deployed, along with the Goldtouch Gel Wrist Rests (GT&-0017) or the Goldtouch SlimLine Wrist Rest (GT8-0017) to prevent inadvertent wrist extension that could increase the risk of injury to the wrists.
• Compact Design: At only 15.25” wide, the Goldtouch Adjustable Keyboard allows users to bring the mouse into the Comfort Zone, and makes efficient use of desktop space.
• Embedded Numeric Keypad: An embedded numeric keypad is built into the right side of the keyboard for those who need more frequent access to numbers.
• Load-Balancing: The editing keys are evenly distributed to balance the workload on the hands and fingers. The Home, End, Page Up and Page Down keys are on the left; the Delete, Print Screen, Pause/Break, and Backspace keys are on the right.
• Full Travel, Tactile Key Switches: The membrane keys of the Goldtouch Adjustable Keyboard are full size, full travel and tactile, for increased comfort and typing efficiency.

• Connecting Via PS/2:

  1. Be sure the computer is powered off.
  2. Connect the PS/2 adapter to the USB connector on the end of the keyboard cord.
  3. Plug the PS/2 adapter into the PS/2 port in the computer. The port will be indicated either by a keyboard icon, or by a keyboard/mouse icon. (Note that the majority of recent model computers have only a single PS/2 port.
  4. Power up the computer. The keyboard will be ready for use.

• Width: 15.25" (38.7 cm)
• Depth (front to back): 7.00" (17.8 cm)
• Height: 1.16" (2.9 cm)
• Weight: 3.3 lbs (1.5 kg)
• Key Switch Type: Tactile Membrane
• Key Activation Force: 50 ± 20 grams
• Key Travel Distance: 3.5 mm ± 0.5 mm
• Maximum Splay: 30°
• Maximum Tenting: 30° or 4.5” (11.4 cm)
• Compatibility: PC
• Interface: USB (includes USB to PS/2 Adapter)
• Warranty: 1 Year (See exceptions below)
  GTU-0077-FLAT and GTN-0077-FLAT (NO WARRANTY ON THE TENTING MECHANISM), Keyboard function supported by 30 Day Warranty.
• Package Contents: Goldtouch Adjustable Keyboard

• Below are some of the ways in which the most recent model of this keyboard, the Goldtouch V2 Adjustable Keyboard (GTN-0099, GTU-0088, GTN99-FC) differs from this earlier model (GTU-0077):


  • Larger footprint. The Goldtouch V2 is 16.25” wide; this earlier model is 15.25" wide.
  • Improved stability when tented. The Goldtouch V2 includes rubberized edges that are not present on this earlier model.
  • Reduced key force. The key force on the V2 is rated at 39 ± 3 grams, the earlier model was rated at 50 ± 20 grams.
  • Modified layout. The Shift and Ctrl keys on the right module of the V2, along with the Caps Lock key, have been reduced in size. The space bars on the V2 are narrower and are no longer curved as they are on this earlier model. The Insert and Delete keys have been slightly increased in size, and have been moved to the upper right corner of the keyboard.
  • New Hot Keys. The Goldtouch V2 Adjustable Keyboard includes new hot keys for accessing multimedia controls and the Internet.
