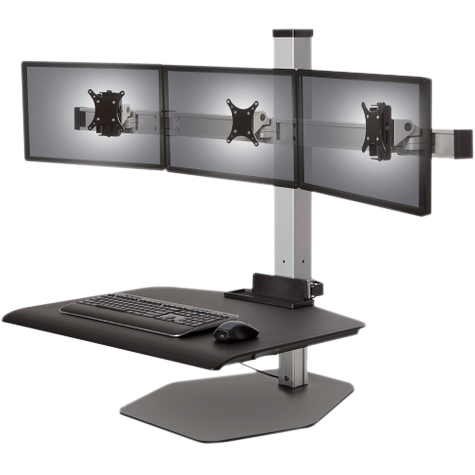

Winston Workstation Triple

The Winston Workstation Triple from Innovative is a height-adjustable sit-stand add-on unit that converts almost any sit-only desk into a sit-stand desk. This all-in-one unit will raise a keyboard, mouse, or other desk accessories, including three monitors, to whatever standing height needed (up to 17.0" above desk height for the keyboard platform; up to 40.0" above desk height to the middle of the monitor). This model can accommodate three monitors up to 24" wide each.

The keyboard platform (30" W x 18" D) and monitor mount (100 x 100 mm VESA compatible) move as one unit for height adjustment* to ensure that monitors are appropriately positioned, whether sitting or standing. The Winston uses a heavy metal base to stabilize the unit so that it can be positioned anywhere on the desk surface without having to clamp or bolt it to the desk. Adjusting the height of the keyboard platform is as easy as pressing a button located on the right side of the keyboard platform.

With appropriate accessories, the triple unit can be upgraded to a quad unit or extended triple unit (for wider monitor sizes).

NOTE: The monitor height relative to the keyboard platform is set when the unit is assembled and is not intended to be adjusted on the fly while in use. It can be readjusted by disassembling the monitor clamp and reassembling at whatever height is needed.

• Free Standing (Drill and Clamp-Free): The Winston Workstation Triple is ideal for organizations that do not allow drilling into the desk, or clamping onto its edge. A heavy solid steel base allows the unit to be positioned on a desk top without creating a tipping hazard. Felt pads underneath the base prevent scuffing or scratching of the desktop.
• Triple Monitor Mounting: The Winston Workstation Triple allows three monitors to be mounted on a single crossbar. The monitors can be positioned anywhere along the crossbar for optimal viewing. Monitors must be VESA compatible with a hole pattern of 75 x 75 or 100 x 100 millimeters, and also less that 24" widescreen (not diagonally) and up to 10 lbs each (not including any monitor stand).
• Side Release Lever Mechanism: For effortlessly moving the keyboard platform up and down, a side release lever is positioned on the right hand side of the platform which, when depressed, releases the gas cylinder lock. While still holding the level depressed, both hands on either side of the platform can be used to lift it up or push it down to the desired height. Simply stop depressing the release lever to lock the platform into a fixed height position.

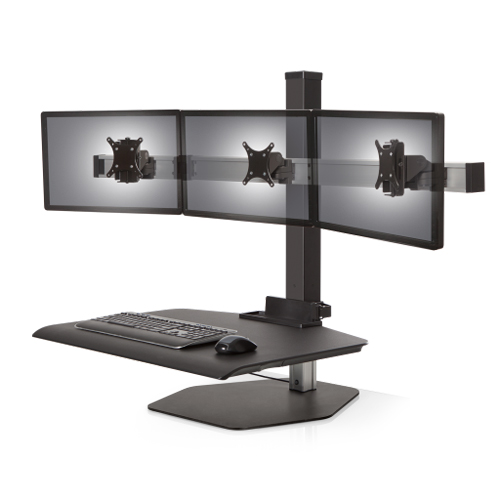

• Multiple Colour Options: All Winston Workstation Triple units are available in two colours: Black and Silver. Note: Only the Column is affected by this colour choice; the platform is always black and the cross bar is always silver.

• Keyboard Platform Height: 1.3" (min.) to 18.3" (max.) above desktop
• Keyboard Platform Range: 17"

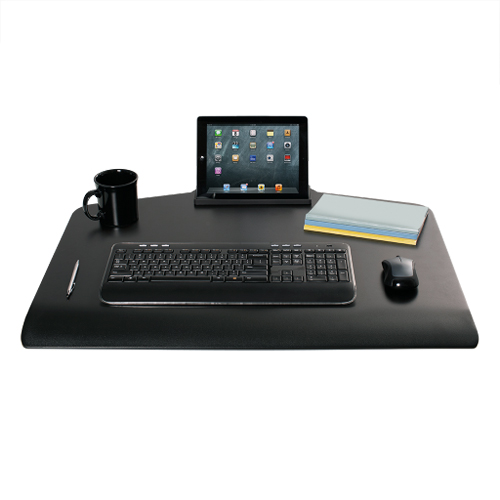

• Keyboard Platform Dimensions: 30.0" wide x 18.0" deep
• Monitor Mount: Tilter-type VESA compatible (100 mm x 100 mm hole pattern) with 200° tilt and 360° pivot (landscape to portrait)
• Monitor Height: Up to 17" from keyboard platform to middle of monitor
• Cable Management: Yes (cables clipped to column)
• Free Standing Base Dimensions: 20.7" wide x 22" deep
• Weight Ranges by Model:


  WNST-3-104	15 – 36 lbs (6.8 - 16.3 kg)
  WNST-3-124	15 – 36 lbs (6.8 - 16.3 kg)


  Note: These weight ranges should include monitor weight plus anything placed on the keyboard platform
• Monitor Sizes: Up to 24" each
• Warranty: 5 year warranty on all parts
• Package Contents: Winston Workstation Triple, Assembly Hardware, Assembly Instructions

• To adjust the keyboard platform downward with ease, apply a steady force at both sides of the platform using your hands. If you get initial resistance, place your free hand (not the hand pressing the release lever) towards the back of the platform and do the same, so that you apply more force forward. If this, too, is a problem, ask someone else for assistance.
• Move between standing and sitting on a regular basis. If you are just starting out with a sit-stand desk, maintain yourself in the standing position for brief intervals - don't try to stand for extended periods until your body has adjusted and become comfortable.
• If you find standing tiring, consider purchasing a quality anti-fatigue mat which can significantly increase your comfort by enabling your feet and legs to shift slightly while you work.
• Consider a "leaning" style of seat rather than going back to the standard office chair. Using a seat such as this can ease the load on the feet and legs while still providing most of the benefits of the fully upright standing posture.
