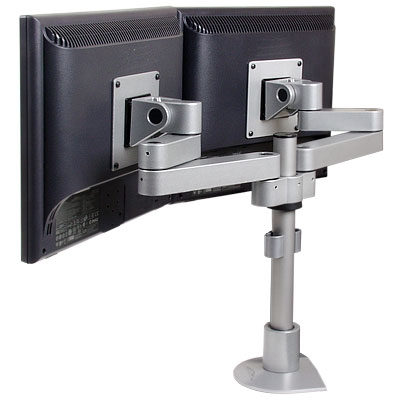

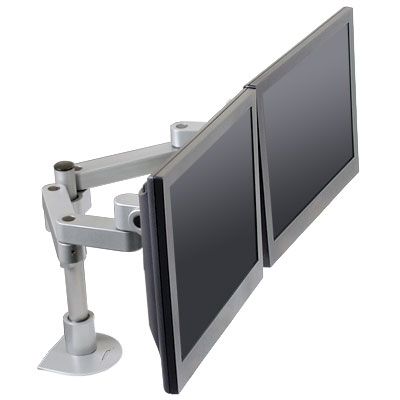

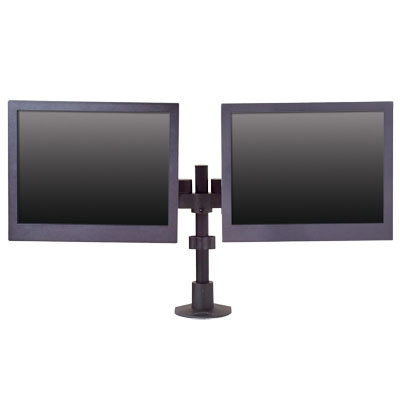

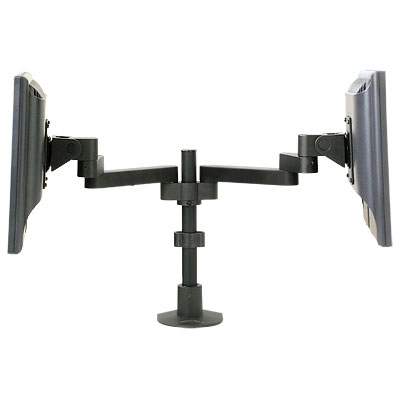

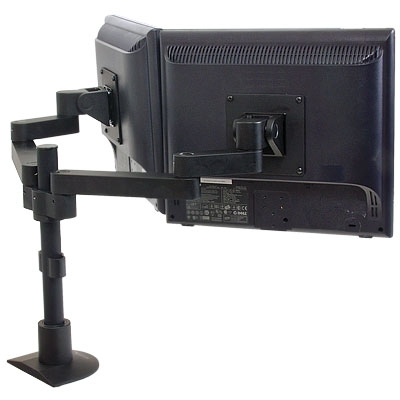

Side By Side Dual LCD Mount

Mount 2 flat panels side by side with this space-saving mount. Position each monitor independently of the other, and quickly adjust pivot and placement as your needs change. Set height at any desired position along the included 12" (30.5 cm) pole. The D-28 model provides a 28" (71.1 cm) pole and will accommodate 4 LCD monitors (creating a 2x2 grid).

A Universal Mount with 6 mounting options is included. This arm provides 200° of rotation at two pivot points and its space saving design allows approximately 3" (7.6 cm) of space behind the monitor. A friction control system provides smooth adjustment while adjusting the position of the arm.

Weight capacity is up to 22 lbs (9.98 kg) per arm and each monitor can adjust independently. The arm is VESA-monitor compatible - 75mm & 100mm VESA adapters included.

Click here to view the accessories.

• Compact storage: Space-saving design allows approximately 3" (7.6 cm) of space behind the monitor.
• Effortless movement: Friction control system provides smoot adjustment while adjusting the position of the arm. The user is able to adjust each monitor independently.
• Mounting options: The Universal Flex Mount which comes with this arm can be installed in 6 different configurations (click here to see an animation of how each of the mounts work):
  • Through the Desk - Bolt through your desk. Requires a 3/8" hole.
  • Desk Edge (Using Clamp) - Clamps to the edge of your desk, no drilling required.
  • Wall Mount - This heavy-duty wall mount will provide rock-solid security for your arm and monitor. Mounts vertically to your wall surface. Not recommended for dry wall, sheet rock or plaster surfaces.
  • Reverse Wall Mount - An alternative mounting method
  • Side Bolt (Panel System Rear Edge) - Mount to the solid side of a desk
  • Grommet Hole Clamp Mount - For Grommets 2" and larger
  • If needed, optional additional Pole and Slatwall mounts are available as accessories for an additional cost.
  This single mount will handle most mounting scenarios. Best of all, if you decide to change the way the arm is mounted several months after purchase, there is nothing more to buy - simply reconfigure your Universal FlexMount. The Universal FlexMount is also ideal for special mounting scenarios such as thick desk edges, desk edges with longer trim and surfaces with a small lip. Accessories are available to mount to financial trading slatwall and slotted panel furniture system.
• Range of movement: Click here to view an excellent comprehensive animation of the range of movement and cable management of this product.

• Vertical range: 2 LCDs: 12" (30.5 cm)
  4 LCDs: 28" (71.1 cm)
• Horizontal range: 14" (35.6 cm)
• Rotation: 200° at 2 pivot points (per arm)
• Weight capacity: Up to 22 lbs (9.98 kg) per arm
• Colour: Black or silver
• Monitor compatibility: VESA-monitor compatible - 75 mm and 100 mm VESA adapters included.
• Instructions: Click here to review the instruction booklet for this product.
• Warranty: 5 years
