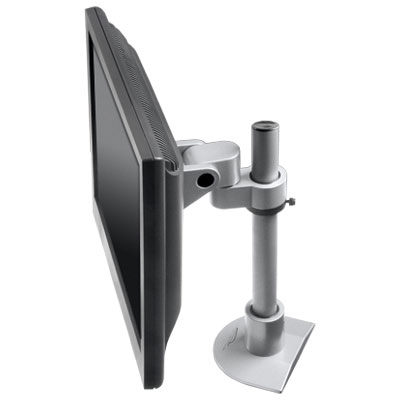

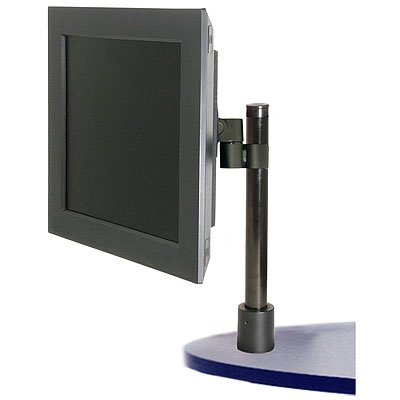

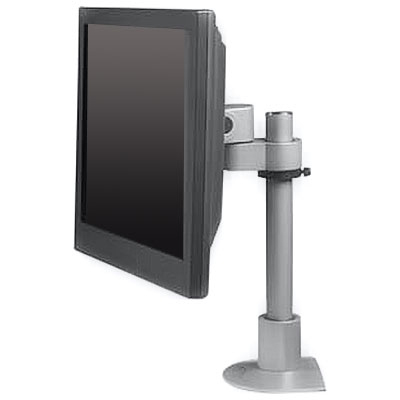

Pivot and Tilt LCD Mount with Pole

Mount one or two LCD monitors on the supplied pole with this space-saving mount. Position each monitor independently of the other, and quickly adjust pivot and tilt as your needs change. Set height at any desired position along the included 12" (30.5 cm) or 28" (71.1 cm) pole.

A Universal Mount with 6 mounting options is included. Weight capacity is up to 45 lbs (20.4 kg) per arm and each monitor can adjust independently. The arm is VESA-monitor compatible - 75 mm & 100 mm VESA adapters included.

• Compact deployment: Never takes up more than a couple inches of desktop space.
• Effortless movement: Friction control system provides smooth adjustment while adjusting the tilt of the monitor

• Vertical range: (Collar slides along pole when a set screw is adjusted.)
  Single: 12" (30.5 cm)
  Dual: 28" (71.1 cm)
• Horizontal range: 0" (0 cm)
• Rotation: 200° of rotation at 2 pivot points.
• Weight capacity: 40 lbs (18.1 kg) per arm
• Available colours: Black or silver
• Monitor compatibility: VESA-monitor compatible - 75 mm and 100 mm VESA adapters included.
• Mounting Options:
  • The Universal Flex Mount which comes with this arm can be installed in 6 different configurations (click here to see an animation of how each of the mounts work):
    • Through the Desk - Bolt through your desk. Requires a 3/8" hole.
    • Desk Edge (Using Clamp) - Clamps to the edge of your desk, no drilling required.
    • Wall Mount - This heavy-duty wall mount will provide rock-solid security for your arm and monitor. Mounts vertically to your wall surface. Not recommended for dry wall, sheet rock or plaster surfaces.
    • Reverse Wall Mount - An alternative mounting method
    • Side Bolt (Panel System Rear Edge) - Mount to the solid side of a desk
    • Grommet Hole Clamp Mount - For Grommets 2" and larger
  • Slatwall Mount: Monitor arm may be quickly and securely attached directly to your slatwall. Cables can be routed between the mount and the slatwall, helping to keep them neat and out of the way.
