Bild Configurable Multi-Monitor Mount Systemby Innovative |
| Ergonomic Benefits Features Additional Resources Usage Tips | | Product Summary |
|---|
The Bild is a multi-monitor mounting system that can be easily configured to meet a wide range of applications. Starting with a dual mount system, users can build almost any multi-monitor system by adding just the components that are needed, making the Bild an easily modifiable mounting option.
The design of the Bild also makes it easy to add, adjust, or remove monitors. Additional beams can be added to the base unit and positioned flat or in an arch for the best viewing angle. Sliding mount cups allow easy positioning of monitors. Also, an optional height adjustable base is available for multi-user workstations where users of different heights can set the monitors at their own optimal height.
Desk mounting options include desk clamp, through mount, or rail mount. Beam mounting options include pole mount, static column mount, or motorized column mount. Available in silver or black.
The product components for a Dual Bild with through mount and static column in black are as follows: BILD-2-NM-104 (x1), 8480-16.5-TM-603 (x1).
The product components for a Triple Bild with through mount and static column in black are as follows: BILD-3-NM-104 (x1), 8480-16.5-TM-603 (x1).
The product components for a Quad Bild with through mount and static column in black are as follows: BILD-2-NM-104 (x1), 8470-20-104 (x2), 8477-HQ-104 (x2), 8480-16.5-TM-603 (x1).
For other mount configurations, please call. | | Images (Click on any thumbnail to view larger image) |
|---|

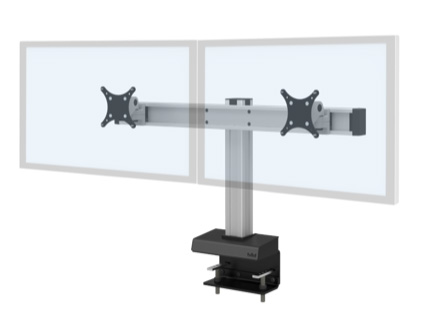

Bild Dual Configuration with Clamp Mount (Front View)
|

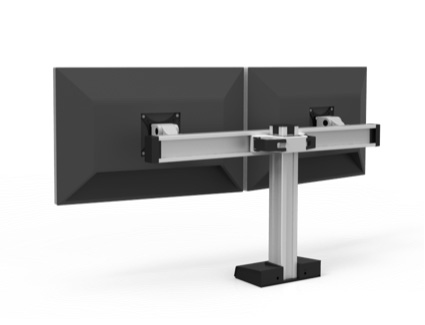

Bild Dual Configuration with Clamp Mount (Rear View)
|

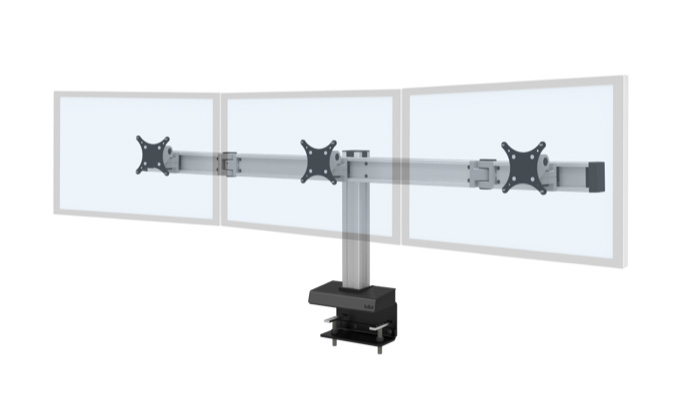

Bild Triple Configuration with Clamp Mount (Front View)
|

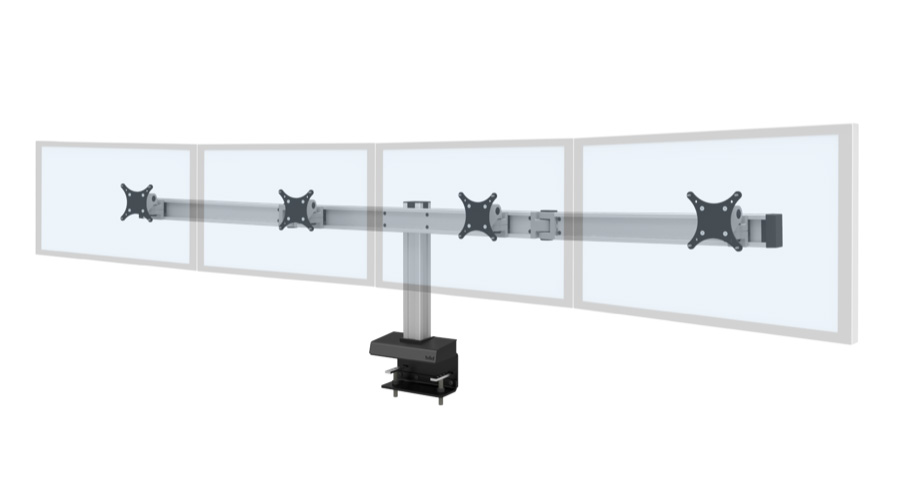

Bild Quad Configuration with Clamp Mount (Front View)
|

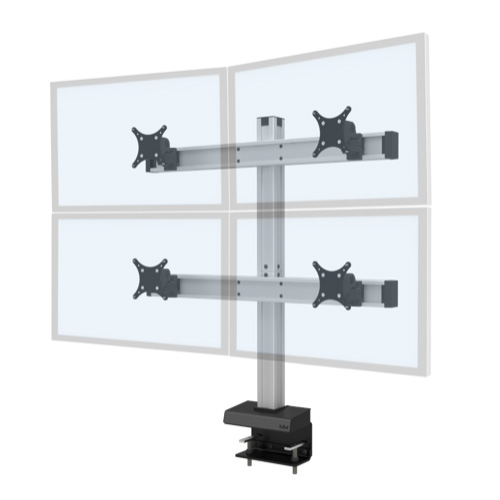

Bild 2-over-2 Configuration with Clamp Mount (Front View)
|

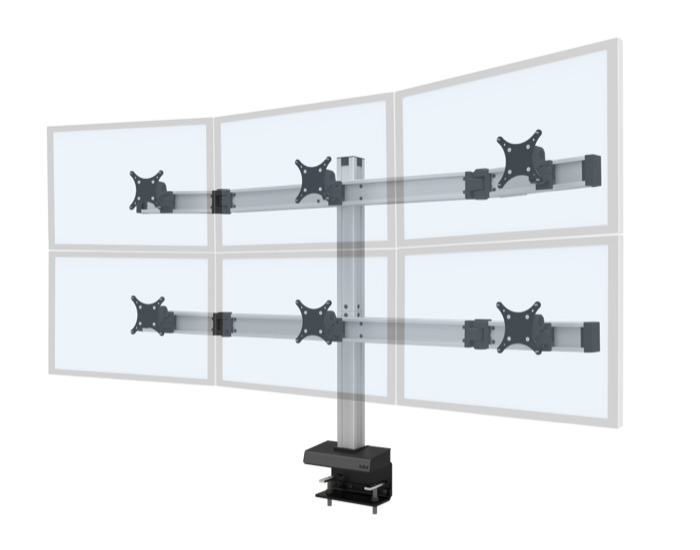

Bild 3-over-3 Configuration with Clamp Mount (Front View)
|

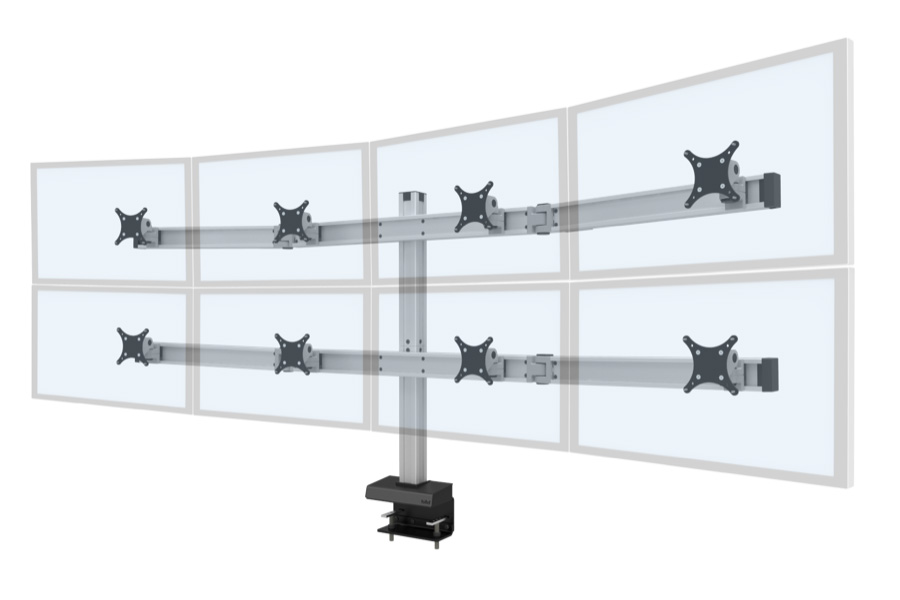

Bild 4-over-4 Configuration with Clamp Mount (Front View)
|

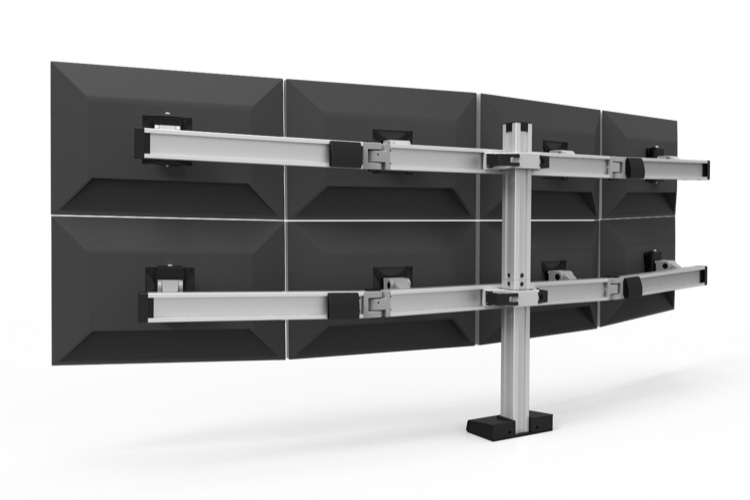

Bild 4-over-4 Configuration with Clamp Mount (Rear View)
|

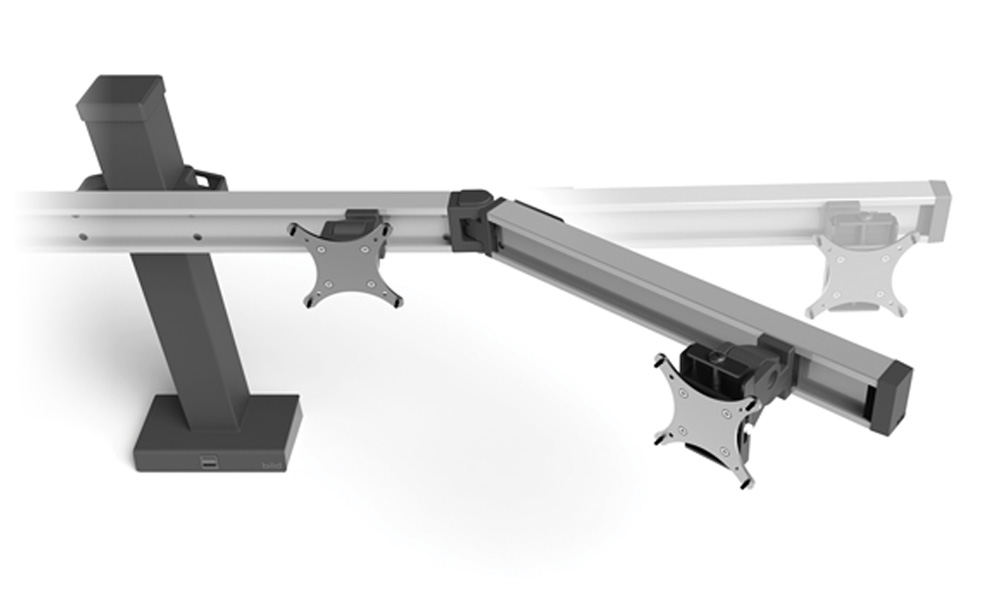

Bild Extension Arm with Tilters (Angled)
|

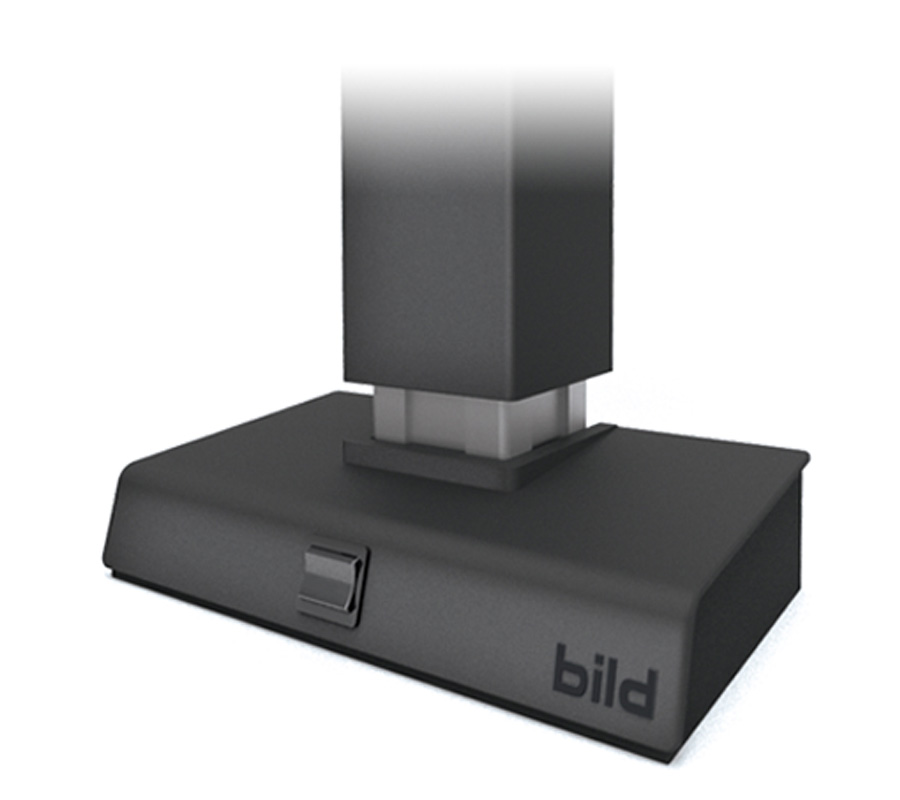

Bild Motorized Base with Switch
|
| | Technical Specifications |
|---|
- Weight Capacity for Static Column: Up to 30 lbs (13.6 kg) per monitor
- Weight Capacity for Motorized Column: Up to 30 lbs (13.6 kg) per monitor (Dual, Triple, Quad, 2-over-2); 25 lbs (11.4 kg) per monitor (3-over-3); 20 lbs (9.0 kg) per monitor (4-over-4)
- Desk Mounting Options: Clamp Mount, Through Mount, Rail Mount
- Beam Mounting Options: Pole, Column, or Motorized Column; 10" (25 cm) range of motion
- Tiers: Single or Dual
- Colours: Black or Silver
- Monitor Pivot: Landscape to Portrait
- Monitor Tilt: Up to 200°
- Cable Management: Cable clips for beam and column
- Warranty: 10 years (1 year on Bild motorized column)
- Package Contents: Bild Configurable Multi-Monitor Mount System, Instruction Sheet
| | Models |
|---|
| For pricing, availability or to order this product, visit our online store. | | Model # | Description |
|---|
| BILD-2-CM-104 | Bild Dual Monitor Mount with Clamp Mount, Black | | BILD-2-NM-104 | Bild Dual Monitor Mount with No Mount, No Column, Black | | BILD-3-NM-104 | Bild Triple Monitor Mount with No Mount, No Column, Black |
| | Accessories |
|---|
| Model # | Description |
|---|
| 8470-20-104 | 20" (50 cm) Extension Beam with Hinges for Bild | | 8477-HQ-104 | Bild Tilter Cup with 8459 Quick Release Spring Tilter | | 8480-16.5-TM-603 | Static 16.5" Column with Through Mount Accessory | | 8480-33-TM-603 | Static 33" Column (for 2 Tiers) with Through Mount Accessory | | 8471-S-US-TM-104 | Single Tier Height Adjust Column with Through Mount & US Power Supply, Black | | 8471-D-US-TM-104 | Dual Tier Height Adjust Column with Through Mount & US Power Supply, Black | | 8472-603 | Clamp Mount Accessory, Black | | 8473-603 | Height Adjustable VESA Accessory, Black |
|
|
| |
