| Ergonomic Benefits Features Usage Tips Accessories |
| Product Summary |
|---|
The Adjustable POS Through-Counter Mount from Innovative is a durable mounting system for monitors, signature capture devices, and kiosks. Ideal for retail use, the mount secures the monitor firmly to the counter and allows you to pivot and turn it to any desired angle - and lock it in position if necessary. The mount supports monitors up to 25 lbs in weight and has an adjustable height of 7" - 36" determined by the position of the tube (which runs through the counter in the mount). Also, it has internal cable routing, so that cables pass through the counter in the tube. The mounting mechanism is VESA-monitor compatible - 75 mm & 100 mm adapters included.
NOTE: The Through Mount requires you to drill 4 screws into the mounting surface as opposed to a single central bolt. Bolt Mounting Pattern (9189-24 + 9189-12 are Special Order) |
| Images (Click on any thumbnail to view larger image) |
|---|

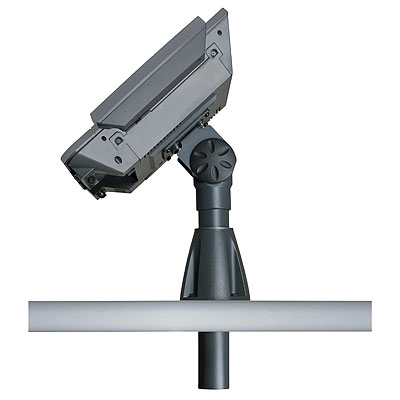

Adjustable POS Through-Counter Mount
|

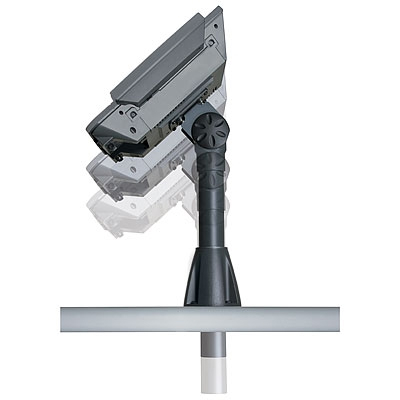

Adjustable POS Through-Counter Mount - height range
|

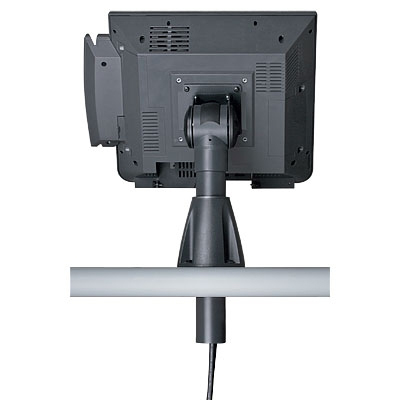

Adjustable POS Through-Counter Mount - back view
|
|
| Additional Resources |
|---|
- Adjustable POS Through-Counter Mount Specifications: PDF
|
| Technical Specifications |
|---|
- Range of vertical adjustment: 9189-36: 7" to 36"
(17.8 cm to 91.4 cm)
9189-24: 7" to 24"
(17.8 cm to 61.0 cm)
9189-12: 7" to 12"
(17.8 cm to 30.5 cm) - Max allowable LCD weight: 25 lbs (11.3 kg)
- Cable management: Internal (hollow tube)
- Mount: Bolts through counter top
- Mounting plates: VESA 75 mm and 100 mm
mounting plates included
|
| Models |
|---|
| For pricing, availability or to order this product, visit our online store. |
| Model # | Description |
|---|
| 9189-36-162 | Adjustable from 7" to 36", Dark Grey | | 9189-24-162 | Adjustable from 7" to 24", Dark Grey | | 9189-12-162 | Adjustable from 7" to 12", Dark Grey |
|
