7Flex Dual

by Innovative

Additional Resources Accessories

The 7Flex Dual is an affordable, reliable gas-cylinder articulating dual monitor solution which provides independent effortless adjustment of both monitors through the full range of motion - in all three dimensions. It offers superior adjustability when compared with many other entry-level dual LCD arms: 16" of vertical range; 24" of horizontal reach; 360° of rotation at 3 joints; 200° of monitor tilt; and monitor pivot from portrait to landscape. Since each monitor has its own articulating arm, monitors of different size or weight are usually not a problem. Each arm accommodates monitors between 5 and 17 pounds in weight. The 7Flex Dual comes with a FLEXmount which includes 4 different mounting configurations: desk clamp, through desk, desk side, and grommet hole clamp mount. The 7Flex Dual can fold up to occupy 3" of space, will work with any VESA compatible monitor, and includes cable clips to improve cable management. The arm is a proven, durable design manufactured using die cast aluminum, and comes with a 10 year warranty.

Note: When mounted on the desktop, the maximum height to the centre of the monitors is 18.7”.

Ergonomic Benefits

Reduces the Risk of Neck Injury - A primary risk factor for injury in an office setting is an improperly positioned monitor. A good articulating monitor arm will help eliminate that problem by allowing height adjustment for the monitor relative to the desk surface on which the keyboard and mouse are situated. The 7Flex Monitor Arm provides 16" of vertical adjustment and 24" of horizontal, making it easier to adjust the monitor height to a position that is optimal for the user while sitting.
SPECIAL NOTE FOR USERS WITH MULTIFOCAL OR PROGRESSIVE LENSES: As users with multifocal lenses rely on the lower portion of their glasses for "near" vision, they generally require the monitor to be positioned at a much lower height vertically than users with no glasses or who only have single-vision lenses. Failing to address this will force the user into an uncomfortable extension at the neck, as they tilt their head back in order to be able to view out of the lower portion of their corrective eyewear. Multifocal users may be able to position their monitors far enough away for best viewing at the intermediate range. Doing so can mitigate the neck extension as it may eliminate the need to tilt the head.

Movement is Effortless - The 7Flex uses a gas spring to counterbalance the effects of gravity on the monitor, allowing the user to adjust it both upwards and downwards using their fingertips. This ease of adjustment (regardless of whether the monitor is fully extended or contracted) removes a potential obstacle to users who would otherwise be unwilling to adjust their monitor as needed. This technology is superior to mechanical spring mechanisms which cannot provide consistent linear counterbalance through the full range of the arm.

Sit-Stand Workstation Adaptable - There is an accessory which can convert the 7Flex arm into a sit-stand arm (normally used in conjunction with a sit-stand keyboard tray). If you need an additional 6" of height, this accessory (listed below under Accessories) will raise the mounting point of the 7Flex so that it can be used at both sitting and standing heights. For 6" of additional height, use the 6" extender pole (8171-6-104) that fits into the existing dual mount.

Allows Multiple Individuals to Share Information Easily - In some office environments workers need to share screen information with clients and/or co-workers, but this can be awkward or inconvenient when the monitor is on a stand and cannot easily be moved or oriented towards another person, even one sitting at the same desk. An articulating arm can easily solve this problem because the screen can be swiveled to face even someone on the opposite side of a desk when they need to see the screen's contents.

Allows Correct Alignment of Monitors - Often users will have two different models of monitor in their workstation. If mounted on a single crossbar, or if the monitors have different VESA mount locations on them, this will result in monitors being vertically misaligned. The independent vertical adjustment of the 7Flex Dual provides maximum freedom in aligning their monitors as desired.

Increases Desktop Space - By raising the monitor above the worksurface, space on the desktop is made available for storage and other office accessories (phones, calculators, etc.).

Optimizes the Viewing Angle - Monitors are best viewed when the face of the monitor is parallel to the face of the user. The ideal angle of the monitor is not necessarily perpendicular to the desk in all cases, however, since many users feel more comfortable slightly tilting their head forward, especially when working in a standing position. Note: As the head tilts forward, there is typically increased weight and load placed on the muscles in the neck, and as such any flexion should be limited to no more than 10 degrees.
SPECIAL NOTE FOR USERS WITH BIFOCALS: As users with bifocals can only see clearly through the lower portion of their glasses, they require the monitor to be positioned at a much lower height vertically than users with no bifocal glasses. An articulating arm like the 7Flex gives more options for positioning the monitor not only lower but at the right distance and angle to make viewing through bifocals more comfortable. Failing to address the particular requirements of bifocal wearers will force those with bifocals into an uncomfortable extension at the neck, as they tilt their head back in order to be able to view out of the lower half of their corrective eyewear.

Eliminates Glare - Adjusting the vertical and horizontal angle of the monitor will allow users to eliminate glare when viewing the monitor.

Helps Maintain Good Posture When Seated - When a monitor is too low or high, the user may choose to adjust the position of their torso instead of or in addition to their neck in an attempt to accommodate incorrect monitor height. This will often result in the user leaning forward, shifting them out of the ideal “S” posture in the spine, and losing any potential lumbar support that their chair provides. The correct monitor height may prevent this risk factor from arising.

Accommodates Working in Different Postures - Movement is important! When a worker changes their posture between standing, lean-into, sitting, or leaning back in their chair the optimum position for their monitor(s) will change accordingly. The wide range of movement which the 7-Flex provides will accommodate these new parameters, enabling the user to correctly position their monitors for optimum viewing from any chosen posture.

Features

Gas Spring: The gas cylinder completely counterbalances the weight of each LCD monitor and arm, counteracting the effects of gravity.
Vertical Range: The 7Flex offers a full 16" of vertical range, which is sufficient (if mounted at the ideal height) to provide an appropriate range for sit-stand adjustment for individuals up to 5'8" tall. If the arm is being mounted on a desktop for a sit-stand workstation, it will require some kind of extension mount to elevate the arm to the ideal height, such as 6” extension poles. See the Table of Sit-Stand Heights.
Horizontal Extension: The 7Flex provides 24" of lateral reach, allowing the monitor to be brought to the front edge of the desk when clamped at the back of a standard 24” deep desk.
Moving Two Monitors Independently: The 7Flex Dual has two articulating arms, one for each monitor, so that both can be independently adjusted from one another. This is desirable, for example, when you have two monitors of different dimensions and you would like to line them up side-by-side in a particular way. Or you may want both monitors to be angled at a greater degree than would be possible for monitors attached to a crossbar. In either case, separately articulating monitor arms give the greatest flexibility when it comes to positioning monitors exactly as needed. For those who don't need independently adjustable arms, consider the 7500 Wing.
Monitor Tilter: The monitor tilter mechanism provides 200° of tilt adjustment at the “head” or “wrist” of the arm.
Monitor Rotation: The monitor tilter mechanism provides 360° of monitor rotation allowing rotation from landscape to portrait orientation, even upside down (if required).
Arm Rotates at 3 Joints: The 7Flex provides 360° of rotation at three joints, the base or “shoulder”, the hinge or “elbow” and the end or “wrist”. This yields almost limitless flexibility and articulating capabilities, allowing positioning of the monitor at any desired location.
Compact Storage: When desired, the arm folds up to occupy only 3" of space, freeing up the entire desk for other activities.
Cable Management: Cable clips provide cable management to prevent cables from dragging on the desk.
Multiple Mounting Options: The 4-Way FlexMount included with the 7Flex Dual can be configured for desk clamp, through desk, desk side, and grommet hole clamp mounting.

Images (Click on any thumbnail to view larger image)

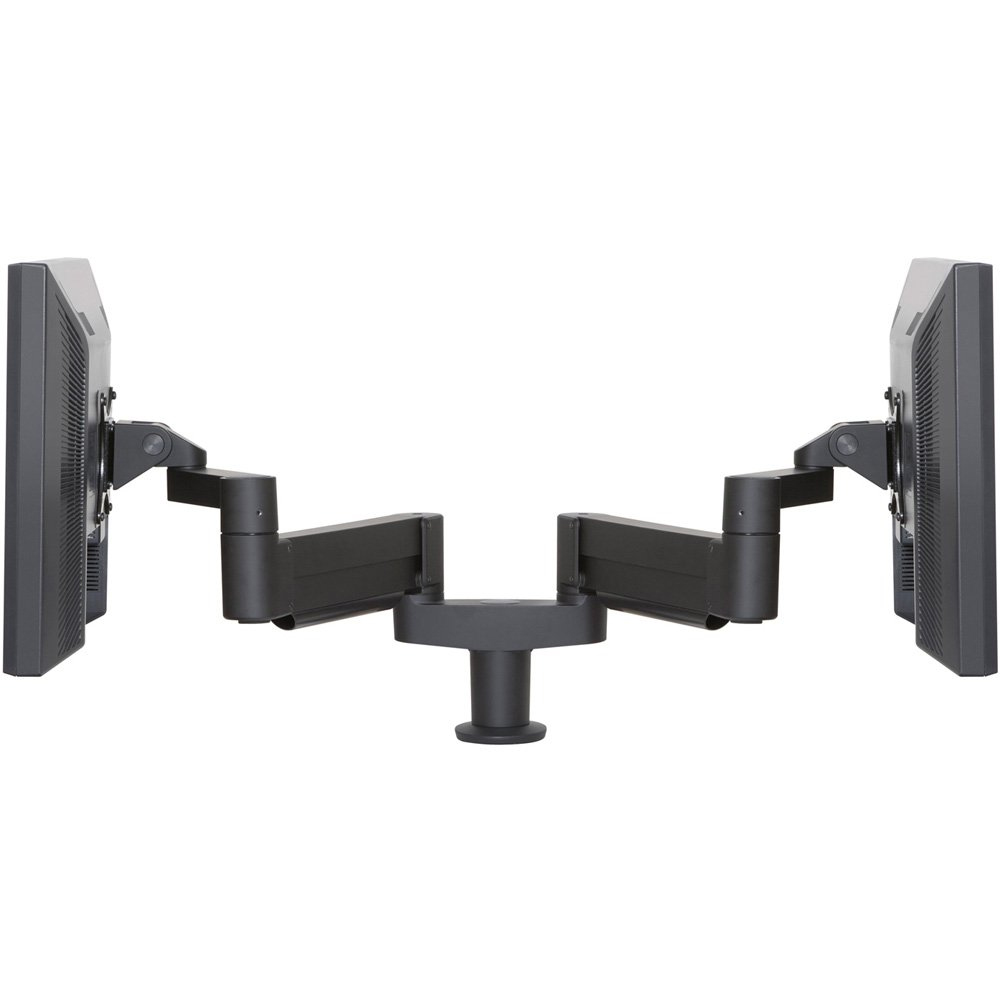

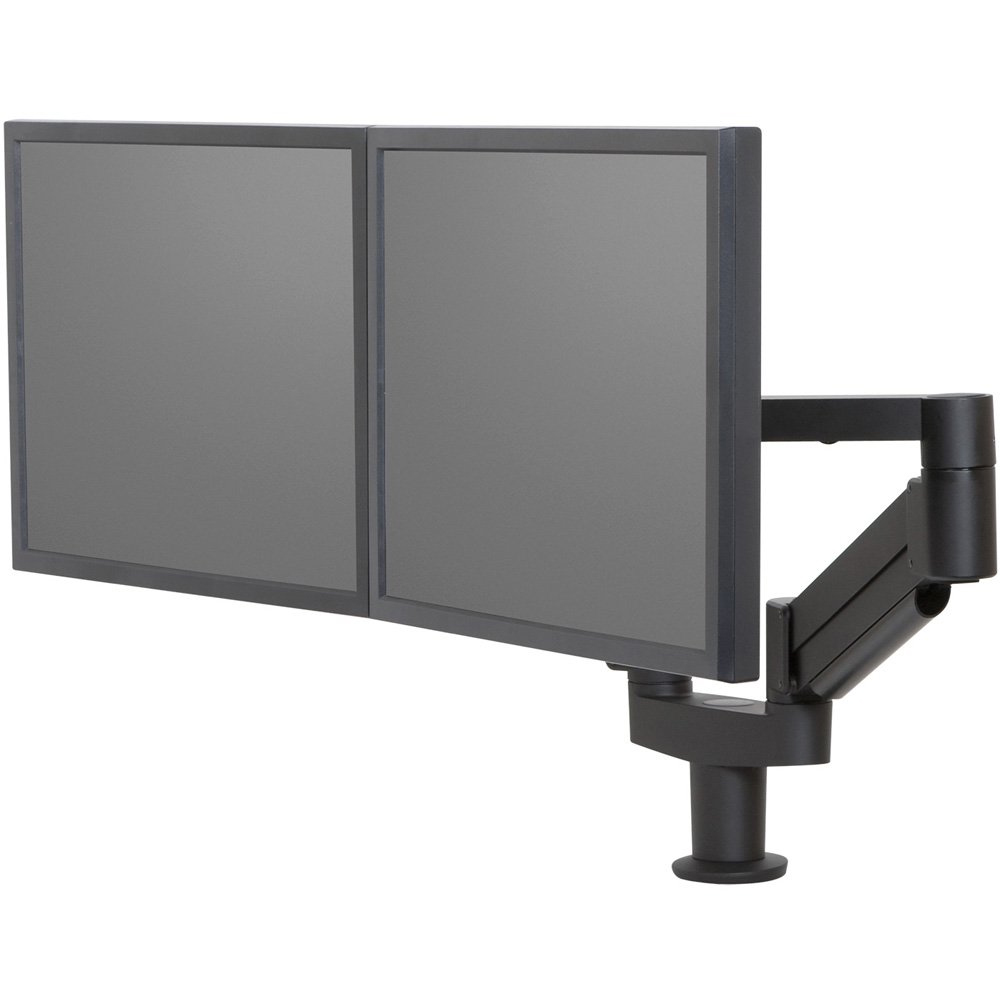

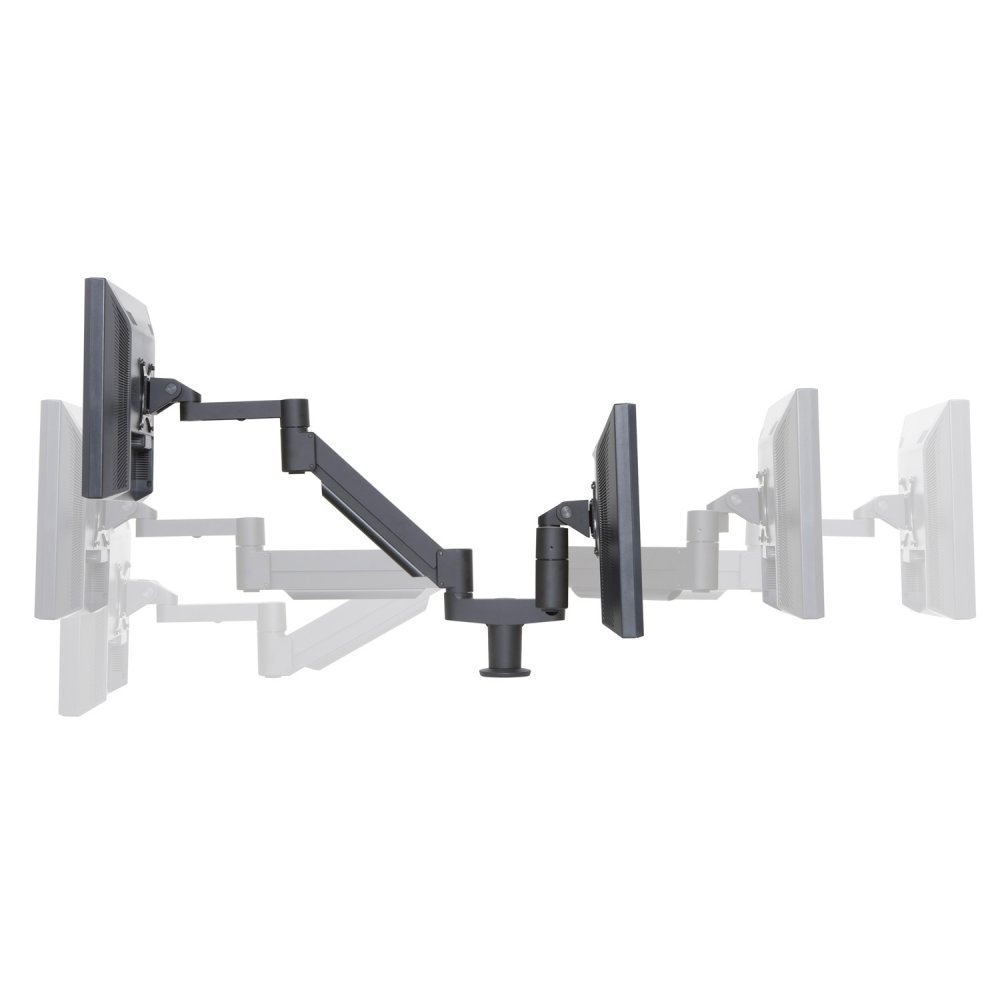

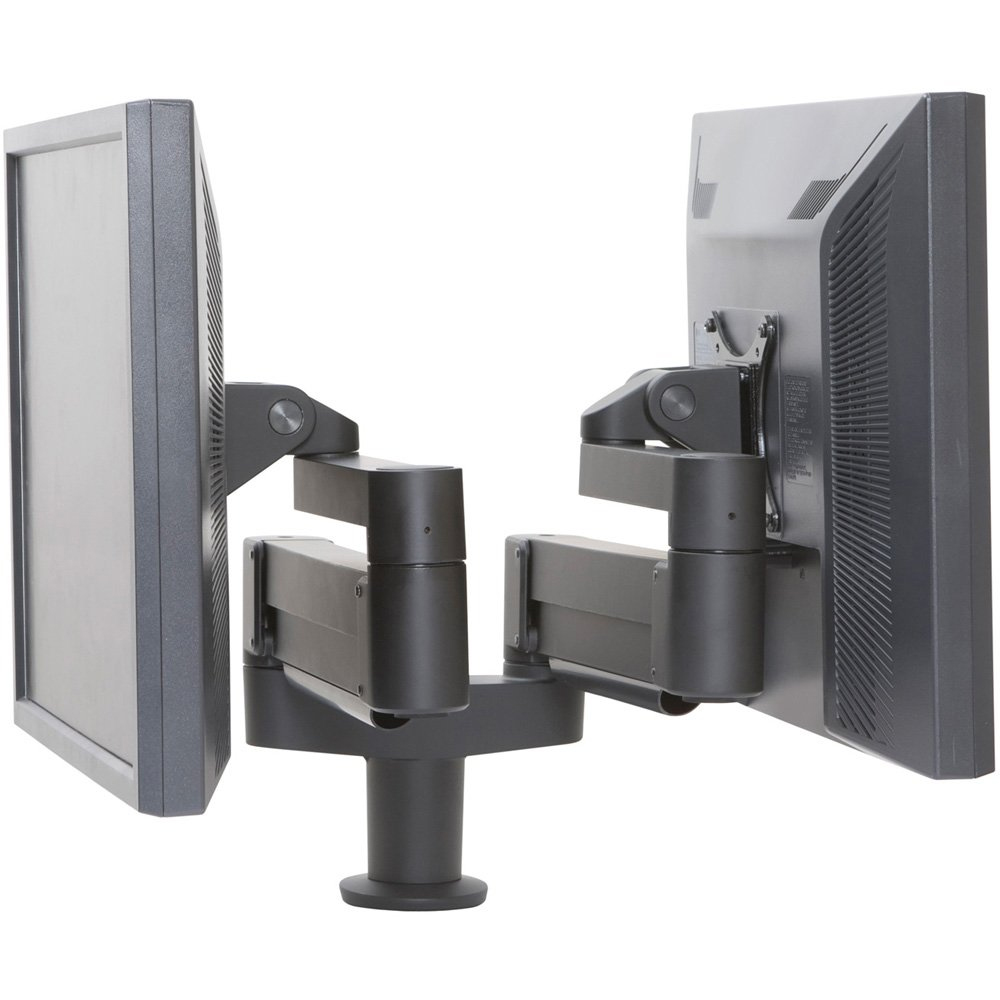

7Flex Dual	7Flex Dual – Opposite Compact Positioning	7Flex Dual – Opposite Extended Positioning	7Flex Dual – Opposite Compact and Extended Positioning

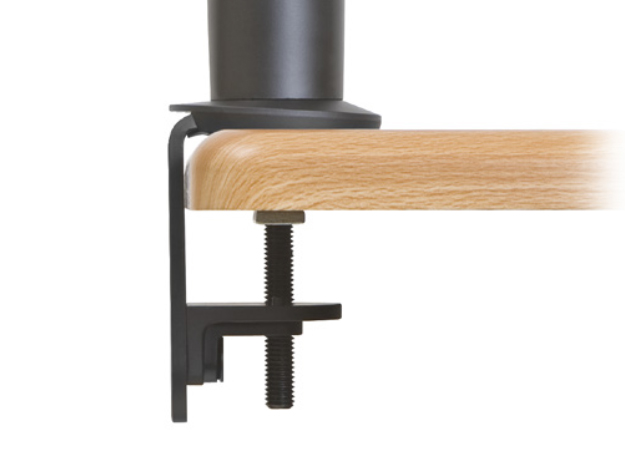

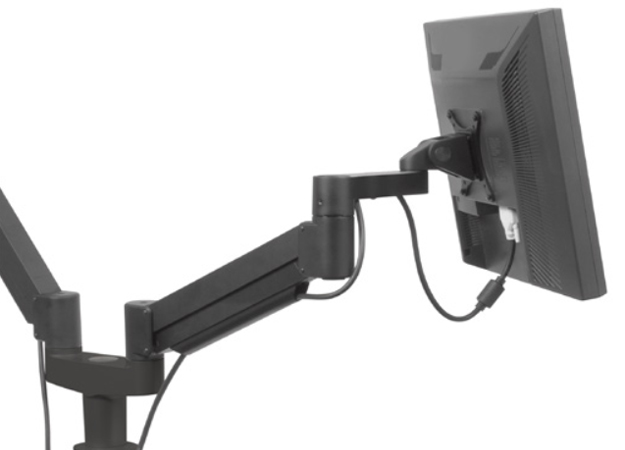

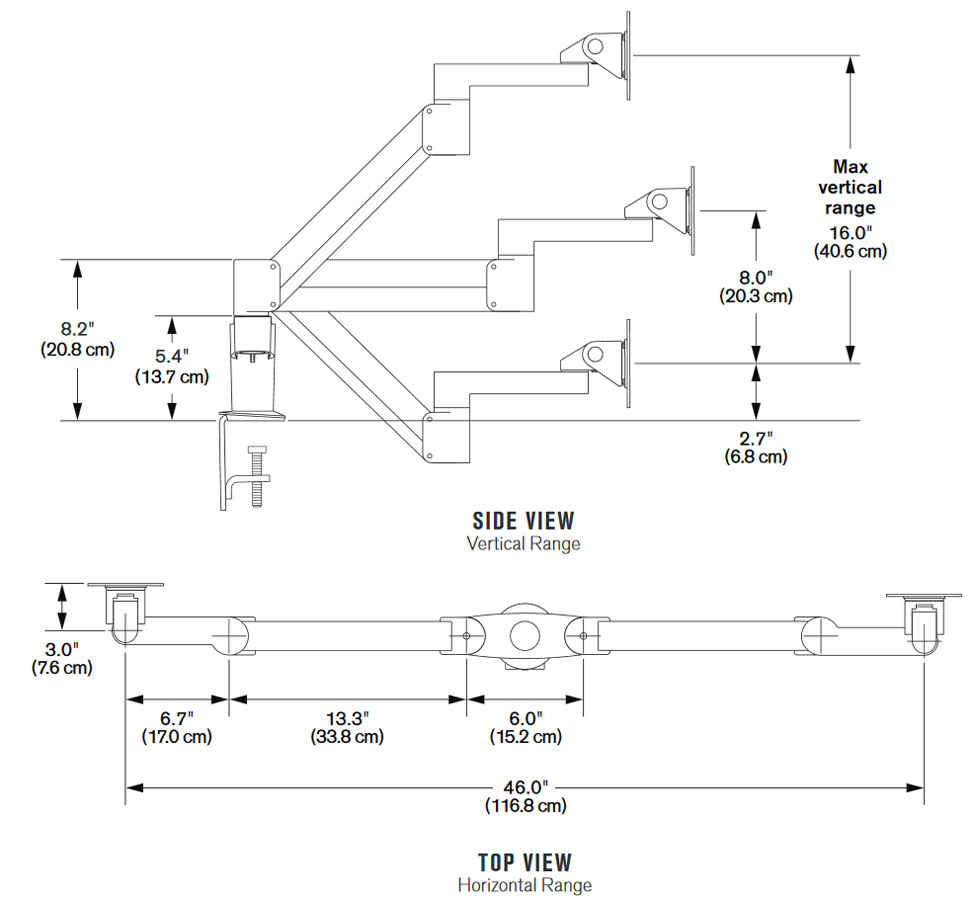

7Flex Dual – Cable Management	7Flex Dual – Clamp Mount	7Flex Dual – Range Diagrams

Technical Specifications

Vertical Range: 16" (40.6 cm) (8" [20.3 cm] up and down from horizontal)
Vertical Max Height (from desktop): 18.7" (47.5 cm)
Horizontal Range: 24" (61.0 cm)
Cable Management: Integrated cable management system (clips) keeps your work surface free of annoying cable clutter
Compact Storage: Folds up to occupy just 3" (7.6 cm) of space
Effortless Movement: Gas cylinder "floats" monitor above desk - effortlessly raise and lower the monitor
Rotation: Rotates 360° at 3 joints
Monitor Tilt: Up to 200°
Weight: Rated for monitors from 5 lbs (2.27 kg) to 17 lbs (7.71 kg)
Orientation: Pivots from landscape to portrait
Colours: Available in Vista Black
Compatibility: VESA-monitor compatible - 75 mm and 100 mm VESA adapters included. Please call for non-VESA options
Warranty: 10 years
Package Contents: 7Flex Dual Monitor Arm, Assembly Hardware, Instructions

Usage Tips

Choose an Arm with an Appropriate Weight Capacity – Before purchasing your monitor arm, investigate the weight capacity of the arm so that the weight of your monitor is ideally in the middle of that range. For example, the weight capacity of the 7Flex is 5 to 17 lbs. The midrange weight is therefore 11 lbs. If your monitor happens to be about 10 lbs, the 7Flex should work fine for you. The closer to the midrange is the better. If you have not yet purchased a monitor or monitor arm, research your options and choose an arm that will work for the monitor you want. Obviously, if you already have an arm and not the monitor, you will have to choose a monitor with an appropriate weight without its stand included. In addition, you will have to choose a monitor that can be mounted on an arm with an acceptable hole pattern for mounting with screws. For the 7Flex, the monitor must have a hole pattern in the back side which is 75 mm x 75 mm or 100 mm x 100 mm square. Otherwise, you may require a special adapter plate.
Select the Optimum Mounting Location – Since the 7Flex comes with a 3-in-1 configurable dual mount, you have ample options when it comes to mounting your monitor arm. Most users choose the desk clamping option but this only works if your desk has a lip on the mounting side and your desk is reasonably shallow (30” or less deep). Otherwise, a grommet mount or through mount is the next best option. You need a grommet hole of at least 2.25” diameter for the grommet mount to work, whereas the through mount requires that you drill a small hole in the desk to bolt the mount through the desk to secure it. You may want to roughly position the mount in different locations at first to get an idea of where the movement of the arm is optimal and then decide on which mounting option works best at that location.
Adjust the Counterbalance Mechanism with Monitor Attached – After the 7Flex has been mounted in its optimal position, you will need to attach the monitor so that you can properly adjust the counterbalance mechanism. This will ensure that the monitor moves up or down effortlessly. Follow the manufacturer's instructions on how to do this, because if done improperly there may be damage to the balancing system. For the 7Flex, counterbalancing is done when the arm is extended or pushed down so that both arm segments are parallel to the desk. All hardware to do this calibrating is provided with the arm. After mounting, calibrating the counterbalance is the most critical step in installing your monitor arm properly. Once done, you are almost ready to use the monitor arm (see next tip).
Become Familiar with the Adjustable Tension Points on the Joints of the Arm – To get the best movement out of your monitor arm, find all the critical joints where you are able to adjust the tension. These can be located using the Instruction Manual and are identified by the presence of a set screw. Allen wrenches are provided that can turn these set screws to vary the force needed to turn the arm at these critical joints. Often these joints are tightened tightly during manufacturing to prevent any loose movement during shipment, so if your monitor arm seems stiff when swiveling at the base, for example, you may need to loosen the set screw at that point. Remember to store the hardware tools in a convenient place in order to make future adjustments quickly when needed.
Set Monitor at Optimal Height, Angle, and Distance - Once your monitor arm has been installed and calibrated properly, you are ready to set it in the optimal position. In terms of ergonomic principles, the optimal position can vary, but there are definitely improper ways to set your monitor. Learn more about proper and improper ways to position your monitor.

Models

For pricing, availability or to order this product, visit our online store.

Model #	Description
7FLEX-DUAL-104	Innovative 7Flex Dual LCD Arm, for monitors 5 to 17 lbs, Black
