X-keys 4x6 Mounting Bracket

by PI Engineering

Ergonomic Benefits Features Additional Resources Usage Tips Accessories

The X-keys 4x6 Mounting Bracket comes with a variety of options which allow one to attach all XK-24 and XK-12 series X-Keys to any flat surface using pre-machined holes in the plates of the bracket. Made of high grade industrial polycarbonate, this sturdy bracket has holes for 75mm VESA mounting and includes screws for mounting to X-Keys. The kits can add up to three modular hoses (one is included; additional hoses are sold separately) to extend the reach of the brackets.

Images (Click on any thumbnail to view larger image)

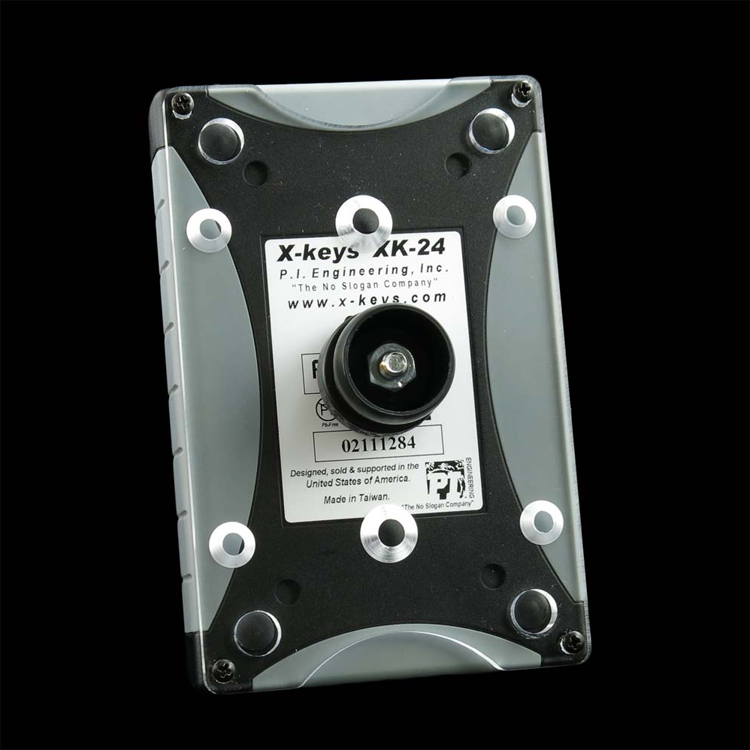

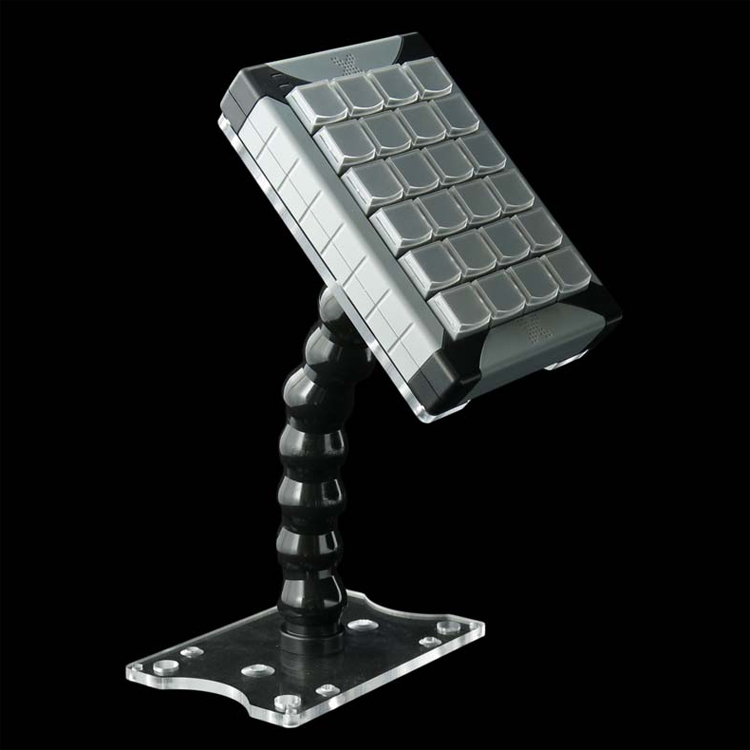

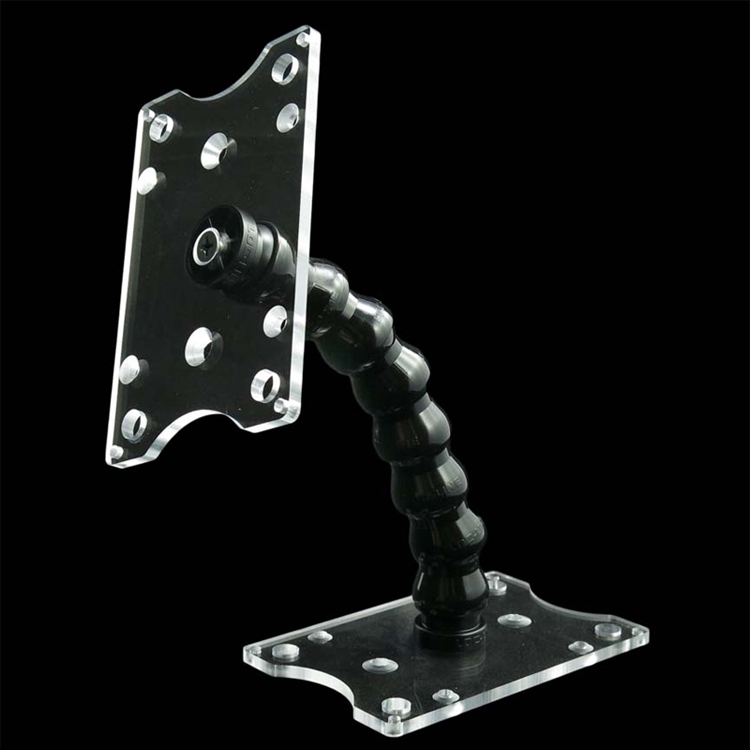

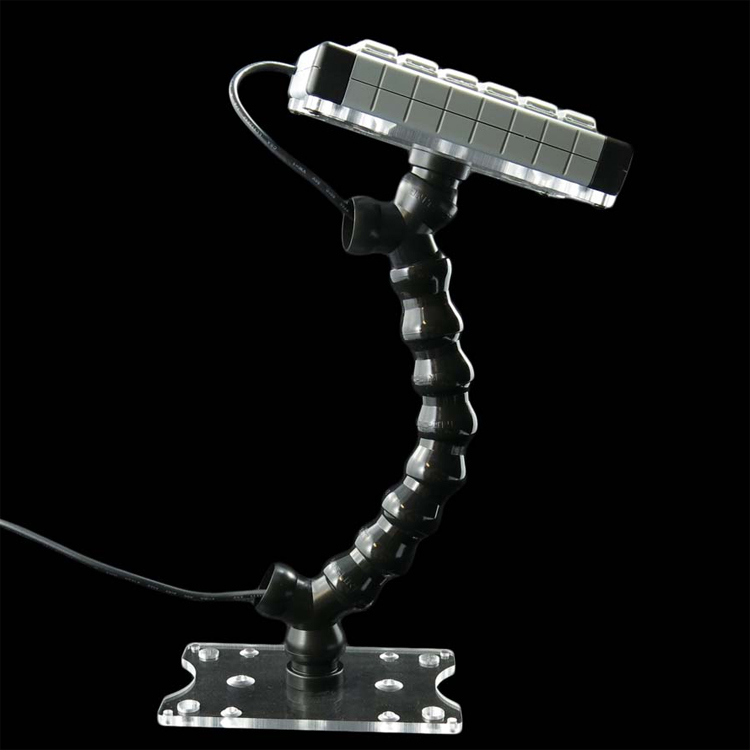

X-keys 4x6 Mounting Bracket	X-keys 4x6 Mounting Bracket - Without Pad Attached	X-keys 4x6 Mounting Bracket - Bracket Attached to Pad	X-keys 4x6 Mounting Bracket - Special Connectors for Cable Management (not included)

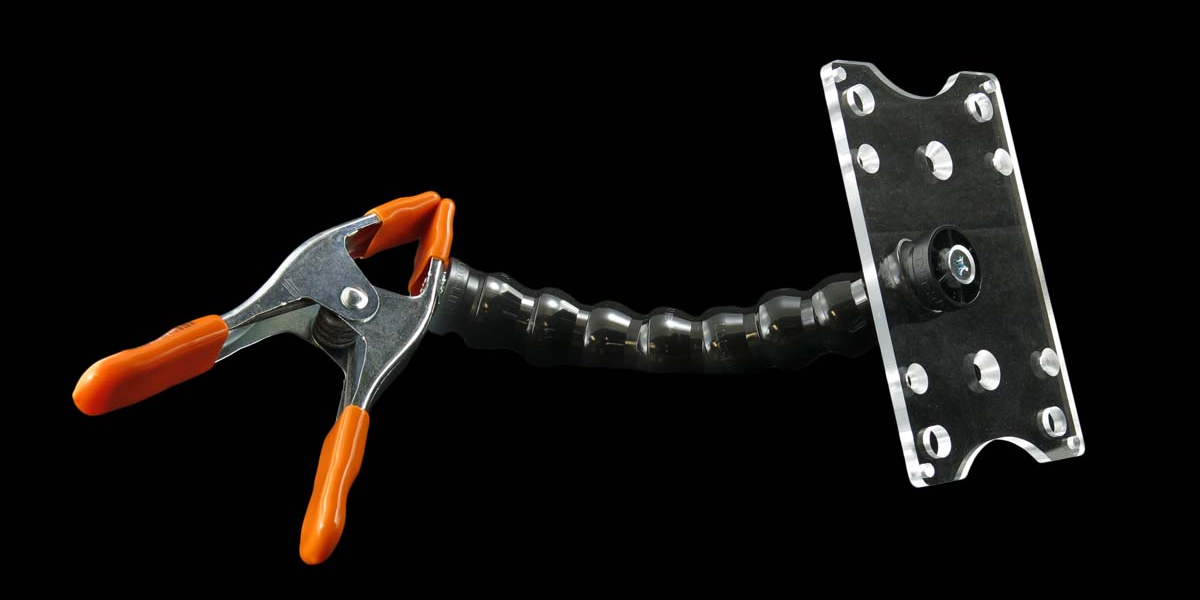

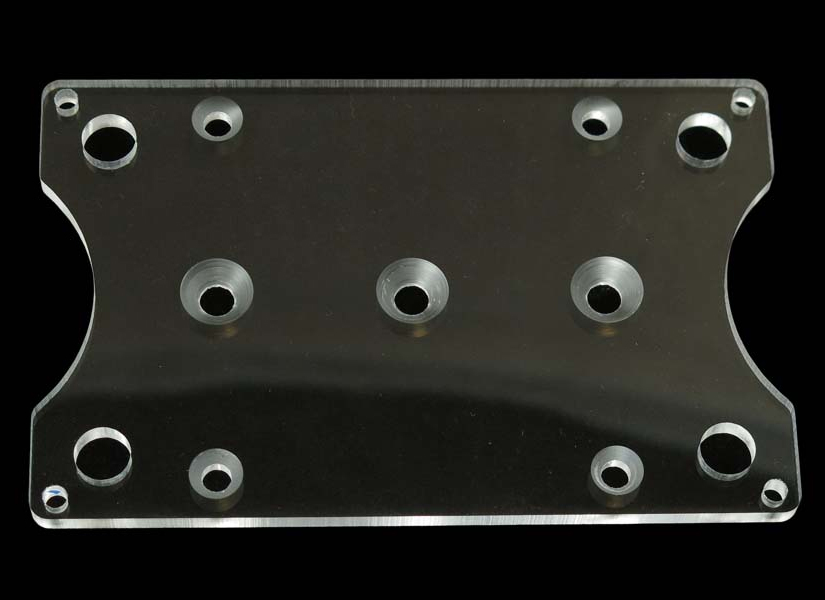

X-keys 4x6 Mounting Bracket - Spring Clamp model	X-keys 4x6 Mounting Bracket - Clear Bracket with Hole Patterns

Technical Specifications

Bracket Material: High Grade Industrial Clear Polycarbonate
Warranty: 1 year
Package Contents: 4x6 Mounting Kit: 2 polycarbonate plates, 1 modular hose, 2 connectors with screws, screws to attach to X-Keys
4x6 Spring Clamp Kit: 1 polycarbonate plates, 1 modular hose, 2 connectors with screws, screws to attach to X-Keys, 1 spring clamp

Models

Model #	Description
XK-A-4x6-BU	X-keys 4x6 Mounting Kit
XK-A-4X6-SCL-BU	X-keys 4x6 Spring Clamp Kit
