Ergo M575 Wireless Trackball

The Ergo M575 Wireless Trackball from Logitech replaces the earlier M570 Wireless Trackball, offering improved connectivity options. Like its predecessor, the M575 takes most of the repetitive movements and strain which the entire hand usually must perform and allocates all the workload to the thumb. Accurate optical tracking is provided by a laser sensor that offers 400-2000 DPI resolutions. With a contoured body that provides a relaxing support for the hand, the Ergo M575 is equipped with a scroll wheel and right and left click buttons, all positioned as with a traditional mouse. In addition there are Back and Forward Buttons for convenience when browsing through multiple pages. The trackball body is shaped to let the hand rest in a natural relaxed position. As with the earlier M570 model, the M575 is best suited to those with small- or average-sized hands.

Connection can be made via either Bluetooth or the storable USB mini receiver, with a single AA battery providing up to 2 years of service. A battery life indicator will advise when the battery needs replacing. Software available from Logitech offers customization of trackball functions and performance.

Note: As the Ergo M575 places the workload fully upon the thumb, (which on most other trackballs is generally shared amongst several fingers), anyone who has existing thumb issues would be well-advised to consider alternative solutions.

• Convenient Back/Forward Control: Dual buttons offer instant access to forward and backward when surfing the Web.

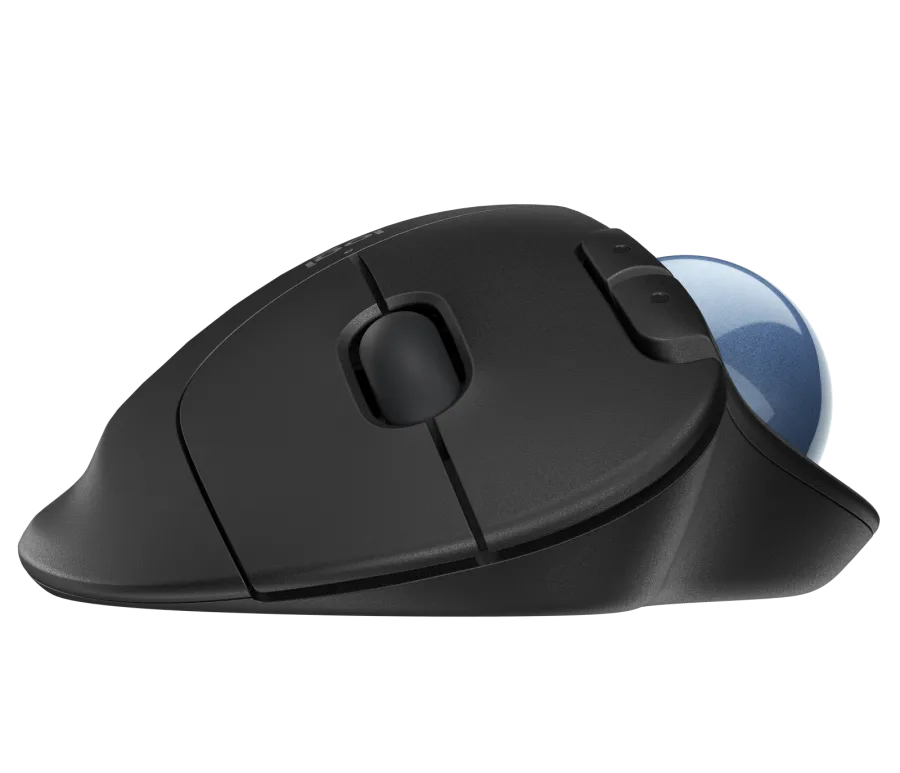

• Dedicated Scroll Wheel: The Ergo M575 Wireless Trackball includes a dedicated scroll wheel positioned in the traditional position between the left and right click buttons.
• Thumb Cursor Control: Cursor control is accomplished by the thumb, leaving the fingers free to perform clicking and scrolling.
• Dual-Mode Wireless Convenience: The Ergo M575 Wireless Trackball operates either 2.4 GHz wireless - Logitech Unifying receiver - or Bluetooth. Minimum OS compatibility requirements are listed in the Specifications.
• Optical Tracking Technology: Optical Tracking ensures precision cursor control.
• 34 mm Trackball: Moving the 34 mm ball requires very low effort so the load on the thumb is minimal. Although low effort is required the ball still offers sufficient resistance, ensuring it is still possible to retain a high level of control. Movement is smooth and accurate.

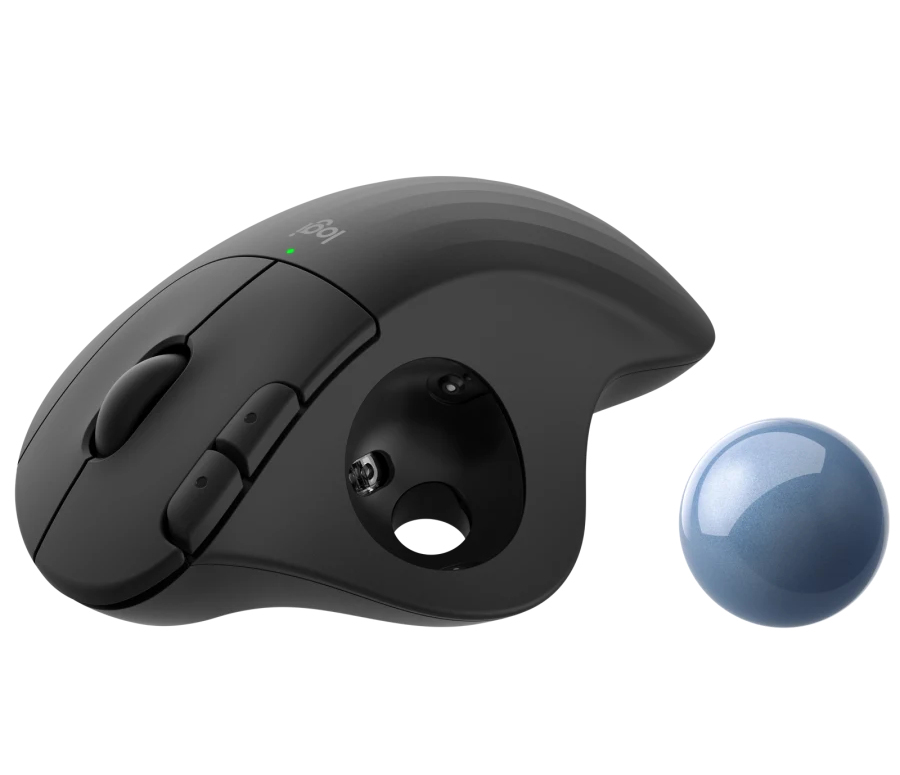

• Low Maintenance Design: The trackball on the M575 can be easily removed for cleaning when necessary.
• Natural Hand Support: The body of the Ergo M575 Wireless Trackball is shaped to provide those with small to average size hands a natural, supportive contour on which to rest their hand. Those with larger hands will not be able to fully benefit from the supportive design since access to the buttons and trackball will require that they move their hand back and away from the body of the trackball. For this reason these individuals may wish to consider an alternative trackball option.
• Customizing Software: Logitech offers software for both PC and MAC which can be used to customize the Ergo M575 Wireless Trackball functions.

• Trackball Diameter: 1.375" (34 mm)
• Laser Resolution: 400-2000 DPI

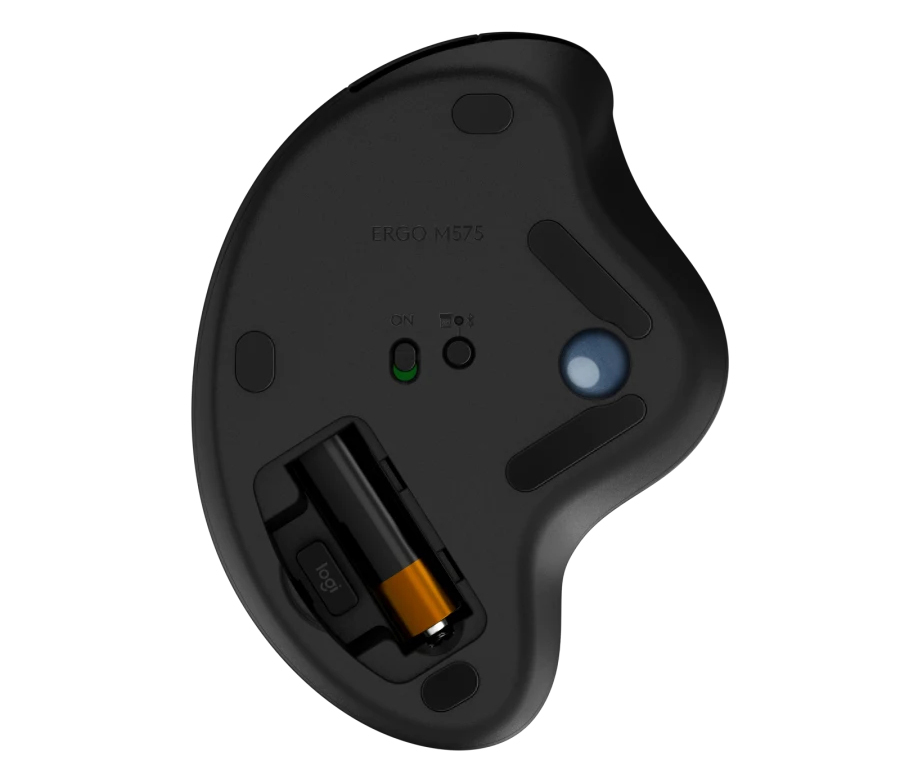

• Power Source: 1 x AA battery (included)
  With Unifying USB Receiver: up to 24 months
  With Bluetooth: up to 20 month
  Note: Battery life will vary with usage.
• Interface: Dual Connectivity
  USB (2.4 GHz Logitech Unifying Receiver)
  Bluetooth
• Wireless Range: 30 feet (10 metres)
• System Requirements:
  Unifying USB Receiver (2.4 gHz)

  • PC: Windows 10 or later, Windows 8, Windows 7
  • Mac: MacOS 10.13 or later
  • Chrome OS
  • Linux


  Bluetooth:

  • PC: Windows 10 or later, Windows 8
  • Mac: MacOS10.13 or later
  • iPad: iPadOS 13.4 or later
  • Linux
  • Chrome OS
• Available Software:
  Windows: Logitech Options Software
  Mac: Logitech Options Software
• Buttons: 5 (Left/Right-click, Back/Forward, Scroll-wheel with middle click)


• Warranty: 1 year limited. Manufacturer direct only.
• Package Contents: Ergo M575 Wireless Trackball, Logitech Unifying Receiver, 1 x AA Battery, Quick Start Guide.

• Since all cursor movement is accomplished by the thumb you should be vigilant and take notice if any pain begins to develop. Should this occur it would be wise to immediately reduce the usage or change to a device which does not require thumb movement. Most people are quite aware of carpal tunnel and often shift to trackballs as an alternative to address existing RSI issues or as a precautionary measure. However, most are not aware of the danger which can exist from overuse of the thumb. De Quervain Syndrome or De Quervain's Tenosynovitis can be as painful and debilitating as the other more commonly known RSI.
  Learn more about De Quervain's Tenosynovitis.
• If you are new to a trackball expect that it will take a while to get accustomed to the different style of control. It is also a good idea to limit the amount of time you use it in the first while. Rather, build up to longer periods of usage by interchanging with a different mousing device or by Load Balancing (see next point).
• Load Balance Your Use: Since the Ergo M575 Wireless Trackball is a dedicated right hand mousing device it cannot be switched between hands. For this reason it is a good idea to have an alternate mousing device either for either the left or right hand which can be used to give the thumb a break from continuous usage.
• Take regular breaks. If you find that you are experiencing discomfort in your thumb, especially in the learning stages - that is a good sign that you may want to take a break by switching to a different device or by swapping to the other hand. As with any device, make an effort to regularly change your usage, take breaks, and perform stretches. Some will find that the fingers can benefit from occasionally flexing them through a full range of movement, both extending and contracting them fully.
