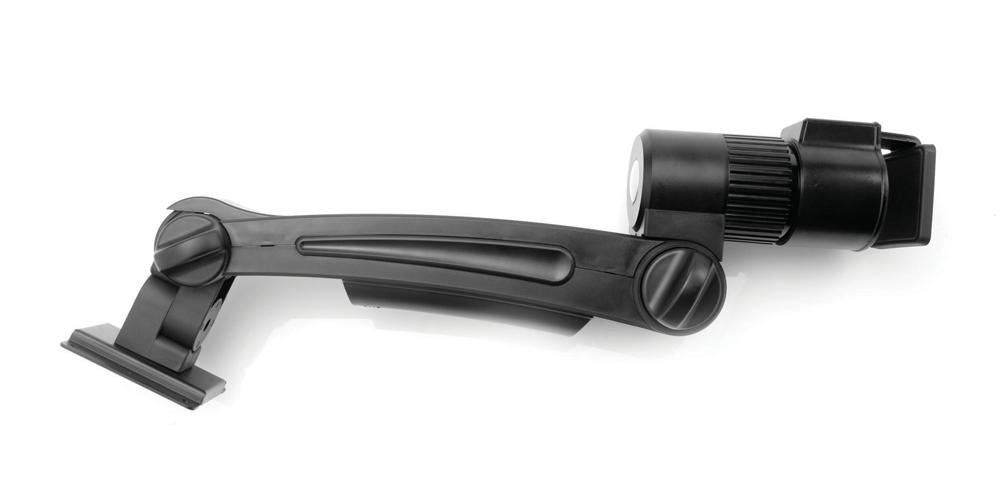

Solo Monitor Arm

The Solo LCD monitor arm from KV Waterloo enables a full range of motion and ensures a high degree of monitor stability. Simple and easy to use with minimal workspace clutter, Solo is ideal for small workspaces and home offices. Designed to counterbalance monitor weights from 6 to 12 lbs, it makes adjustment of the monitor easy and simple. Features include:

• Low-profile mounting system and integrated cable management snap-on shroud
• Unique, multi-dimensional swivel system
• VESA standard mounting plate
• Swivel adjustment on arm base and mounting head
• Tension control knobs
• Gromment mounting option included

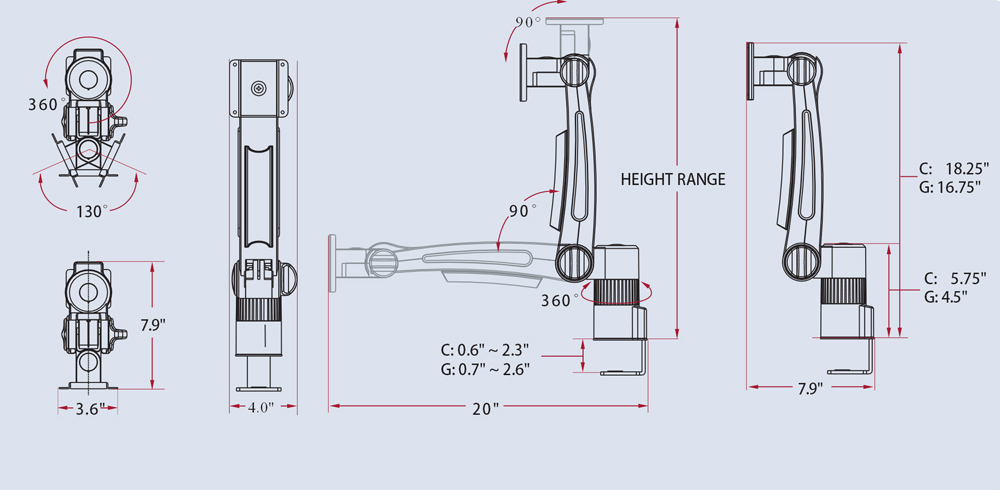

• Width: 4.0" (10.2 cm)
• Length: 7.9" (20.1 cm)
• Horizontal range: 7.9" to 20" (20.1 cm to50.8 cm) from the back ofthe mount
• Vertical range (measured from desktop): To clamp:18.25" (46.4 cm)
  To grommet:16.75" (42.5 cm)
• Range of acceptable LCD monitor weight: Minimum:6 lbs (2.72 kg)
  Maximum:12 lbs (5.44 kg)
• Mounting depth:

  Mount type	Minimum	Maximum
  Clamp	0.6" (1.5 cm)	2.3" (5.8 cm)
  Grommet	0.7" (1.8 cm)	2.6" (6.6 cm)

• Colour: Black
• Material: ABS plastic
