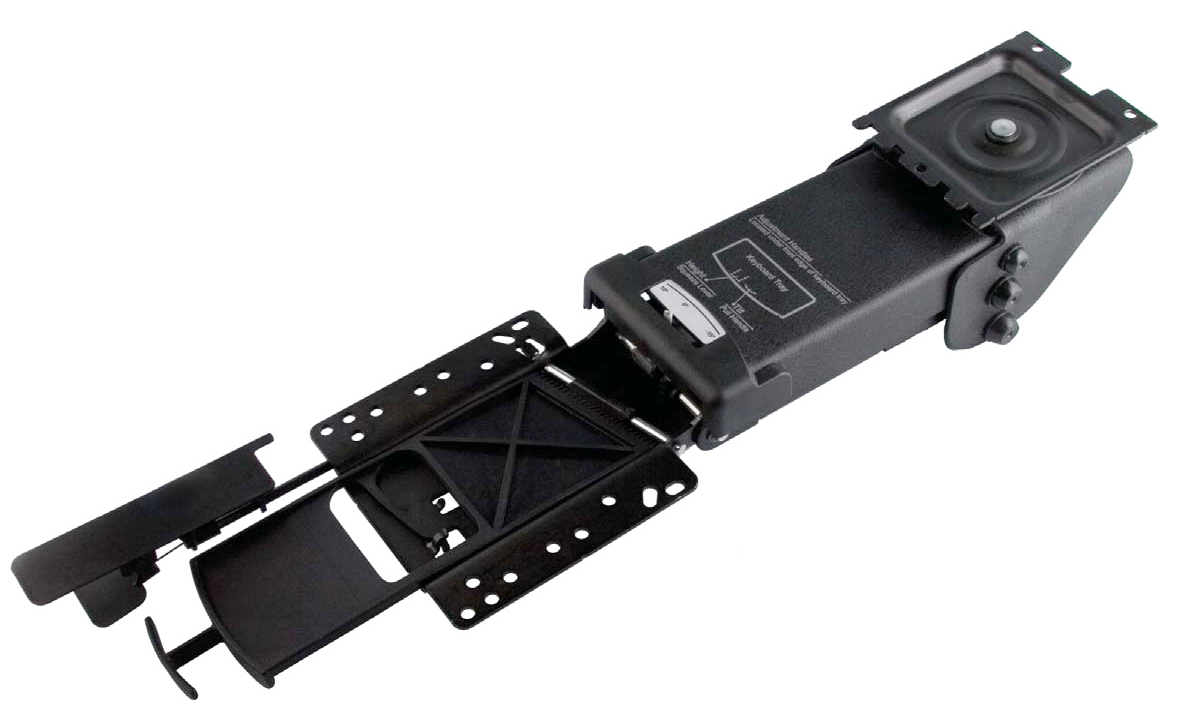

Maestro Low Profile Non-Lift and Lock Arm

This arm offers separate lever activated controls for height and tilt. It features a low profile design allowing for more clearance for the legs and knees. The standard 360° swivel is available for side to side movement and a 23" storage track ensures that when not in use the arm and tray are fully stored. Instead of the Lift and Lock feature for height adjustment, a spring brake finger touch paddle actuator is used to adjust the arm to the desired height, and a simple T-Pull release is used to tilt the platform to the desired angle. Accepts all standard trays.

Looking for Trays? - see our Tray Category

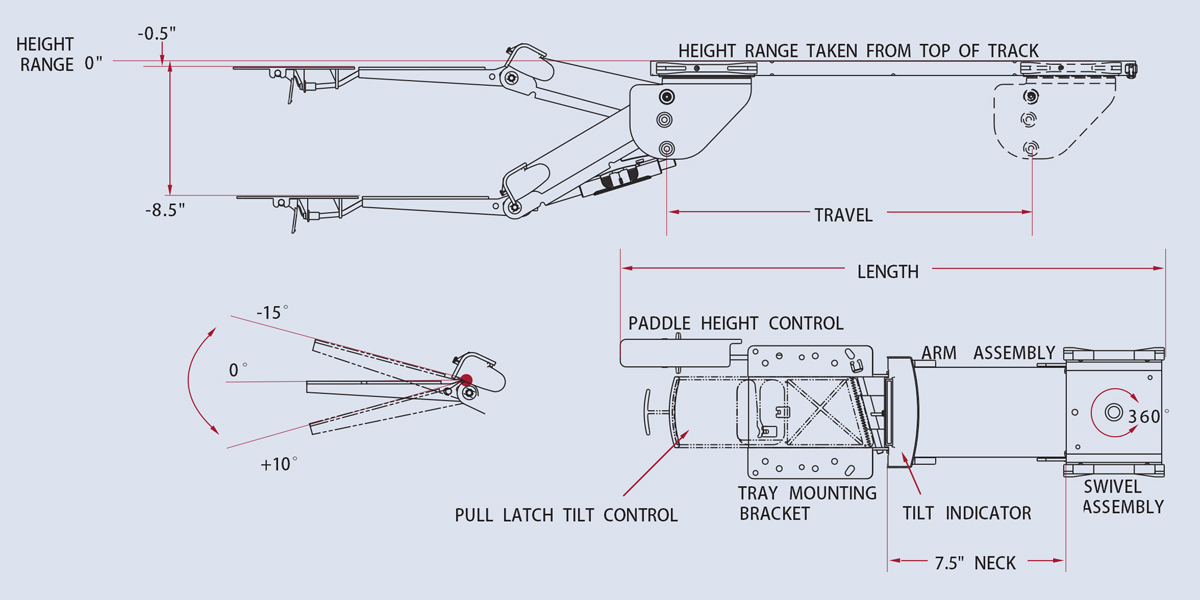

• Depth (front to back) of storage track: 23.00" (58.4 cm)
• Height adjustment: Max above mounting surface:0.75" (1.9 cm)
  Min below mounting surface:6.5" (16.5 cm)
• Tilt adjustment: +10° to -15°
• Height adjustment mechanism: Spring brake finger touchpaddle actuator
• Tilt mechanism: T-Pull release
• Track mechanism: Steel ball bearings
• Load rating: 100 lbs
• Warranty: Warranty: 15 Year Limited, Manufacturer Direct
• Package Contents: Maestro Low Profile Non-Lift and Lock Arm, Mounting Template and Instructions, Mounting Hardware
