| Product Summary |
|---|
Unsurpassed in flexibility and adjustability, this keyboard can be instantly customized with on-board programming features.The new Kinesis Evolution fully adjustable ergonomic keyboard offers a unique set of ergonomic features not found in any other computer keyboard. Attached to an under-desk articulating track, the Evolution is the only keyboard that offers variable height with a full range of movement in all three planes. |
| Ergonomic Benefits |
|---|
Lateral separation and tenting - Pivoting knobs clamp to horizontal rods allow independent, infinite adjustment.
Front (i.e. negative) tilt - Track head has knob on right side which, when loosened, allows track head to be tilted up or down. Some tilt adjustment is also possible using knobs and rods.
Height adjustment - Simply raise or lower the track head and attached keyboard. The track head height adjusting mechanism is self-releasing (by tilting up slightly) and self-locking.
Under-desk storage - With a normal width desk, simply "lift & lower" the track head and attached keyboard, press the track release button and slide the keyboard under the desk. For narrow knee spaces, you may need to steeply tilt one side of the keyboard to attain adequate clearance for under-desk storage.
|
| Features |
|---|
- Variable separation: up to 17.5 inches of separation between the left and right keyboard halves.
- Unlimited lateral tilt: each keyboard module can be independently adjusted from zero to ninety degrees, greatly reducing forearm tension.
- Unlimited rotation: each keyboard half can be independently rotated to adapt to a user's particular needs.
- Adjustable height: the height can be lowered up to six inches (6") below the desk surface.
- Unlimited key remapping: up to 24 macros (each with 56 characters). Works on all operating systems; no software or drivers required.

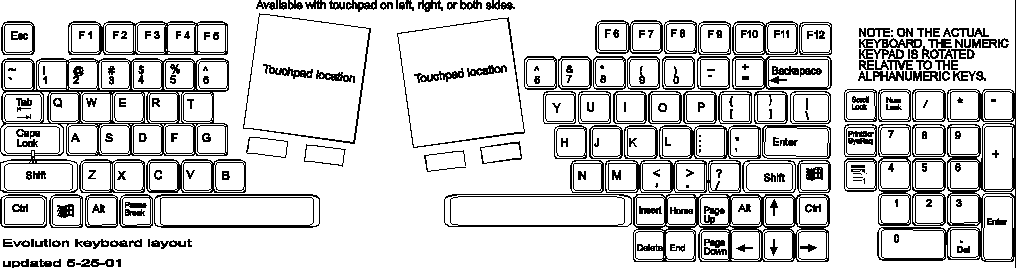

- Extremely easy transition: layout is identical to traditional QWERTY PC-compatible keyboard.
- Pointing device is close at hand: integrated touchpad with Glidepoint technology from industry leader, Cirque. Available even with dual touchpads.
|
| Technical Specifications |
|---|
- Width: Left: 9.5" (24.1 cm)Right: 15.5" (39.4 cm)
- Depth (front-to-back): Left: 8.9" (22.6 cm)Right: 9" (22.9 cm)
- Height (when positioned flat): 1" (2.5 cm)
- Compatibility: PC
- Interface: PS/2
|
| Models |
|---|
 |
| Model # | Description |
|---|
| KB45, KB46, KB47 series | Evolution Chair-Mount Keyboard |
|
