Winston Workstation Single

The Winston Workstation Single from Innovative is a height-adjustable sit-stand add-on unit that can be deployed on almost any standard height fixed desk, converting it for sitting, leaning or standing. This all-in-one unit can elevate a keyboard, mouse, and other desk accessories, including a single monitor, to whatever standing height is needed (up to 18.0" above desk height for the keyboard platform; up to 37.6" above desk height to the middle of the monitor).

The keyboard platform (30" W x 23" D) and monitor mount move as one unit for height adjustment* to ensure that the monitor is appropriately positioned as working positions change throughout the day. The Winston uses a heavy metal base to stabilize the unit so that it can be positioned anywhere on the surface without having to clamp or bolt it to the desk. The release lever built into the keyboard platform on the right side, releases the lock so the platform, supported by a gas spring, can be moved up or down as desired with minimal effort.

*NOTE: The monitor height relative to the keyboard platform is set when the unit is assembled and is not intended to be adjusted on-the-fly while in use. However, should such a change be required, it can be readjusted by disassembling the monitor clamp and reassembling at a different height.

• Free Standing (Drill and Clamp-Free): The Winston Workstation is ideal for deployments where drilling into the desk, or clamping onto its edge are not permitted or undesirable. A heavy steel base allows the unit to be positioned on a desk top without creating a tipping hazard. Felt pads on the underside of the base prevent scuffing or scratching of the desktop.
• Single Monitor Mounting: The Winston Workstation Single accommodates the mounting of a single monitor weighing up the 18 lbs (not including the monitor stand). one monitor to be mounted. The monitor must be VESA compatible with either a 75 mm or 100 mm hole pattern.
• Gas Spring Assisted Lifting: The integrated gas spring reduces the manual effort required to elevate the worksurface and monitor when transitioning to a leaning or standing position. When lowering the Winston it offers steady resistance that ensures smooth and safe adjustment.
• Side Release Lever Mechanism: The height adjustment release lever is positioned just beneath the right hand side of the platform. When pressed it releases the gas cylinder lock to permit height adjustments. While still holding the lever engaged, with both hands on either side of the platform, it is possible to lift the worksurface up or push it down to the desired height. Simply release the lever to lock the platform into place at the new height.

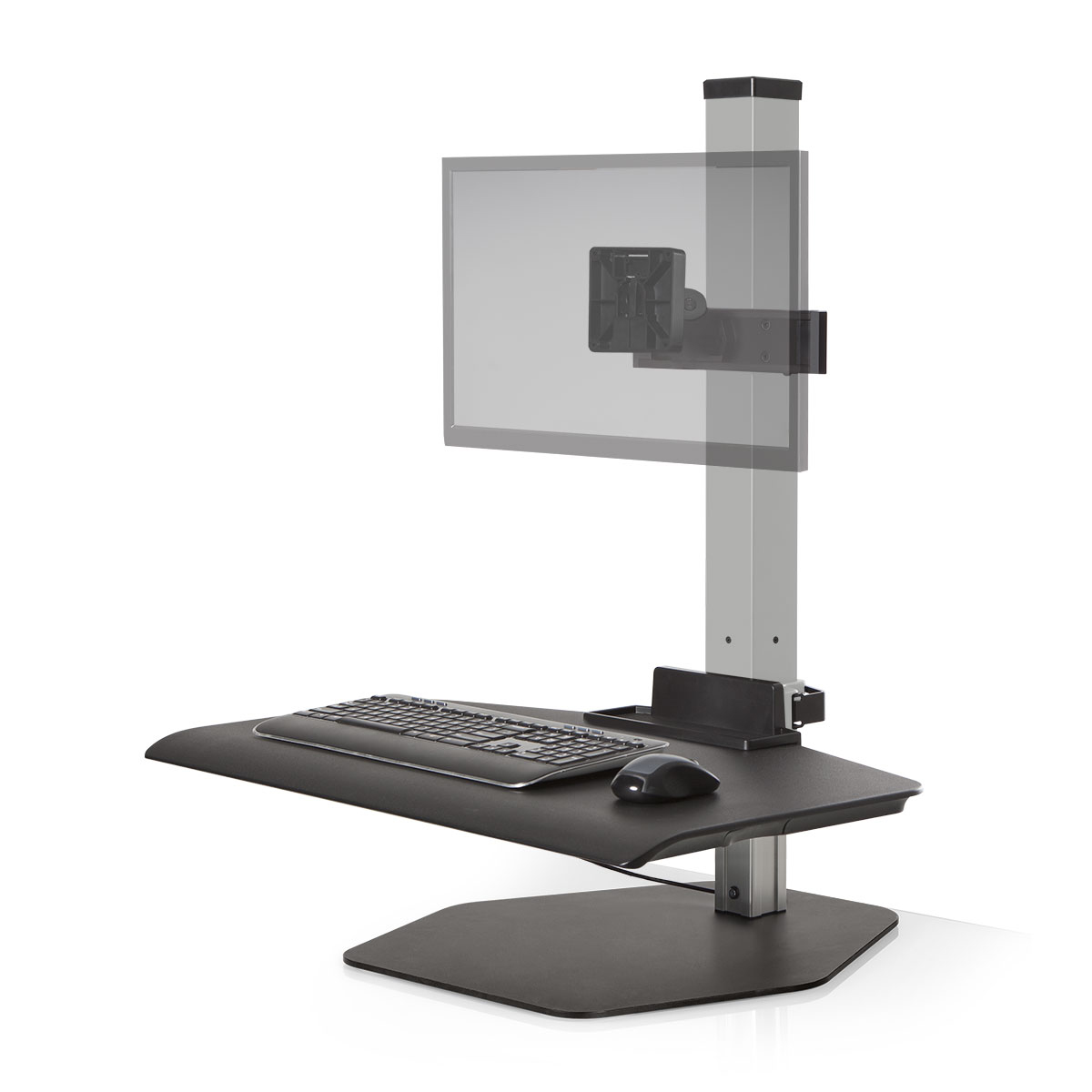

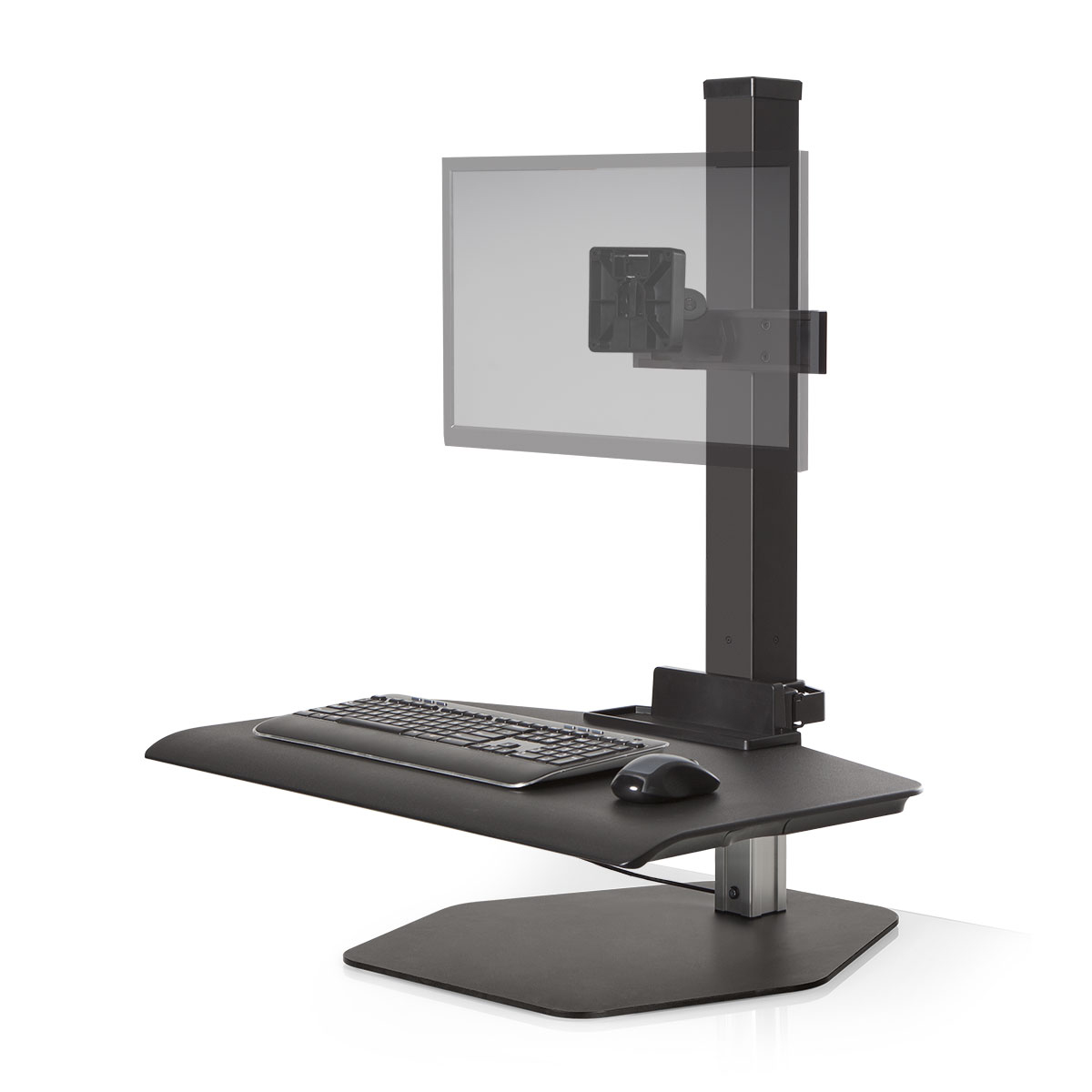

• Multiple Colour Options: All Winston Workstation Single units are available in two colours: Black and Silver. Note: Only the Column is affected by this colour choice; the platform is always black and the crossbar is always silver.
• Convenient Storage Tray: All Winston Workstations have a storage tray at the back of the worksurface platform to hold office supplies or even a tablet for easy access whether sitting or standing. The 9.25" wide and 2.5" depth tray has a raised lip to prevent contents from rolling out accidentally.

• Winston Workstation Single Brochure with Dimension Specs: PDF

• Keyboard Platform Height Settings: Infinite settings between 1.3" (3.3 cm) (min.) and 18.3" (47.0 cm)(max.) above mounting surface.
• Keyboard Platform Adjustment Range: 17.1" (43.4 cm)
• Keyboard Platform Dimensions: 30.0" (76.2 cm) wide x 23.0 (58.4 cm) deep
• Monitor Mount: Tilter-type VESA compatible (75 mm and 100 mm hole patterns) with 200° tilt and 360° pivot (landscape to portrait)
• Monitor Height: Up to 19.3" (40.0 cm)from keyboard platform to middle of monitor
• Cable Management: Yes (cables clip to column)
• Free Standing Base Dimensions: 20.7" (52.6 cm) wide x 22" (55.9 cm) deep
• Weight Ranges by Model:


  WNST-1-FS-L

  9 - 20 lbs (4.1 - 9.1 kg)


  Note: These weight ranges should include monitor weight plus anything placed on the keyboard platform


• Warranty: 5 year warranty on all parts
• Package Contents: Winston Workstation, Assembly Tools, Assembly Guide.

• To adjust the keyboard platform downward with ease, first press the release lever, then using both hands apply a steady force at both sides of the platform. If you get initial resistance, place your free hand (not the hand pressing the release lever) towards the back of the platform and do the same, so that you apply more force forward. If this, too, is a problem, ask someone else for assistance.
• Move between standing and sitting on a regular basis. If you are just starting out with a sit-stand desk, maintain yourself in the standing position for brief intervals - don't try to stand for extended periods until your body has adjusted and become comfortable.
• If you find standing tiring, consider purchasing a quality anti-fatigue mat which can significantly increase your comfort by enabling your feet and legs to shift slightly while you work.
• Consider a leaning or saddle style of seat rather than going back to the standard office chair. Using a seat such as this can ease the load on the feet and legs while still providing most of the benefits of the fully upright standing posture.
