Ergonomic Benefits Additional Resources Usage Tips | Product Summary |
---|
Mount 2 flat panels side by side with this space-saving mount. Position each monitor independently of the other, and quickly adjust pivot and placement as your needs change. Set height at any desired position along the included 12" (30.5 cm) pole. The D-28 model provides a 28" (71.1 cm) pole and will accommodate 4 LCD monitors (creating a 2x2 grid).
A Universal Mount with 6 mounting options is included. This arm provides 200° of rotation at two pivot points and its space saving design allows approximately 3" (7.6 cm) of space behind the monitor. A friction control system provides smooth adjustment while adjusting the position of the arm.
Weight capacity is up to 22 lbs (9.98 kg) per arm and each monitor can adjust independently. The arm is VESA-monitor compatible - 75mm & 100mm VESA adapters included. | Features |
---|
- Compact Storage: Space-saving design allows approximately 3" (7.6 cm) of space behind the monitor.
- Effortless Movement: Friction control system provides smoot adjustment while adjusting the position of the arm. The user is able to adjust each monitor independently.
- Multiple Mounting Options: The Universal FLEXmount which comes with this arm can be installed in 6 different configurations.
- Through the Desk - Bolt through your desk. Requires a 3/8" hole.
- Desk Edge (Using Clamp) - Clamps to the edge of your desk, no drilling required.
- Wall Mount - This heavy-duty wall mount will provide rock-solid security for your arm and monitor. Mounts vertically to your wall surface. Not recommended for dry wall, sheet rock or plaster surfaces.
- Reverse Wall Mount - An alternative mounting method
- Side Bolt (Panel System Rear Edge) - Mount to the solid side of a desk
- Grommet Hole Clamp Mount - For Grommets 2" and larger
- If needed, optional additional Pole and Slatwall mounts are available as accessories for an additional cost.
This single mount will handle most mounting scenarios. Best of all, if you decide to change the way the arm is mounted several months after purchase, there is nothing more to buy - simply reconfigure your Universal FlexMount. The Universal FlexMount is also ideal for special mounting scenarios such as thick desk edges, desk edges with longer trim and surfaces with a small lip. Accessories are available to mount to financial trading slatwall and slotted panel furniture system. - Range of Movement: Click here to view an excellent comprehensive animation of the range of movement and cable management of this product.
| Images (Click on any thumbnail to view larger image) |
---|

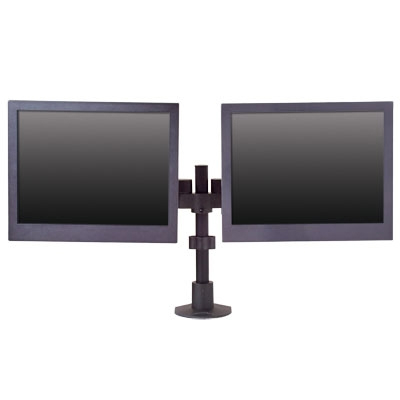

![Click to enlarge Side By Side Dual LCD Mount - front view](https://www.micwil.com/images/gallery/innovative_hat_side_by_side_dual_lcd_mount_g1_125.jpg) Side By Side Dual LCD Mount - front view

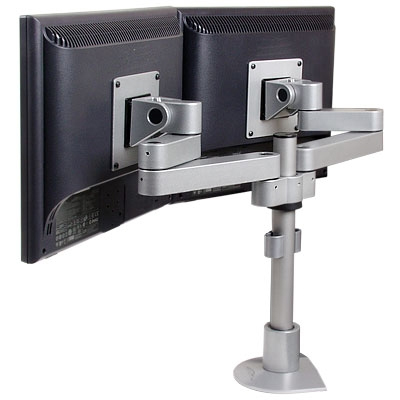

| ![Click to enlarge Side By Side Dual LCD Mount - back view](https://www.micwil.com/images/gallery/innovative_hat_side_by_side_dual_lcd_mount_g2_125.jpg) Side By Side Dual LCD Mount - back view

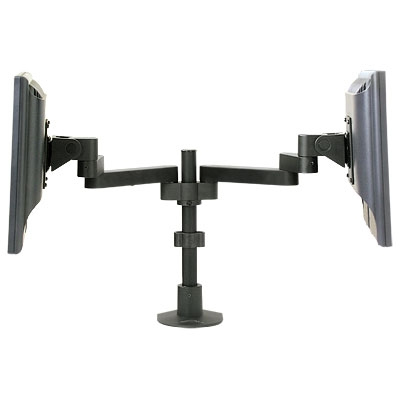

| ![Click to enlarge Side By Side Dual LCD Mount - facing away](https://www.micwil.com/images/gallery/innovative_hat_side_by_side_dual_lcd_mount_g3_125.jpg) Side By Side Dual LCD Mount - facing away

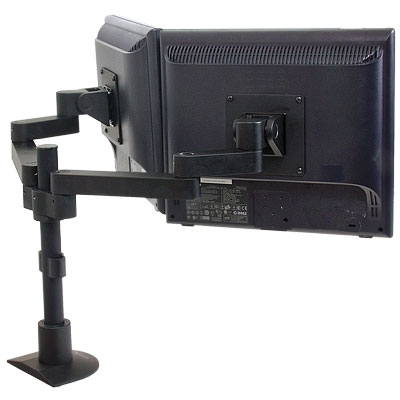

| ![Click to enlarge Side By Side Dual LCD Mount - back view, angled inward](https://www.micwil.com/images/gallery/innovative_hat_side_by_side_dual_lcd_mount_g4_125.jpg) Side By Side Dual LCD Mount - back view, angled inward
| ![Click to enlarge Side By Side Dual LCD Mount - side view, flush](https://www.micwil.com/images/gallery/innovative_hat_side_by_side_dual_lcd_mount_g5_125.jpg) Side By Side Dual LCD Mount - side view, flush
|
| Technical Specifications |
---|
- Vertical Adjustment Range:
2 LCDs: 12" (30.5 cm) 4 LCDs: 28" (71.1 cm) - Horizontal Range: 14" (35.6 cm)
- Rotation: 200° at 2 pivot points (per arm)
- Weight Capacity:
9120-S-12-FM-104 (2 Monitors): Up to 30 lbs (13.6 kg) per arm 9120-S-12-FM-124 (2 Monitors): Up to 30 lbs (13.6 kg) per arm 9120-D-28-FM-104 (4 Monitors): Up to 20 lbs (9.1 kg) per arm 9120-D-28-FM-124 (4 Monitors): Up to 20 lbs (9.1 kg) per arm - VESA Mount Compatibility:
9120-S-12-FM-104 (2 Monitors): 100mm VESA with Quick-Release Adapter 9120-S-12-FM-124 (2 Monitors): 75 & 100m VESA (100 mm Quick Release by Special Order) 9120-D-28-FM-104 (4 Monitors): 100m VESA with Quick-Release Adapter 9120-D-28-FM-124 (4 Monitors): 100m VESA with Quick-Release Adapter - Screen Size: Up to 24"
- Colour: Black or Silver
- Instructions: Click here to review the instruction booklet for this product.
- Mounting Options:
The Universal FLEXmount which comes with this arm can be installed in 6 different configurations which will handle most mounting scenarios. Best of all, if it becomes necessary to change the way the arm is mounted several months after purchase, there is nothing more to buy - simply reconfigure the universal FLEXmount. This convertible mounting solution is also ideal for what can be challenging mounting scenarios for other arms such as thick desk edges, desk edges with longer trim and surfaces with a small lip. Additional mounting accessories are available to mount to financial trading slatwall, slotted panel furniture systems, and poles. - Through the Desk - Bolt through the desk. Requires a 3/8" hole.
- Desk Edge (Using Clamp) - Clamps to the edge of the desk, no drilling required.
- Wall Mount - This heavy-duty wall mount will provide rock-solid security for the arm and monitor. Mounts vertically to the wall surface. Not recommended for dry wall, sheet rock or plaster surfaces.
- Reverse Wall Mount - An alternative mounting method
- Side Bolt (Panel System Rear Edge) - Mount to the solid side of a desk
- Grommet Hole Clamp Mount - For Grommets 2" and larger
- Warranty: 10 Years
| Models |
---|
For pricing, availability or to order this product, visit our online store. | Model # | Description |
---|
9120-S-12-FM-104 | 2 LCD mount, black | 9120-S-12-FM-124 | 2 LCD mount, silver | 9120-D-28-FM-104 | 4 LCD mount, black | 9120-D-28-FM-124 | 4 LCD mount, silver |
| Accessories |
---|
Model # | Description |
---|
8336-QR-124 | Quick Release Adapter, Silver Allows for quick attach and release of the monitor. Accommodates VESA 75 and 100 monitors. Pivots and turns with user-adjustable tension. | 8336-QR-104 | Quick-Release Tilter, Black | 8171-6-104 | 6" Extender Tube, Black | 8171-6-124 | Large Extender Tube, Silver This extender tube will raise the height of your arm by 6" (recommended), which will allow you the full range of vertical movement when the arm is deployed over a desk top surface. It does not impede 360° rotation. SPECIAL ORDER ONLY. NO 30 DAY CSG |
|
|
