Ergonomic Benefits Features Additional Resources Usage Tips Accessories | Product Summary |
---|
The Long-reach Side-by-Side LCD Mount from Innovative Office Products allows you to position two monitors side by side, independently of each other, in any direction up to 17.5" from the pole. Reposition monitors with the touch of a finger, or adjust height along the pole as needed. | Images (Click on any thumbnail to view larger image) |
---|

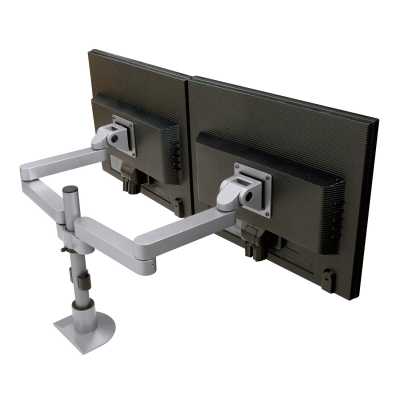

![Click to enlarge Long-reach Side-by-Side LCD Mount](https://www.micwil.com/images/gallery/innovative_hat_long_reach_side_by_side_lcd_mount_g1_125.jpg) Long-reach Side-by-Side LCD Mount

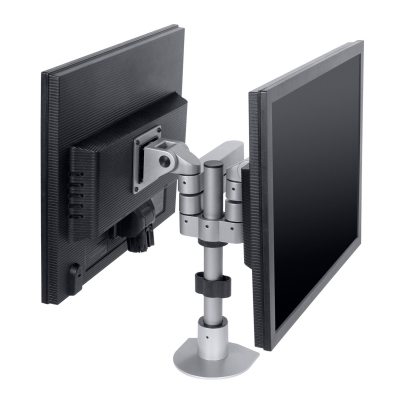

| ![Click to enlarge Long-reach Side-by-Side LCD Mount - back to back orientation](https://www.micwil.com/images/gallery/innovative_hat_long_reach_side_by_side_lcd_mount_g2_125.jpg) Long-reach Side-by-Side LCD Mount - back to back orientation

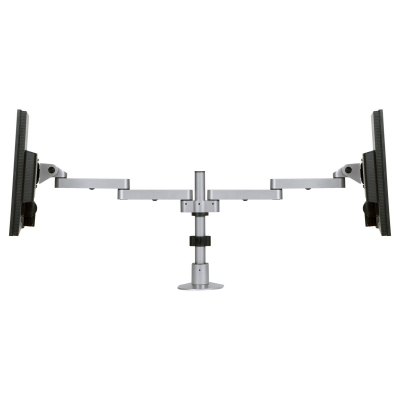

| ![Click to enlarge Long-reach Side-by-Side LCD Mount - maximum extension](https://www.micwil.com/images/gallery/innovative_hat_long_reach_side_by_side_lcd_mount_g3_125.jpg) Long-reach Side-by-Side LCD Mount - maximum extension

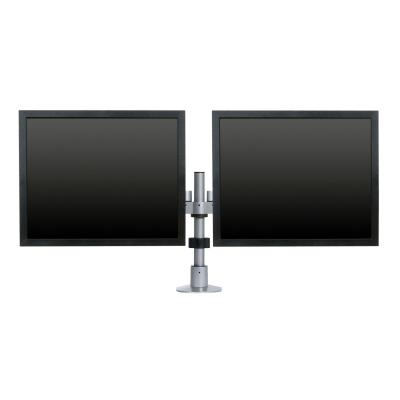

| ![Click to enlarge Long-reach Side-by-Side LCD Mount - side by side orientation](https://www.micwil.com/images/gallery/innovative_hat_long_reach_side_by_side_lcd_mount_g4_125.jpg) Long-reach Side-by-Side LCD Mount - side by side orientation

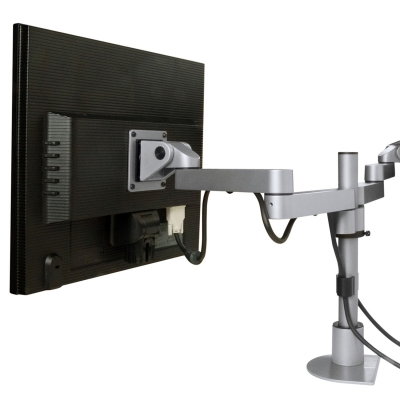

| ![Click to enlarge Long-reach Side-by-Side LCD Mount - cable management](https://www.micwil.com/images/gallery/innovative_hat_long_reach_side_by_side_lcd_mount_g5_125.jpg) Long-reach Side-by-Side LCD Mount - cable management
|
| Technical Specifications |
---|
- Mounting Options:
The Universal FLEXmount which comes with this arm can be installed in 6 different configurations which will handle most mounting scenarios. Best of all, if it becomes necessary to change the way the arm is mounted several months after purchase, there is nothing more to buy - simply reconfigure the universal FLEXmount. This convertible mounting solution is also ideal for what can be challenging mounting scenarios for other arms such as thick desk edges, desk edges with longer trim and surfaces with a small lip. Additional mounting accessories are available to mount to financial trading slatwall, slotted panel furniture systems, and poles. - Through the Desk - Bolt through the desk. Requires a 3/8" hole.
- Desk Edge (Using Clamp) - Clamps to the edge of the desk, no drilling required.
- Wall Mount - This heavy-duty wall mount will provide rock-solid security for the arm and monitor. Mounts vertically to the wall surface. Not recommended for dry wall, sheet rock or plaster surfaces.
- Reverse Wall Mount - An alternative mounting method
- Side Bolt (Panel System Rear Edge) - Mount to the solid side of a desk
- Grommet Hole Clamp Mount - For Grommets 2" and larger
- Articulation: 200° at 2 points
- Rotation: Supports both landscape and portrait orientation
- Maximum Extension (each arm from pole): 17.5" (44.5 cm)
- VESA Mount Compatibility: 100 mm Quick-Release Adapter
- Weight range: Up to 30 lbs (13.6 kg) per monitor
- Warranty: 10 Years
| Models |
---|
For pricing, availability or to order this product, visit our online store. | Model # | Description |
---|
9163-S-14-FM-104 | Long-reach Side-by-Side LCD Mount, Single 14" Pole, Black | 9163-S-14-FM-124 | Long-reach Side-by-Side LCD Mount, Single 12" Pole, Silver | 9163-D-28-FM-104 | Long-reach Side-by-Side LCD Mount, Dual 28" Pole, Black | 9163-D-28-FM-124 | Long-reach Side-by-Side LCD Mount, Dual 28" Pole, Silver |
|
|
