Product Summary |
---|
This LCD mount is a modern, ultra-slim arm designed to complement any modern office. Installation is simple with a built-in desk-clamp or grommet mechanism. The arm can easily and intuitively be adjusted with minimal effort. This is an arm designed to bring back elegance to the office while maintaining functionality. A Quick Release adapter is included with arm. |
Features |
---|
- Compact storage: EVO extends up to 16" (40.6 cm) and folds back upon itself so that it is out of the way when not in use.
- Effortless movement: Fingertip adjustment of monitor height and range. All movement is entirely intuitive - there are no buttons or levers. Simply move the monitor to the desired position.
|
Images (Click on any thumbnail to view larger image) |
---|

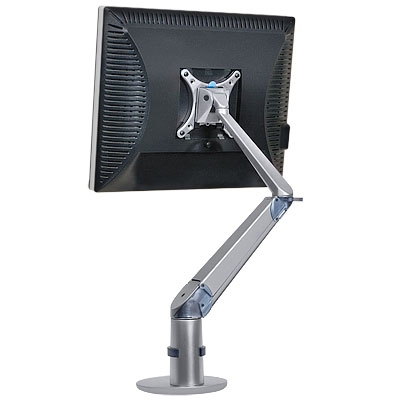

![Click to enlarge EVO LCD 'Modern' Arm - 45° arm](https://www.micwil.com/images/gallery/innovative_hat_evo_lcd_modern_arm_g1_125.jpg) EVO LCD 'Modern' Arm - 45° arm

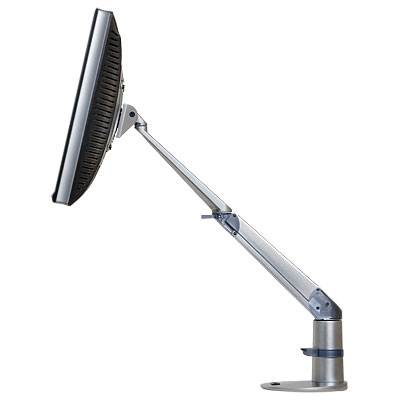

| ![Click to enlarge EVO LCD 'Modern' Arm - straight long arm](https://www.micwil.com/images/gallery/innovative_hat_evo_lcd_modern_arm_g2_125.jpg) EVO LCD 'Modern' Arm - straight long arm

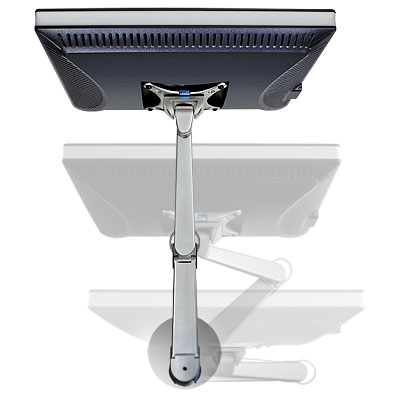

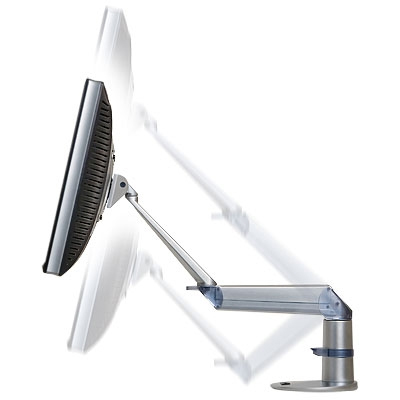

| ![Click to enlarge EVO LCD 'Modern' Arm - extension range](https://www.micwil.com/images/gallery/innovative_hat_evo_lcd_modern_arm_g3_125.jpg) EVO LCD 'Modern' Arm - extension range
| ![Click to enlarge EVO LCD 'Modern' Arm - cable management](https://www.micwil.com/images/gallery/innovative_hat_evo_lcd_modern_arm_g4_125.jpg) EVO LCD 'Modern' Arm - cable management
| |
|
Technical Specifications |
---|
- Vertical adjustment: 5500: 2.5" to 12.5" (6.4 cm to 31.8 cm)
5507: 3.5" to 13.5" (8.9 cm to 34.3 cm) 5545: 8" to 18" (20.3 cm to 45.7 cm) - Horizontal adjustment: 5500: 12" (30.5 cm)
5507: 18" (45.7 cm) 5545: 16" (40.6 cm) - Wire management: Integrated cable managementreduces workspace clutter.Cables are clipped beneatharm.
- LCD Weight: 13 lbs to 21 lbs (5.90 kgto 9.52 kg)
- Rotation: Rotates 360° at 3points
- Monitor tilt: 185°
- Monitor pivot: Landscape or portrait
- Colour: Satin chrome
- Monitor compatibility: VESA MIS-D, 100/75, CCompliant
- Instructions: Click here to review the instruction booklet for this product.
- Mounting options:
- DEFAULT MOUNT - Desk Edge/Grommet Clamp Mount: Clamps to desks up to 2" thick, or to grommets at least 2" diameter.
- OPTIONAL ADDITIONAL MOUNTS (must be ordered as accessories)
- Wall Mount: Securely attach your EVO LCD arm to the wall. The EVO Wall Mount perfectly matches your EVO Series arm.
- Slatwall Mount: Conserve desk space by mounting your monitor arm directly to your slatwall. The EVO Slatwall Mount matches your EVO Series arm, and also features secure attachment as well as fast installation.
- Slatrail Mount: Conserve desk space by mounting your monitor arm directly on a slatrail. The EVO Slatrail Mount matches your EVO Series arm, and also features secure attachment as well as fast installation.
- Warranty: 5 years
- Range of motion: Click here for the range of motion diagram
|
Models |
---|
For pricing, availability or to order this product, visit our online store. |
Model # | Description |
---|
5545-450-QR-FM | 45° | 5507-450-QR-FM | Straight, long | 5500-450-QR-FM | Straight, short |
|
