Product Summary |
---|
The Envoy Articulating Monitor Arm from Innovative-HAT requires minimal effort to adjust for any desktop application. Rated for monitors from 2.2 to 19.8 lbs, this arm comes with a streamlined cable management system and an easy to install mounting system, either clamping or through the desk. Standard colours are black and silver. |
Images (Click on any thumbnail to view larger image) |
---|

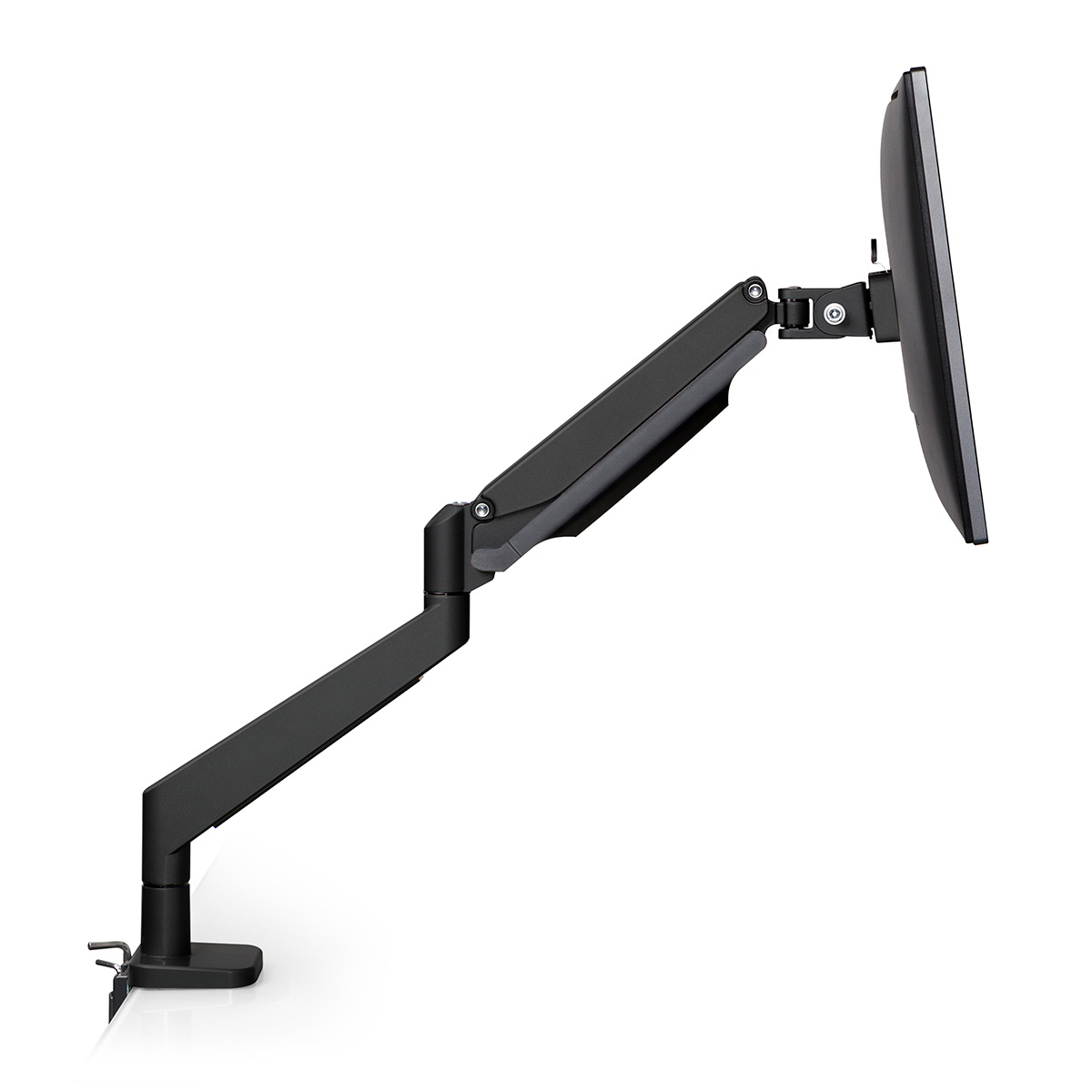

![Click to enlarge Envoy Articulating Monitor Arm](https://www.micwil.com/images/gallery/innovative_hat_envoy_articulating_monitor_arm_g1_125.jpg) Envoy Articulating Monitor Arm

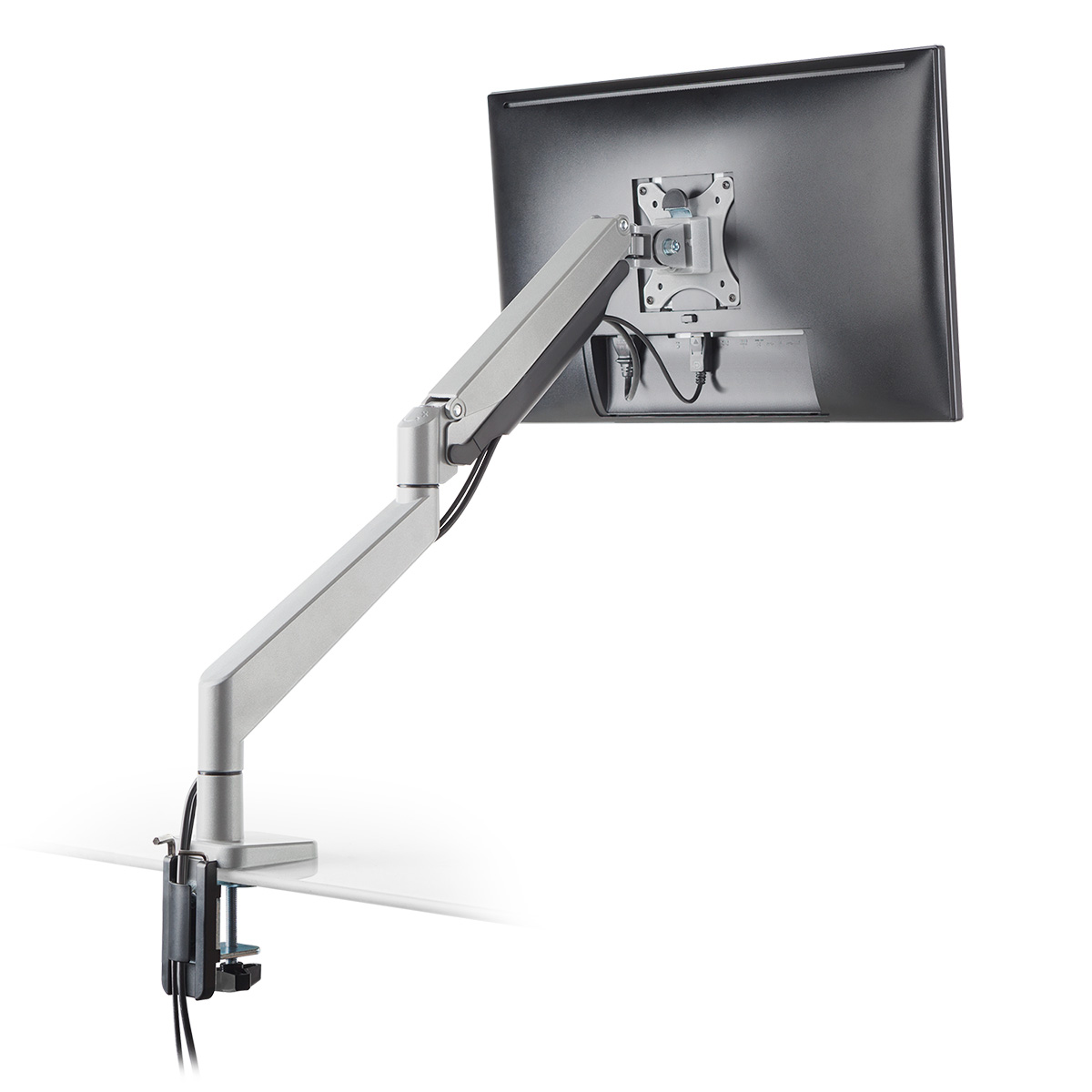

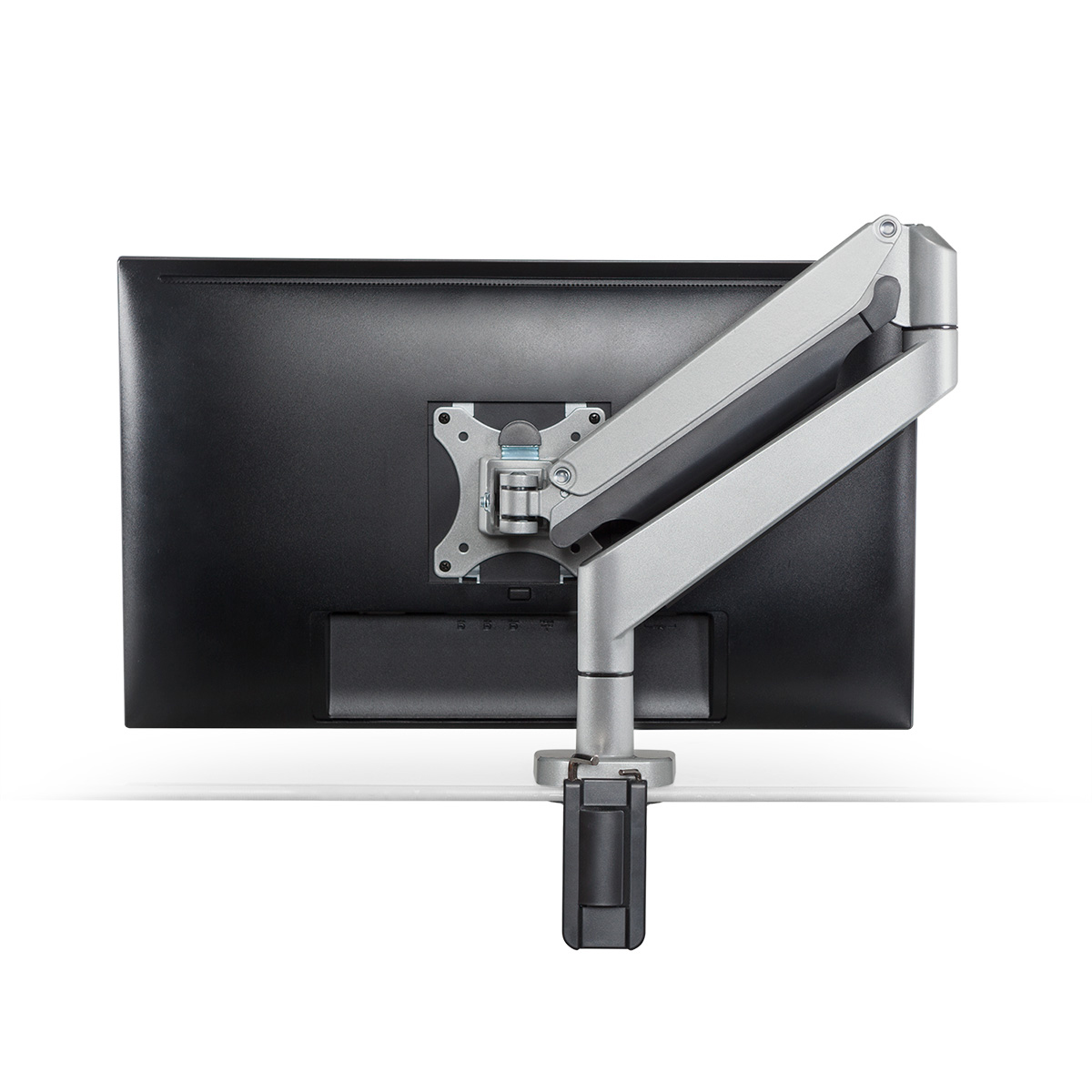

| ![Click to enlarge Envoy Articulating Monitor Arm - Back view](https://www.micwil.com/images/gallery/innovative_hat_envoy_articulating_monitor_arm_g2_125.jpg) Envoy Articulating Monitor Arm - Back view

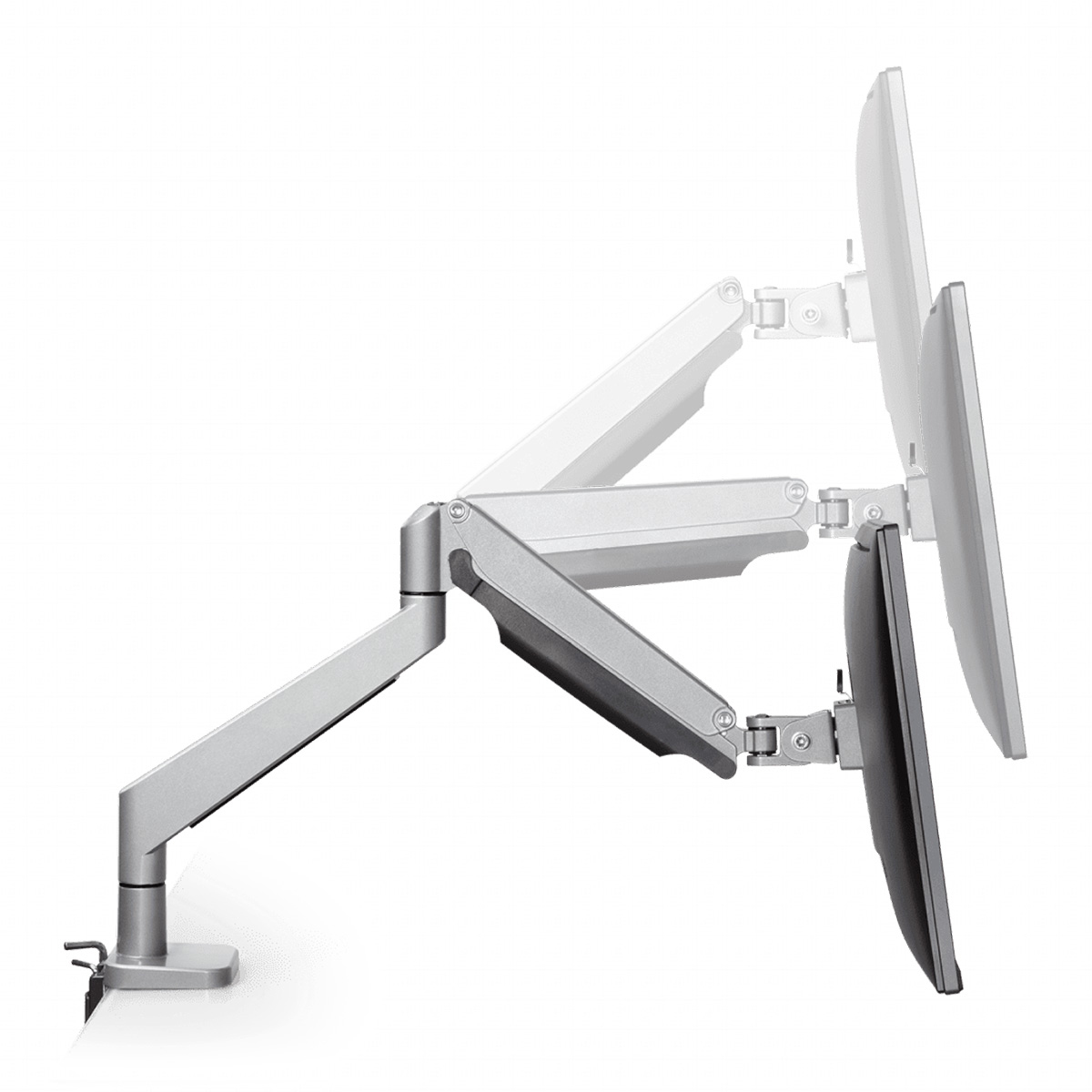

| ![Click to enlarge Envoy Articulating Monitor Arm - Height Range](https://www.micwil.com/images/gallery/innovative_hat_envoy_articulating_monitor_arm_g3_125.jpg) Envoy Articulating Monitor Arm - Height Range
| ![Click to enlarge Envoy Articulating Monitor Arm - Highest Range](https://www.micwil.com/images/gallery/innovative_hat_envoy_articulating_monitor_arm_g4_125.jpg) Envoy Articulating Monitor Arm - Highest Range
| ![Click to enlarge Envoy Articulating Monitor Arm - Installation](https://www.micwil.com/images/gallery/innovative_hat_envoy_articulating_monitor_arm_g5_125.jpg) Envoy Articulating Monitor Arm - Installation
|
|
Additional Resources |
---|
|
Technical Specifications |
---|
- Adjustment Range: 13.2" up and down
- Minimum Height: 7.0" above mounting point
- Maximum Height: 20.2" above mounting point
- Max Monitor Size: Up to 32"
- Weight Capacity: 2.2 to 19.8 lbs
- Extension Range: 23.7"
- Tilt: 180°
- Pivot: Landscape/Portrait
- Rotation: 270° at base, 360° at mid joint, 180° at upper joint
- VESA Compatible: Yes, 75 and 100mm, quick-release adapter included
- Mount Options: Desk Edge, Thru-Desk
- Warranty: 10 years manufacturer
|
Models |
---|
For pricing, availability or to order this product, visit our online store. |
Model # | Description |
---|
ENVOY-1-BLK | Black, supports monitors 2.2 - 19 lbs. | ENVOY-1-SVL | Silver, supports monitors 2.2 - 19 lbs. |
|
