EZ-RYZE SOLO Foot Rest

by ErgoVerse

Additional Resources Accessories

Designed with musicians in mind, the EZ-RYZE SOLO Foot Rest from ErgoVerse offers virtually effortless adjustment of height for optimal performance posture. The hands-free height adjustment relies on a locking pressurized gas spring that provides upward force. Once the lock release button is activated using a heel, the foot is used to counter the force of the spring and position the platform to the desired height before lifting the heel to lock the foot rest in at any point between 4.3" and 8.75".

The non-locking platform tilts freely between 3° and 20°, encouraging flexing of the feet and ankles during use. Arced ridges on the platform prevent the foot from slipping. The platform is formed from strong ABS Plastic with a sturdy steel frame and base providing stability and support. Large rubber feet on the base ensure secure positioning.

Caution: Non-locking footrests, such as the EZ-RYZE SOLO described here, are not recommended for use in a standing position.

Ergonomic Benefits

Reduces Strain on the Foot and Ankle - Many musicians sit with one foot positioned forward of the other, putting the foot into a position called plantar flexion. Plantar flexion can lead to shortening of the muscles along the backs of the legs. Over time, sustained plantar flexion can cause the calf muscles to become tight and stiff which, in turn, can lead to a range of uncomfortable symptoms in the foot. The non-locking platform on the EZ-RYZE SOLO encourages flexing of the ankle joint, promoting healthy movement at the joint, and reducing strain caused by sustained plantar flexion, or sustained dorsiflexion.

Improves Upper Body Posture - The EZ-RYZE footrest provides musicians with greater stability and support. The improved posture can reduce the risk of upper back, shoulder and neck pain. The range of movement offered by the EZ-RYZE SOLO means even those of shorter stature can reap the benefits.

Reduces Risk of Injury and Strain - EZ-RYZE footrests are noticeably easier to adjust than other footrests with similar capabilities. The simple button release and gas spring facilitate on-the-fly platform height adjustment with the foot.

Features

Single Foot Platform: The platform surface on the EZ-RYZE SOLO is intended to support a single foot. The design offers support to musicians playing from a seated position, and others who work from a seated position with one foot elevated.
Non-Locking, Tilting Platform: Encourages movement at the ankles, and promotes circulation during lengthy sessions.
Gas Spring: The EZ-RYZE SOLO Foot Rest employs a gas spring for smooth and quiet adjustment.

A "gas spring" uses gas contained in a cylinder and compressed by a piston to exert a force pneumatically. Common applications include height adjustment in footrests (as in this description), as well as office chairs and premium monitor arms.
Wide Range of Height Adjustment: The wide range of vertical adjustment offered by the EZ-RYZE SOLO makes it well-suited for most individuals, even those of shorter stature.
Single Foot Adjustment: Height adjustments can be made with just a single foot, without interrupting playing or losing focus.
Slip Resistant Surface: Slightly raised arcing ridges help to prevent the foot from slipping.
Robust Construction: The EZ-RYZE SOLO Foot Rest features a heavy-duty steel frame that will last for many years. The foot platform is formed from strong ABS Plastic.

Images (Click on any thumbnail to view larger image)

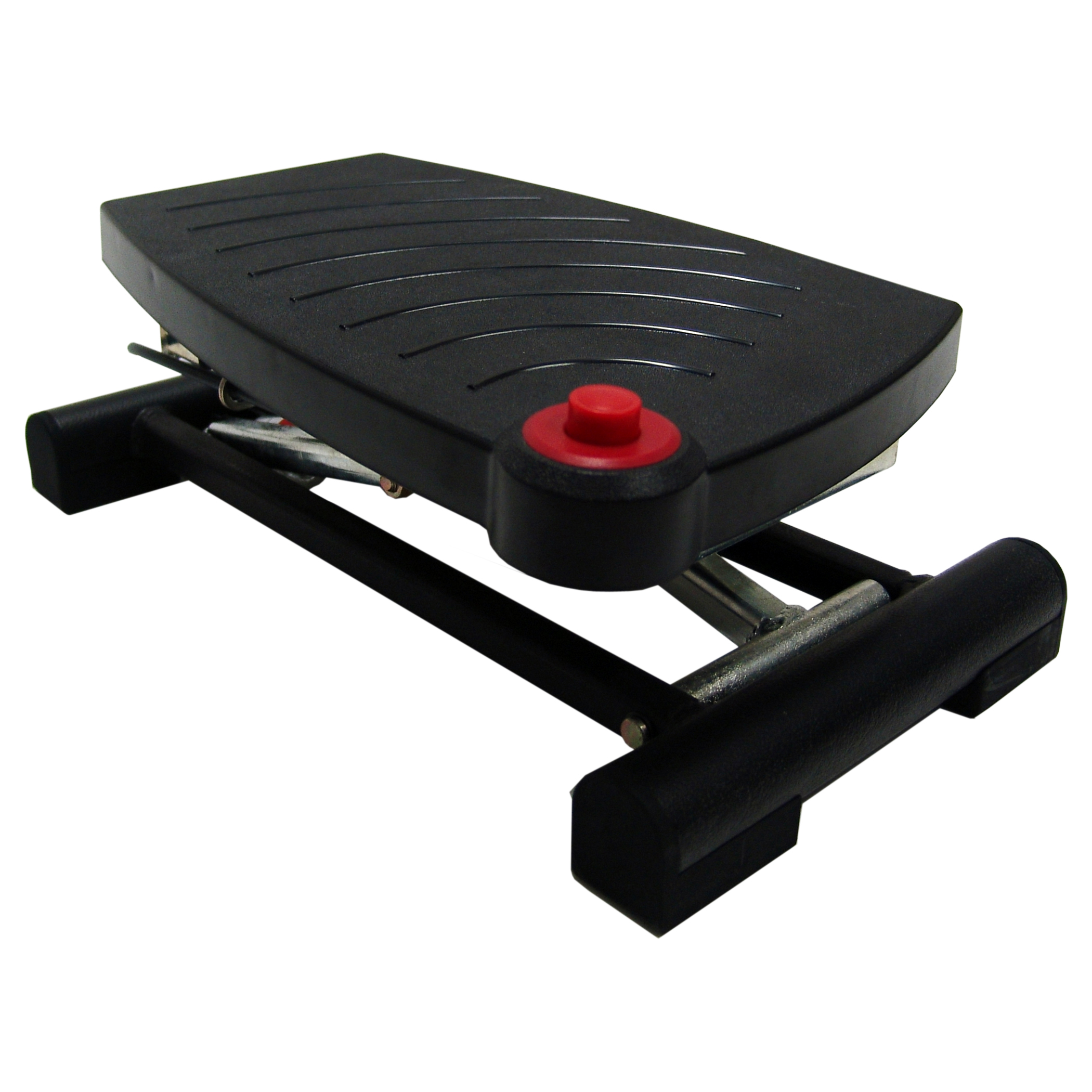

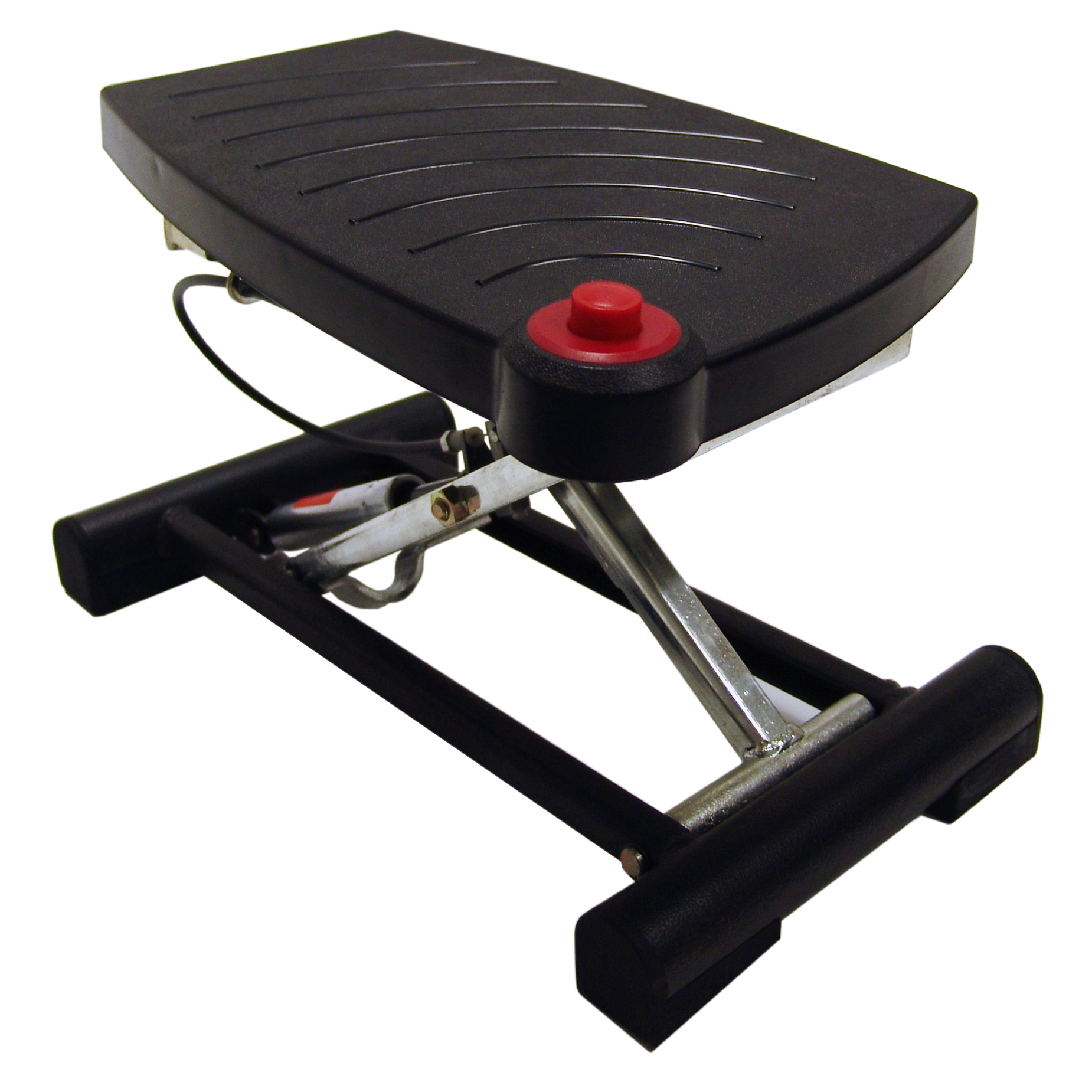

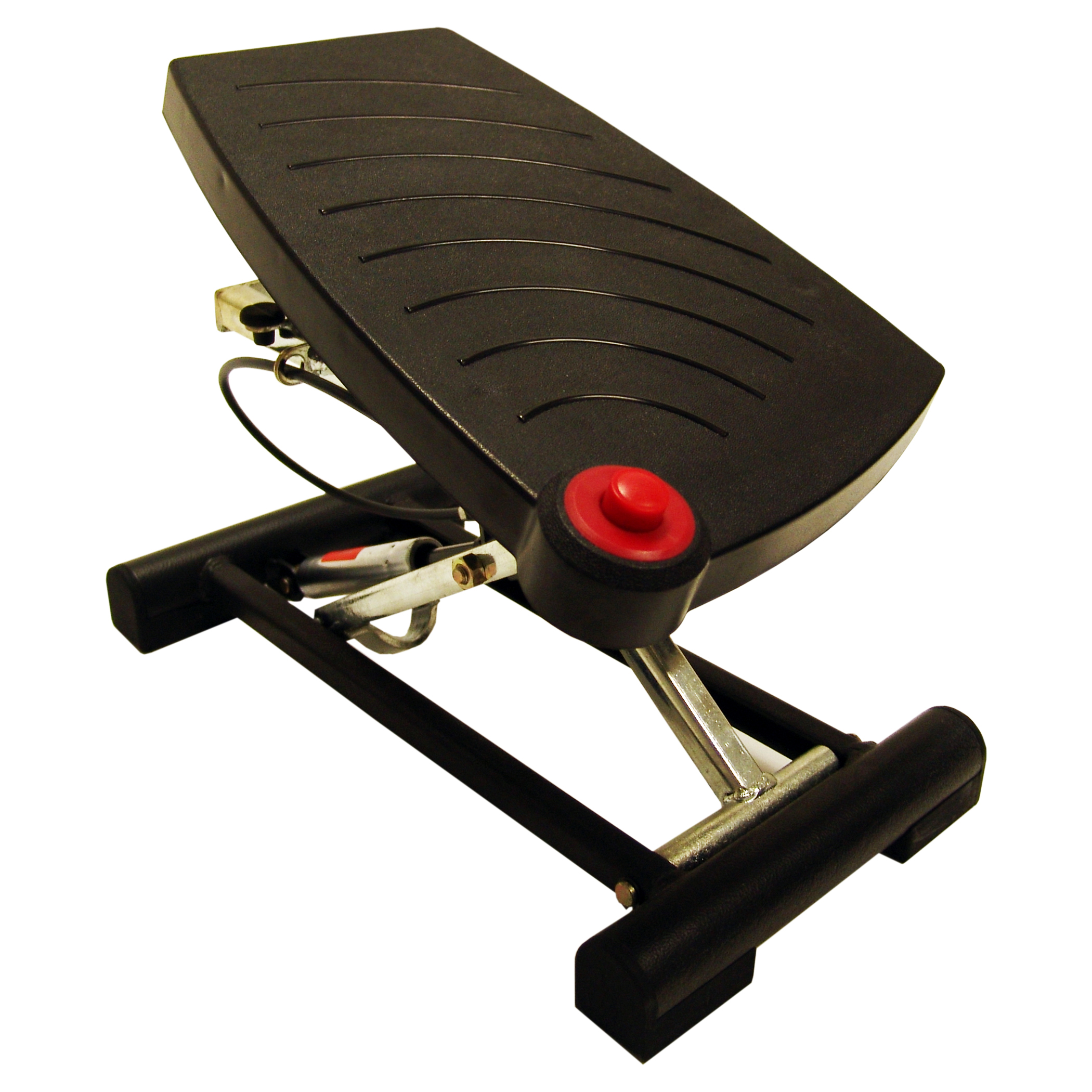

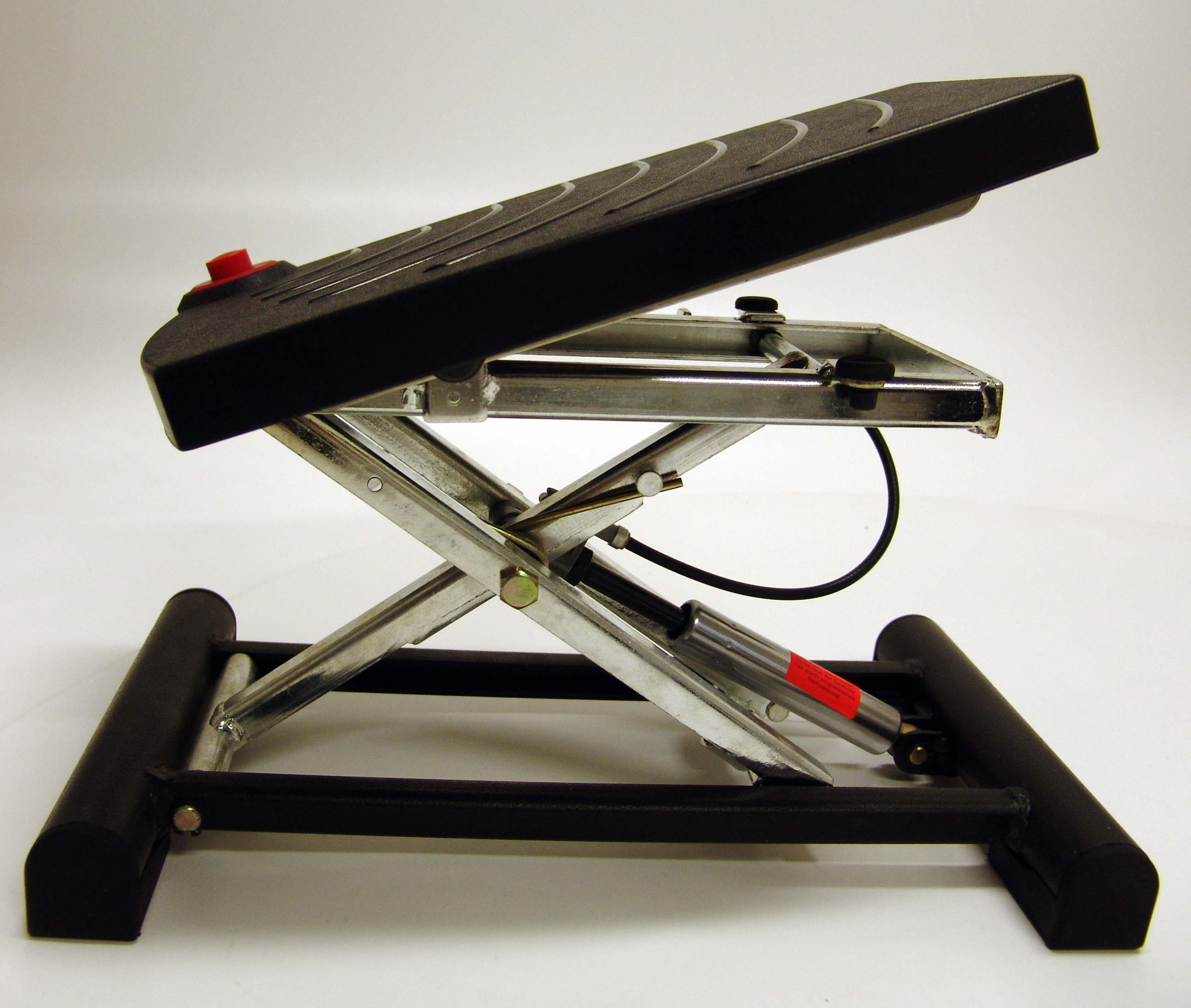

EZ-RYZE SOLO Foot Rest - Tilting Platform	EZ-RYZE SOLO Foot Rest - Adjustable Height	EZ-RYZE SOLO Foot Rest - Wide Height Range	EZ-RYZE SOLO Foot Rest - Robust Construction
EZ-RYZE SOLO Foot Rest for Guitarists

Technical Specifications

Adjustment Range: 4.3" - 8.75" (11 cm - 22.2 cm)
Angle Adjustment: 3° - 20°, Non-Locking
Foot Platform Dimensions: 7.9" W x 12.6" D (20 cm x 32 cm)
Base Dimensions: 8.25" W x 15" D (21 cm x 38 cm)
Weight: 9.5 lbs (4.3 kgs)
Warranty: 5 Years
Package Contents: EZ-RYZE SOLO Foot Rest, Usage Guide

Usage Tips

Practice activating the release button. You will find that the release button is easily activated with the ball or the heel of your foot. The EZ-RYZE SOLO also requires very little effort to overcome the pneumatic resistance when you want to adjust the height of the footplate.

Models

Model #	Description
ESFR-13207	EZ-RYZE SOLO Foot Rest.
