ErgoUP Single Leg Rest

The ErgoUP line of leg rests has been designed to position a leg or knee in an elevated and easily replicable position. Compatible with most contemporary office chairs, the ErgoUp Single Leg Rest is capable of supporting one leg at a time, and is the smallest size available. The ErgoUP keeps the foot, knee and hip properly aligned while elevating the foot and lower leg. It is often used following surgery in order to alleviate swelling or edema, relieve knee and foot pain, increase blood circulation, and decrease fatigue. For individualized comfort the ErgoUP is available with either Standard or Memory Foam padding, both of which are also available with fabric or leatherette coverings.

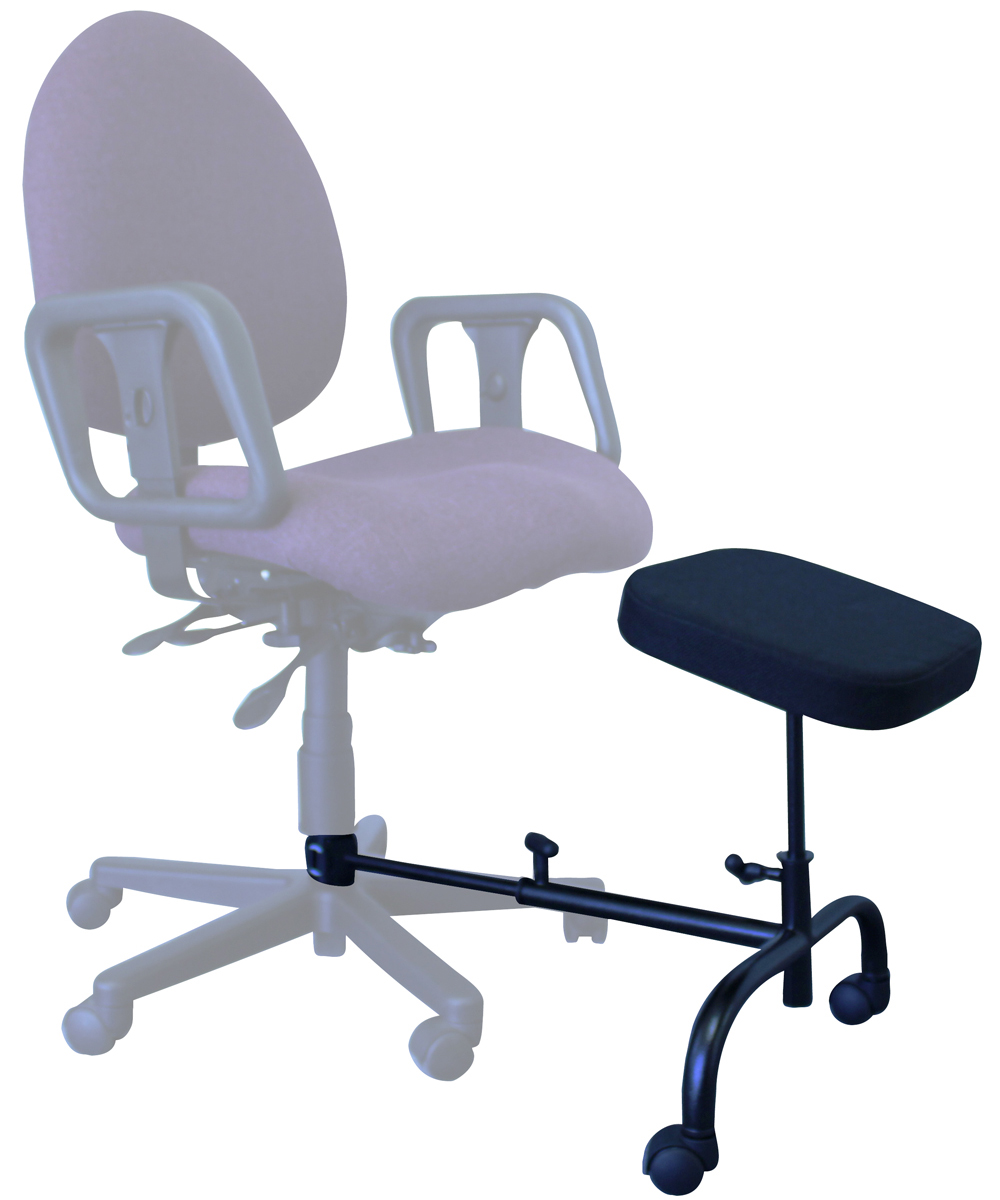

The ErgoUP can be attached to most standard office chairs (see note) and functions much like an ottoman does in a residential environment. The support attaches to the central post of the office chair with a velcro strap and rotates 360° to move to the side or rear of chair as required. It can also be fully adjusted in height and distance from the seat. The 1.5" thick square pad is 12" wide x 12" deep and automatically aligns itself to provide the most comfortable angle of support. Unlike some freestanding leg supports, because the ErgoUP is connected directly to the base of the chair it is ideal for situations where a consistent or replicable position is desired.

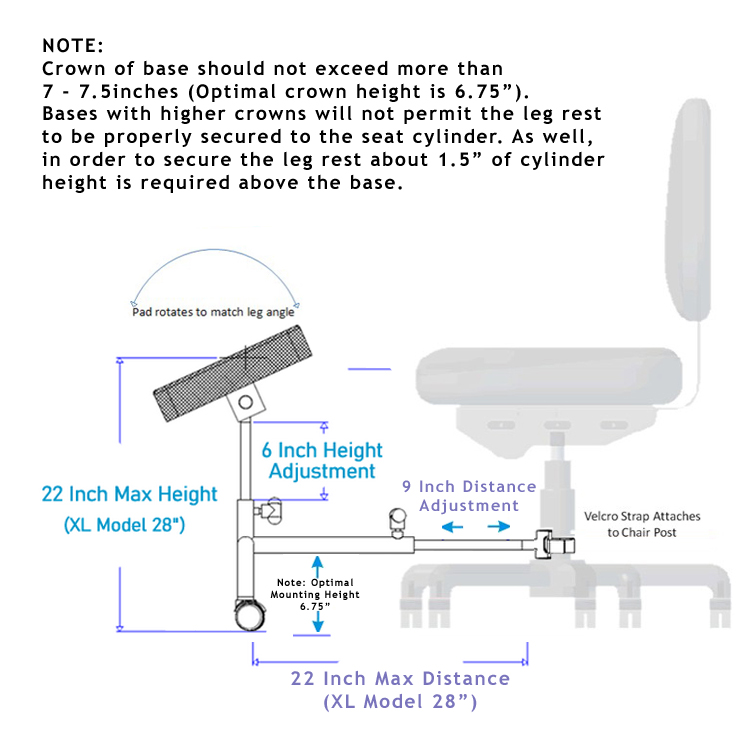

NOTE: Bases with an unusually high crowning may not be compatible with this product. Please see the Dimensions image on the Detailed Specifications Page.

• Height and Distance Adjustable: The leg support ottoman can be adjusted in height (from 14" to 24") and distance from the cylinder on the seat (from 16" to 20"), ensuring proper positioning of the leg support for all except those of above-average height (Those above aerage height have the option of purchasing an Extension which extends the range up to 26").
• Adjustable Tilt: The tilt of the pad automatically conforms to the angle of the leg, providing optimal comfort and ergonomic benefit.
• Two Cushioning Options: Regular foam pads provide soft but firm support which quickly springs back to shape. Memory Foam pads contour to the body contours and provide a feeling of softer support, but take longer to return to the default position. If concern exists regarding the possibility of pressure points the Memory Foam is the preferred choice.
• Choice of Cover Material: The furniture fabric covering of the pads breathes better than leatherette pads. This aids in preventing hot spots and sweating. However, the leatherette pads are more easily cleaned and disinfected.
• Versatile and Portable Design: The ErgoUP attaches to the chair lift cylinder and is able to rotate 360° around the chair. This means it is possible to easily pivot it to the side or back into the supporting position without an awkward movement. Getting in and out of the seat is not impeded by the ErgoUP; individuals can simply swivel the support to one side or the other.

• ErgoUp Installation Instructions: PDF

• Horizontal Distance from Chair Mount to Centre of Leg Rest:
  Standard: 16" (40.6 cm)to 20" (50.8 cm)
  With Optional Extension: 22" (55.7 cm) to 26" (66 cm)
• Vertical Adjustment Range for Leg Rest:
  Minimum: 14" (35.6 cm)
  Maximum: 24" (61.0 cm)
• Angle of Adjustment for Leg Rest:
  Minimum: -90 degrees
  Maximum: +90 degrees
  NOTE: The support tilts freely, aligning to provide the most comfortable angle.
• Pad Width: 12" (30.48 cm)
• Pad Length: 12" (30.48 cm)
• Pad Thickness: 1.5" (3.81 cm)
• Colour: Black
• Shape: Flat
• Pad Covering Material: Furniture Fabric or Leatherette
• Pad Inner Material: Standard Foam or Memory Foam


• Warranty: One Year on parts and manufacturing defects - does not cover wear and tear
• Package Contents: ErgoUp Single Leg Rest, Assembly/Installation Guide

• When making initial height adjustments and determining the best distance to position the leg rest from the chair it is suggested that you enlist the assistance of another person who can perform these adjustments while you are seated comfortably. This will ensure that the height is appropriate. The angle will automatically adjust to match your seating position.
• When getting up or sitting down, always ensure that the ErgoUP is swung out of the way to ensure that it does not become a safety hazard.
• Unless directed otherwise by medical service providers it may be a good idea to occasionally remove the leg from the pad and adopt a more traditional sitting position, even if for short periods.
