StyleView Combo System with Worksurface

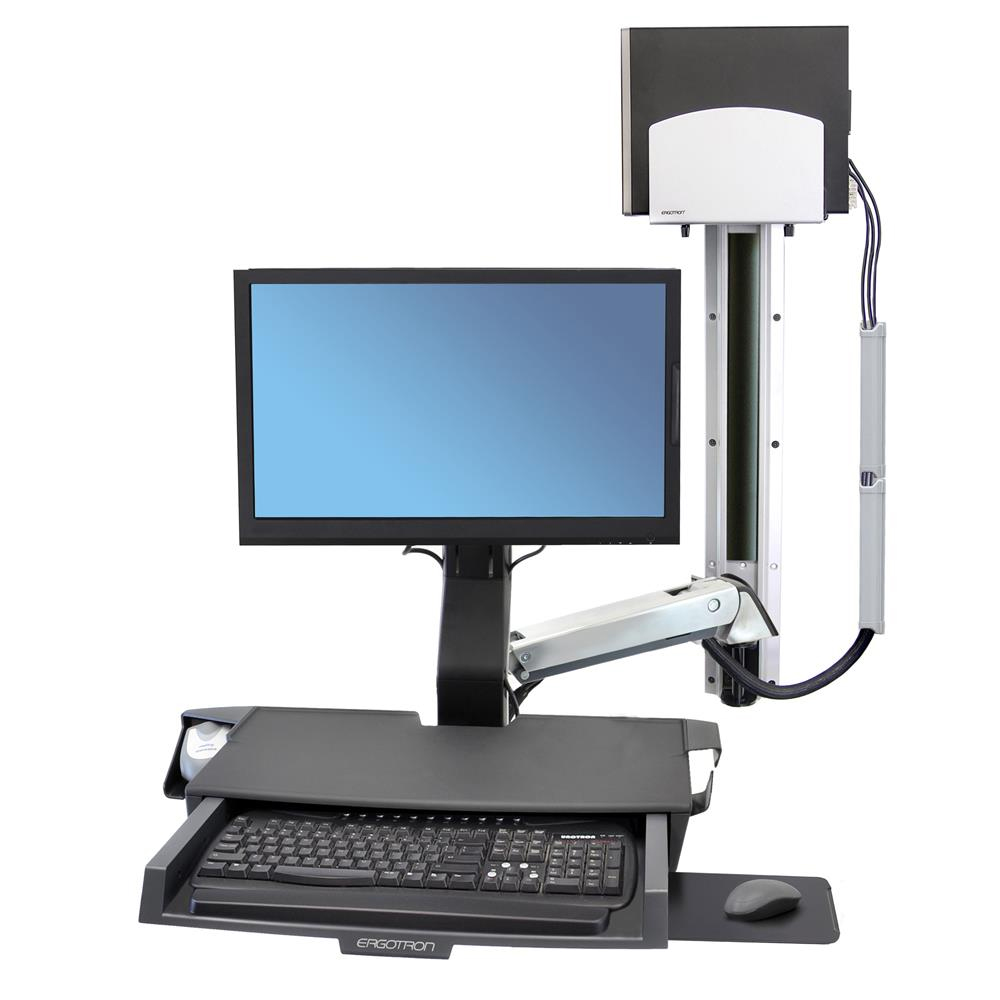

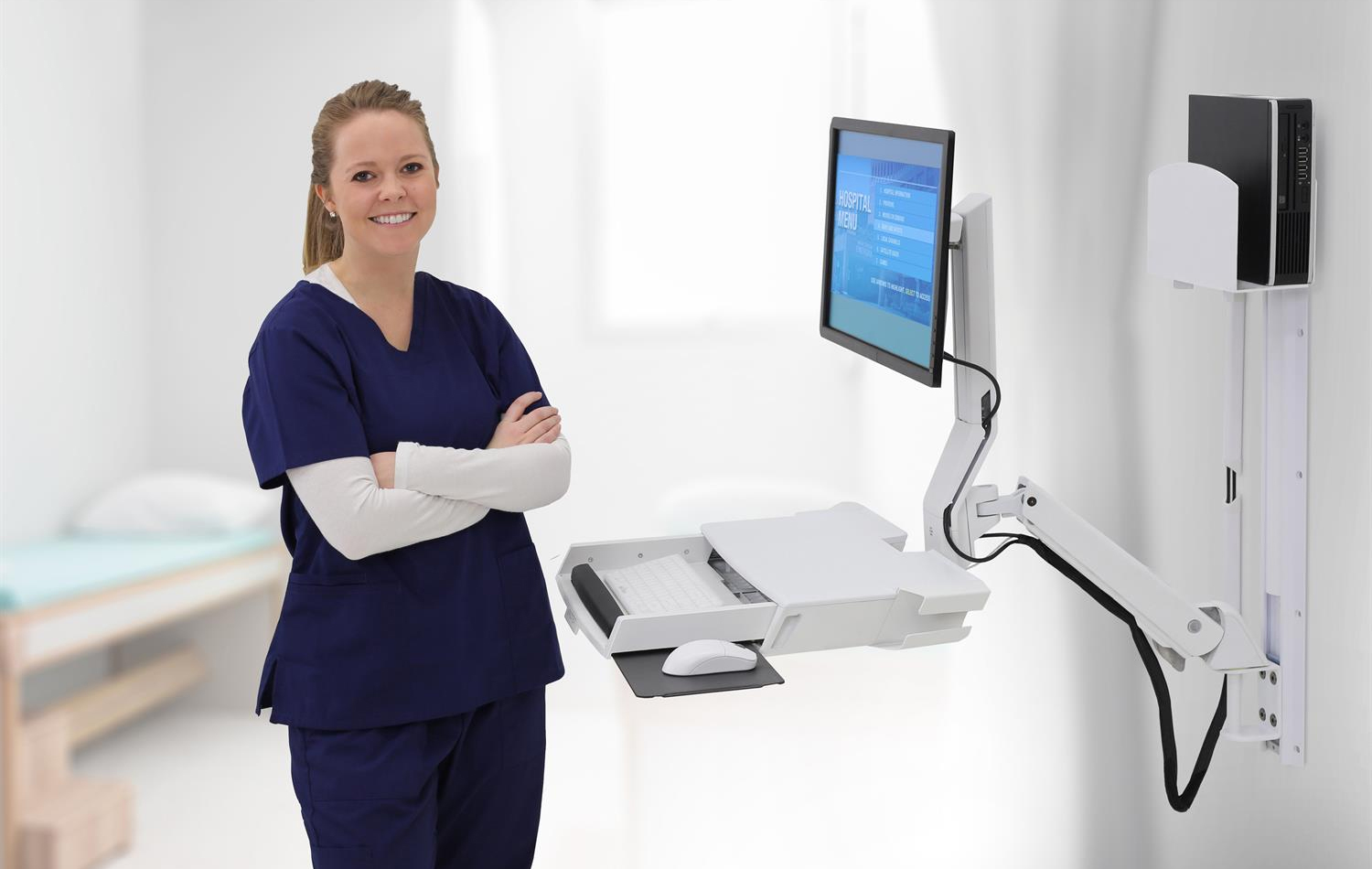

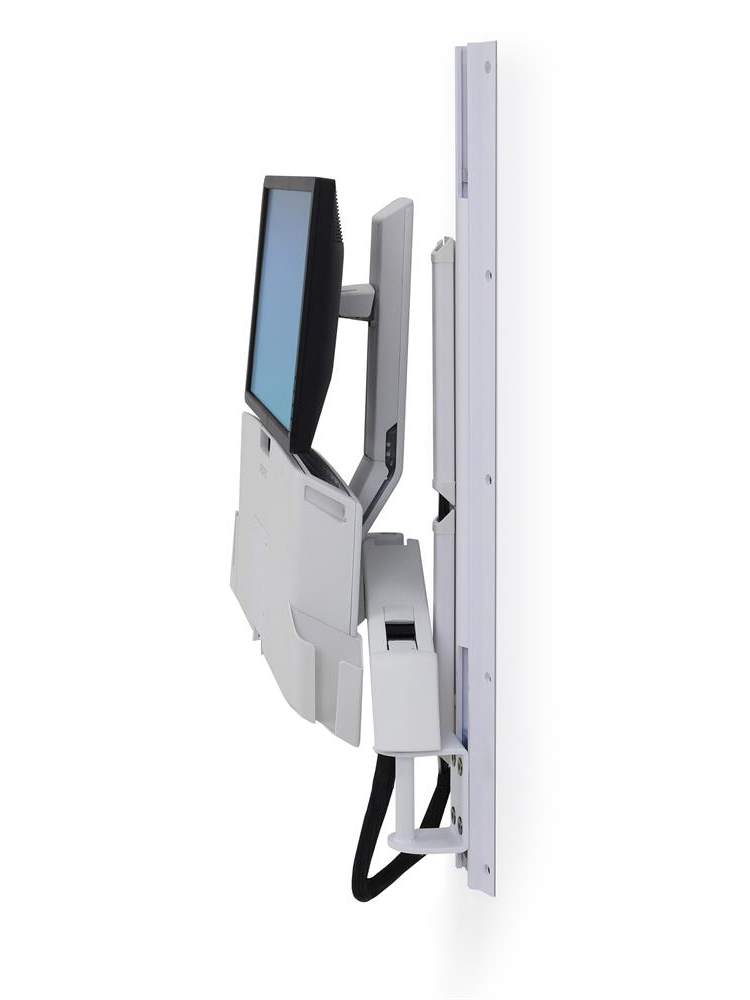

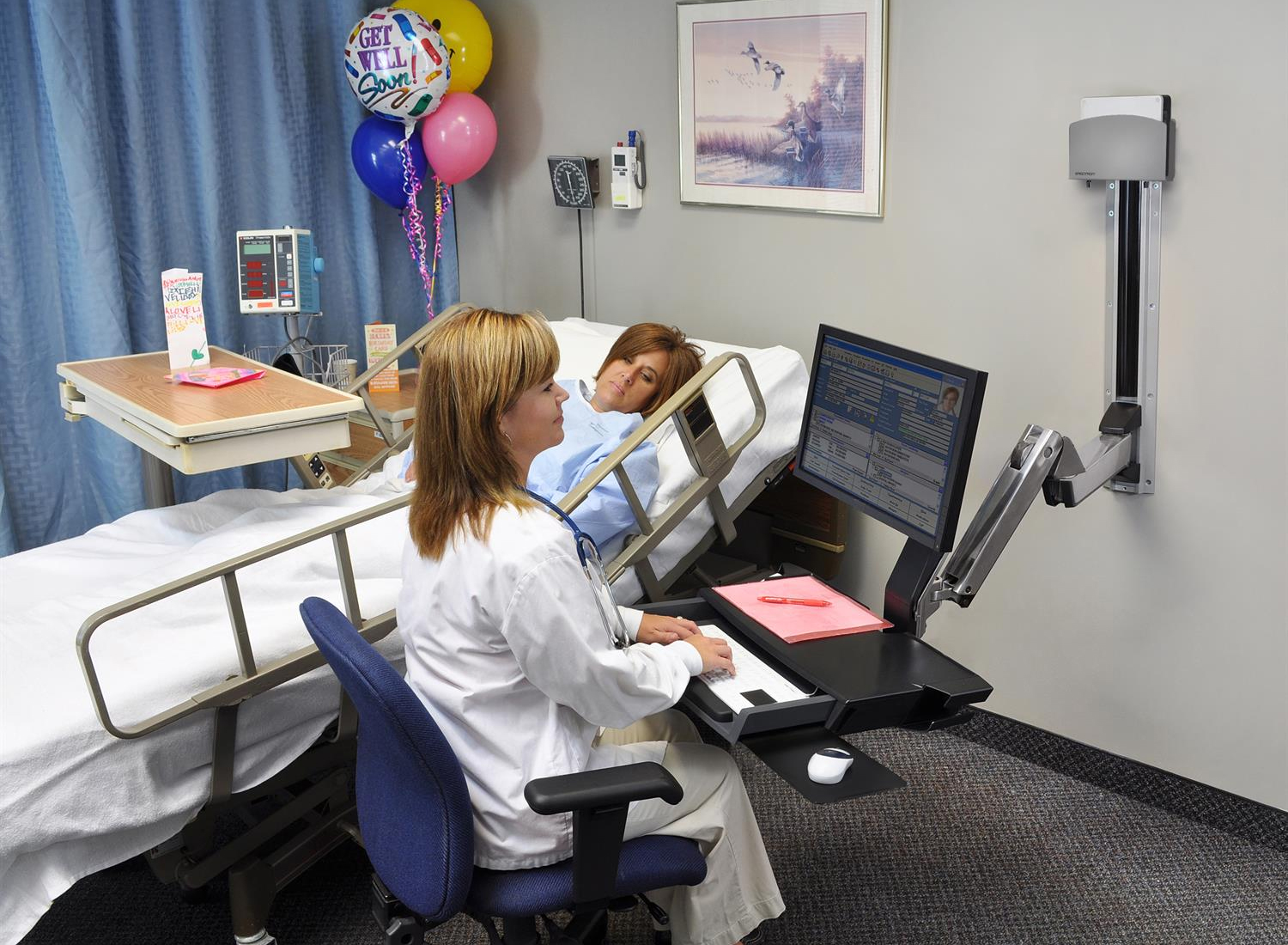

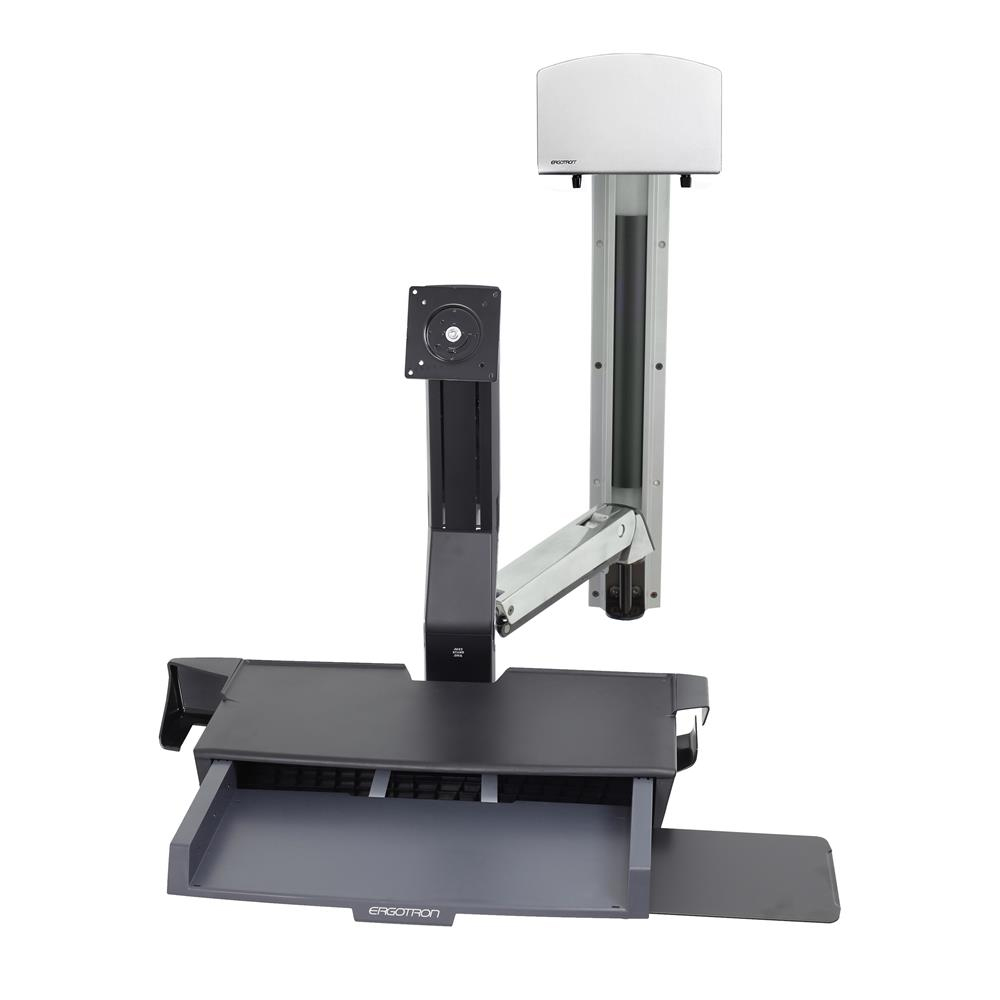

The StyleView Combo System with Worksurface from Ergotron is a wall-mounted sit-stand work option including monitor mounting, pull-out keyboard and mousing trays, desktop surface area and a CPU holder - everything needed within easy reach. The StyleView has 20" of height adjustment (plus 5" of monitor adjustment) and 43" of monitor and keyboard lateral extension. In additon, the keyboard tray is back-tilted, the entire unit can be folded back via the arm and stored compactly when not in use. All surfaces are easy to clean and antimicrobial-treated. The unit also includes a medium CPU holder (3-3/8" to 8" (8.5 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included spacer within the holder).

The StyleView accommodates monitors 24" or less and has a number of weight capacities: display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard and mouse = 4 lbs (1.8 kg); CPU = 40 lbs (18 kg).

• Dimensions and Drawings: PDF

• Worksurface Dimensions: 22.75"W x 10.6"D (57.8 x 26.9 cm)

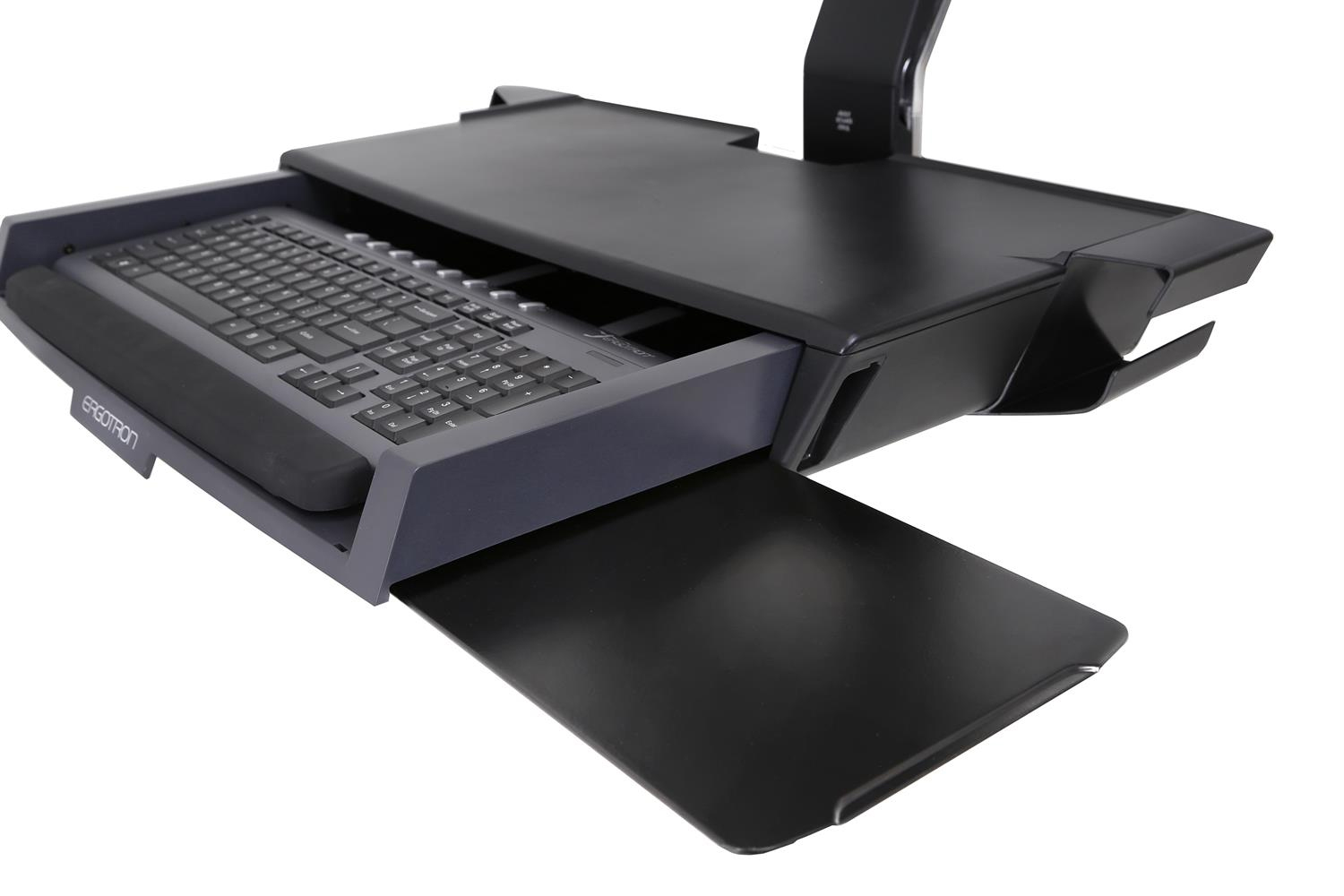

• Keyboard Tray Dimensions: 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (34 mm)
• Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
• VESA Mount: Yes, 75 mm x 75 mm or 100 mm x 100 mm
• Medium CPU Holder: 3-3/8" to 8" (8.5 to 20 cm) wide; CPUs down to 2" (5 cm) wide can be accommodated by installing the included spacer within the holder
• Weight Capacity: Display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 40 lbs (18 kg)
• Weight: 41 lbs (19 kg)
• Warranty: Manufacturer direct only (5 years)
• Package Contents: Includes Combo Arm, 34" Wall Track with (2) track covers, CPU holder, (2) 10" cable channels, CPU and arm track mount bracket kits, Wall Track fasteners for concrete and wood, CPU direct wall mount kit, height-adjustable LCD mount, wrist rest, scanner and mouse holders, integrated keyboard tray, slide-out mouse tray, handle, VESA monitor mounting kit, cable ties
