Neo-Flex Extend LCD Arm

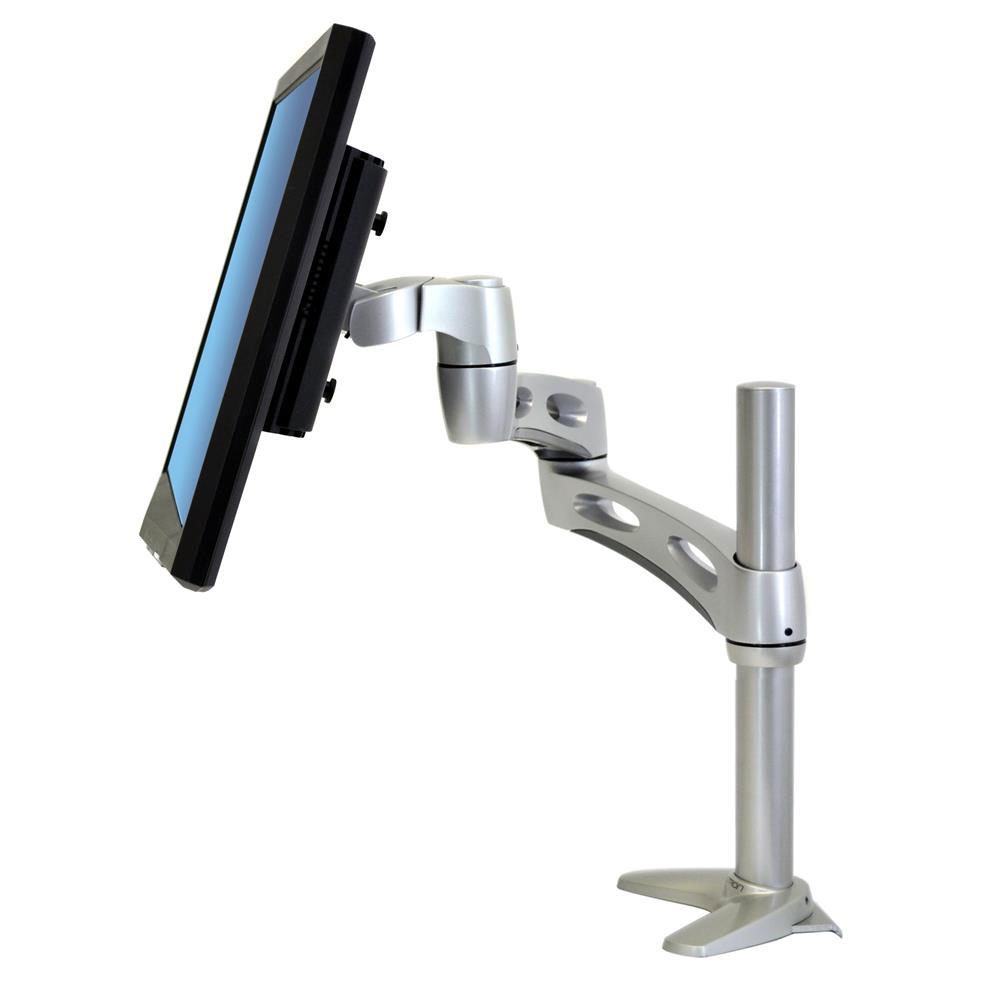

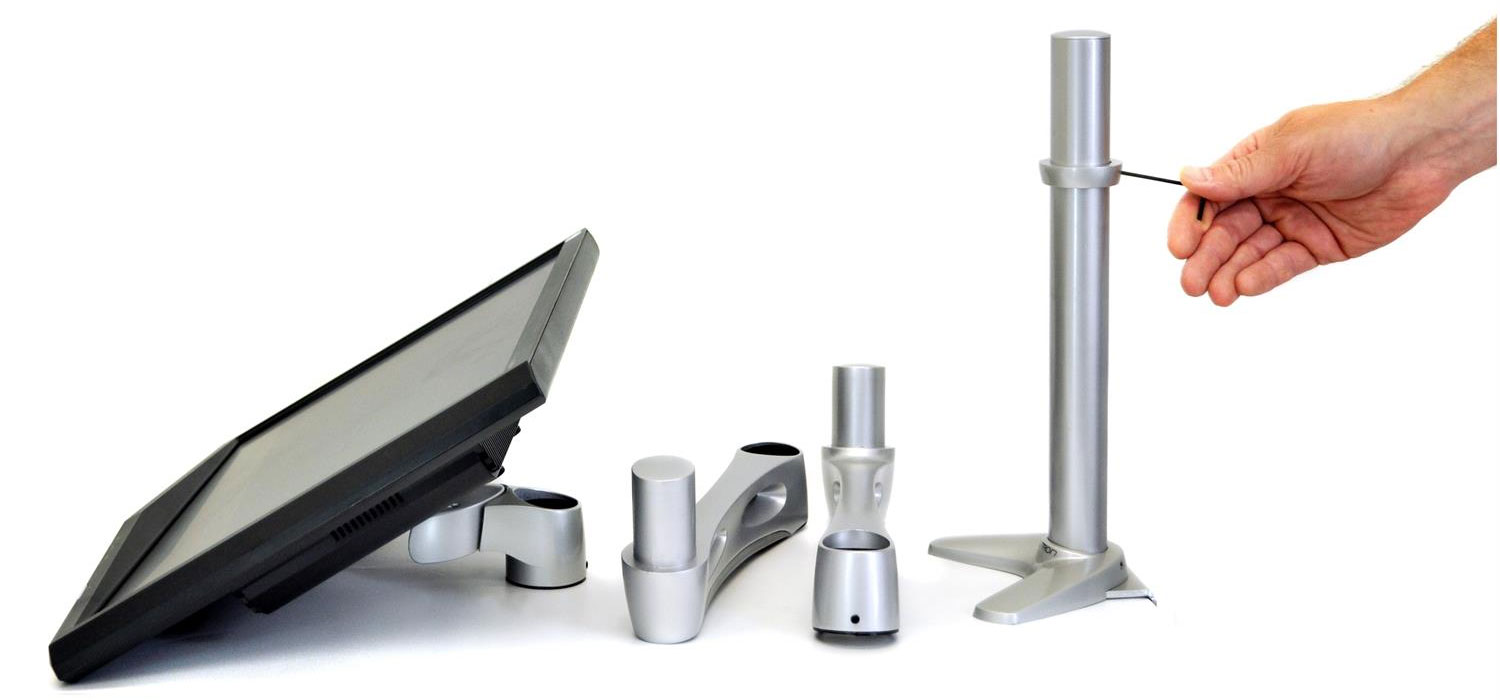

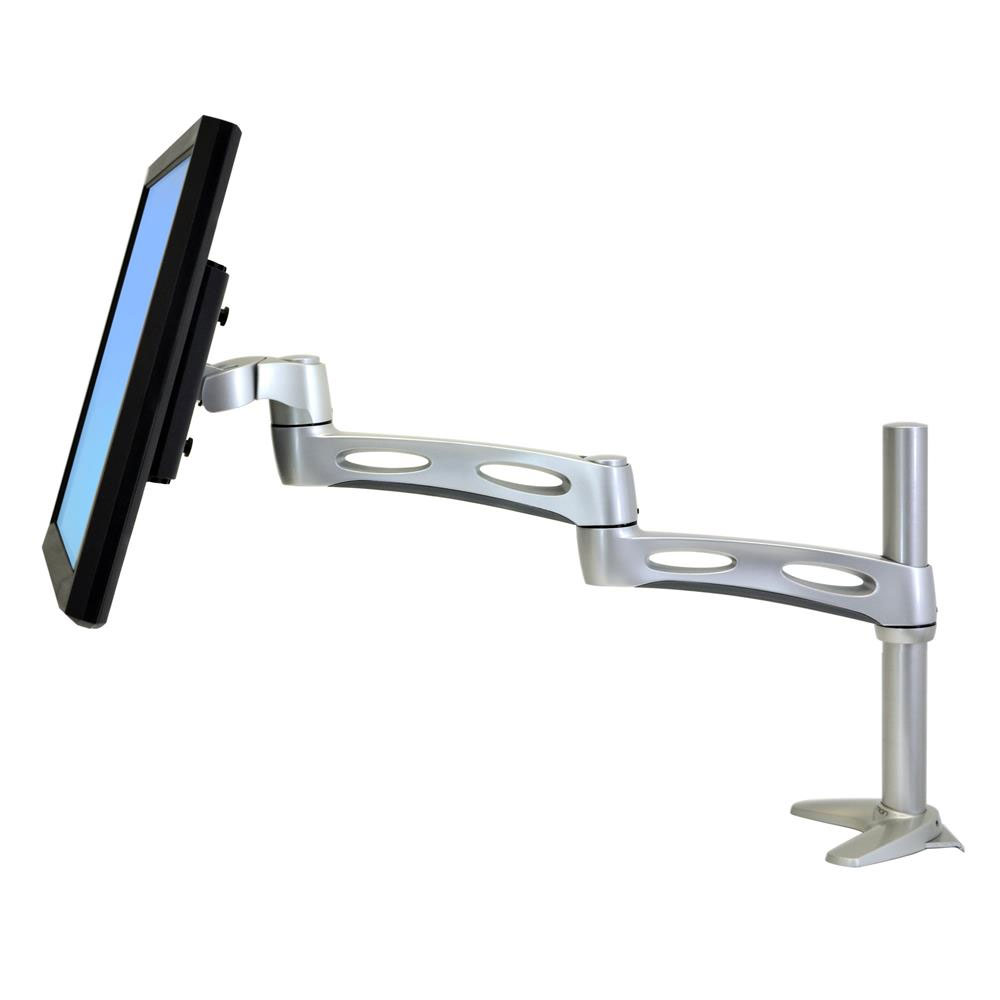

The Neo-Flex Extend LCD Arm from Ergotron offers a full 9.5" of height adjustment and can be used to position the middle of the monitor anywhere from 9" to almost 18.5" above the mounting point. At maximum extension from the mount it can also reach a full 23". This is a pole-mount arm that requires manual adjustment along the 12" upright. The Extend LCD Arm is also modular which means that where space is limited it is possible to remove one or both of the extensions to reduce the extension reach. However, this is accomplished with an accompanying loss of both articulation range and elevation. Since the complete arm folds back to under 5" there really is no need to remove the extensions. Weight capacity is from 7 to 20 lbs.

• Specification Sheet: PDF

• Weight Capacity: 7 to 20 lbs (3.2 to 9.1 kg)
• VESA Compatibility: 75x75 mm, 100x100 mm
• Adjustable Height Range: 9" (22.9 cm) to 18.5" (47 cm)
• Extension Length:
  Minimum: 4.76" (12.1 cm)
  Maximum: 23.1" (58.7 cm)
• Tilt Range: 80° overall, +75°, -5°
• Pan: 360°

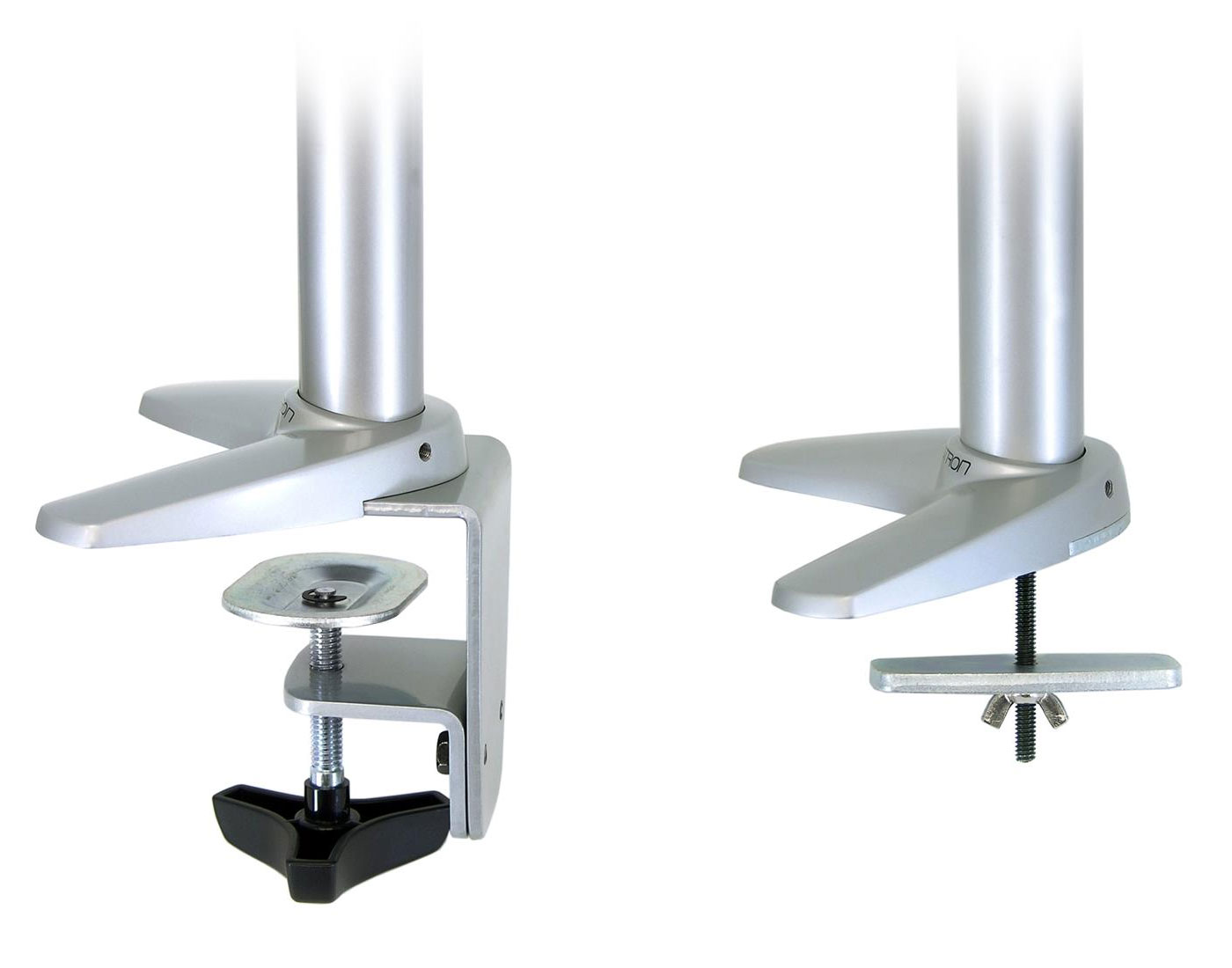

• Clamp Mount:
  Minimum Thickness: 0.5" (1.3 cm)
  Maximum Thickness: 1.875" (4.8 cm)
• Grommet Mount:
  Maximum Thickness: 2.5" (6.3 cm)
  Hole Diameter: 0.3125" (0.8 cm) to 2" (5.1 cm)
• Warranty: 3 Years - Manufacturer Direct
• Package Contents: Neo-Flex Extend LCD Arm, Desk & Grommet Bases, Assembly Instructions.
