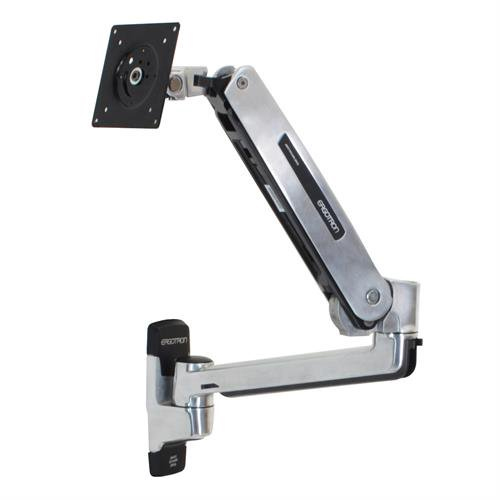

LX Sit-Stand Wall Arm Monitor Mount

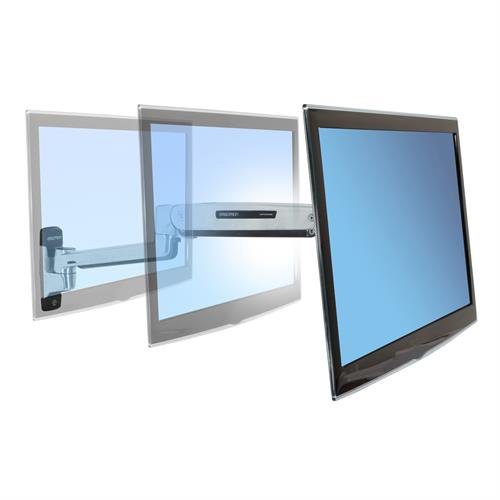

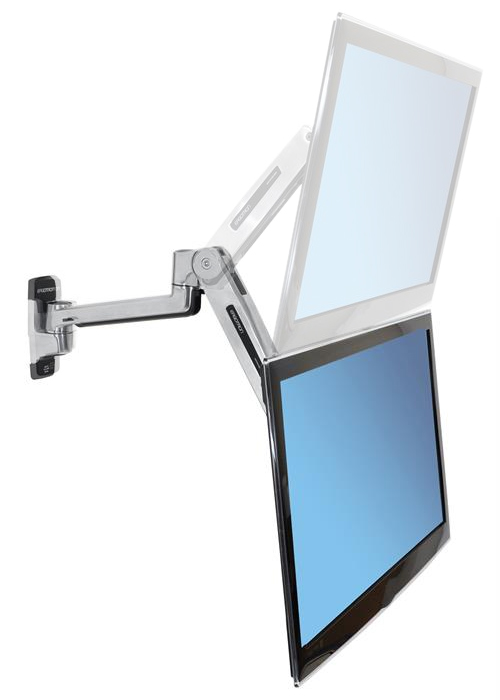

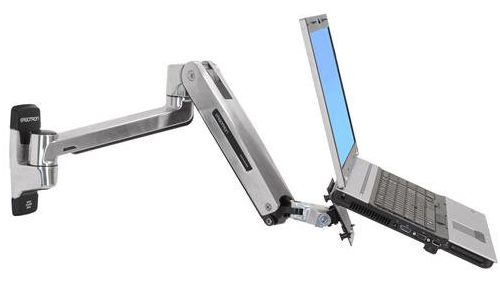

The LX Sit-Stand Wall Arm Monitor Mount from Ergotron is an ideal solution for workstations that need to be accessed by a range of users. With a full 20" range of readily available height adjustment the LX Sit-Stand Mount is able to meet the varying height requirements of the majority of users. In addition, the extended reach of 33" and the multiple articulating joints enable users to position the monitor in to reposition the monitor with just a touch (up, down, forward, and back), providing unparalleled range of motion. Because of the wide range of height adjustment and the ease of movement this monitor mount is a good candidate for locations where monitors will be viewed from a standing position.

• Specifications: PDF

• Maximum Monitor Size: 42" or less (diagonally)
  Note: Will require VESA Adapter bracket for mounts other than 75x75 and 100x100
• Weight Capacity: 7 - 25 lbs (3.1 - 11.4 kg)
• Vertical Range: 20.0" (50.8 cm)

  Middle of VESA Mount - Above Mounting Point: 17" (43.2 cm)
  Middle of VESA Mount - Below Mounting Point: 3" (7.6 cm)
• Lateral Reach: 33" (83.8 cm)
• Tilt Angle: 70° positive, 5° negative
• Pan Angle: 360°
• Rotation Angle: 360°
• VESA: Yes, hole pattern: 100 x 100 mm & 75 x 75 mm
• Mounting: Wall Mount
• Warranty: 10 Years, Manufacturer Direct
• Package Contents: LX Sit-Stand Wall Arm Monitor Mount, Extension, Wall Mount Base, VESA Brackets.
