The Renaissance Vertical Mouse by 3M - Detailed Specification Sheet

3M™ RENAISSANCE™ MOUSE FACT SHEET

Description: The 3M™ Renaissance™ Mouse is a new, ergonomically designed input device that helps reduce stress to the nerve in the carpal tunnel and to the muscles in the user's arm. This product has previously been marketed under the following names: Dr. Mouse, Doctor Mouse by Animax, Anir Mouse, Vertical Mouse. It has also been shown in clinical trials to reduce discomfort for computer users. Click here for a scientific study of the Dr. Mouse.

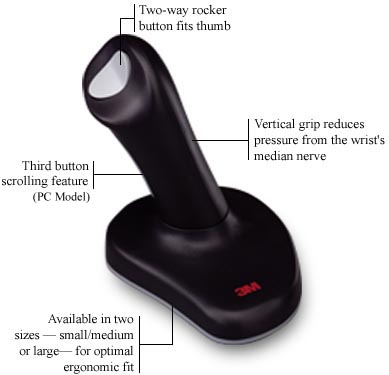

Features: Innovative vertical design keeps the arm in a comfortable, more neutral and natural "handshake" position Uses larger muscles to move mouse, reducing risk of discomfort Left and right click functions using the thumb button on the top of the vertical grip Easy electronic scrolling function reduces scrolling to a single click (PC model only) Available in two sizes: small/medium and large Easy installation USB connector with PS/2 adapter Compatible with PC, Macintosh, and iMac computers with USB ports Includes a two year warranty and a 30-day money-back guarantee

Benefits: Unlike the traditional palm-down posture of most input devices, the "handshake" design of the 3M™ Renaissance™ Mouse has been clinically proven to reduce the muscle strain and discomfort associated with carpal tunnel syndrome and repetitive stress injury. Users can choose the size of the mouse most appropriate for their hand and can work both easily and comfortably for hours.

System Compatibility PC Operates using Windows 95, 98, 2000 and NT 4.0 Macintosh Works with the new G4 Apple Power Macintosh Computer with USB port. Plug and play only. No software support. iMac/eBook Works with iMac and eBook computers and compatible with USB support Operates using Apple O/S 8.1 or higher with USB upgrades. Plug and play only. No software support.

Frequently Asked Questions about the Renaissance Mouse Q: Can I use the 3M Renaissance Mouse on other systems than Microsoft Windows and MacOS? A: The mouse is compatible with a standard Microsoft mouse and can be used on most systems that support PS/2 mice and/or USB. The third button programming will only be available on Microsoft Windows and on other systems the third button will have a system-dependant functionality and in some cases no function. Q: I need to connect the mouse to my serial port - how can I get this to work? A: You can't. Do not try to use a PS/2 to serial adapter or any other adapter to connect the mouse to a serial port. It won't work and it may harm your computer. Q: Is there a left handed version of the 3M Renaissance Mouse? A: A mouse for left handed users is not available at this time. Q: I can't get the third button to work on my MS-DOS software. A: The third button functionality is not available in MS-DOS applications/windows. Q: Do I really have to install extra software on my computer to use this mouse? I'm not allowed to install software on my work computer. A: No, you do not have to install the 3M Renaissance Mouse Utilities. You will lose the third button programming, but under Windows 98 and 2000 you will still be able to use it for scrolling in some applications. Under other Window versions you may not be able to utilize the third button without the Renaissance Mouse Utilities. Q: What is the difference between the Short Edition and the Complete Edition of the 3M Renaissance Mouse Utilities? A: Ergonomic Tips and the User Guide are not included in the Short Edition. By excluding these parts, the Short Edition is smaller and quicker to download. Q: How do I know what size mouse I need? A: The mouse comes in two sizes: small/medium or large. To determine the best fit, use the guide below. Measuring Guide Small/Medium Recommended 2.75 - 3.50 inches 7.0 - 8.8 cm Measure hand from base of palm to top of pointer finger to determine size of mouse for best fit. Large Recommended 3.50 - 4.0 inches 8.8 - 10 cm   Q: How long will it take me to get used to the 3M™ Renaissance™ Mouse? A: It takes a few days to get used to the mouse. The first day it will be very different from what you are used to. The second day you will begin to like it. You are now well on your way to learning new mouse habits. By the third day you will have adjusted. Q: What is the warranty? A: There is a a two-year manufacturer-direct limited warranty. Check the instruction manual for complete information. Q: Why does it hurt? A: INCORRECT USAGE 1. Find a natural resting position for your hand on the base of the mouse and rest your thumb on the mouse button (your thumb should be straight when you click on the mouse). 2. Support your forearm while mousing. Rest the side of your hand on the base of the mouse. This position reduces the strain on muscles and ligaments in the upper arm and forearm when working. Correct Working Posture Displayed at Right 3. Adjust the speed of the mouse (using the mouse setup utility in Windows) so that you can move the cursor around the screen without lifting your forearm or elbow. 4. Keep your wrist in a handshake position, forming a straight line with your forearm and wrap the palm of your hand around the stick. This reduces pressure in the Carpal tunnel and reduces the risk of injuries. Correct Working Position Displayed at Right 5. Move your arm (not wrist) to use your mouse. This results in less strain on the ligaments/muscle of the upper arm, neck and shoulders. Incorrect: Working Position - If your thumb and wrist cannot maintain correct positions, recheck your size. Q: What is the difference between a USB and PS/2 connector? A: This is what a PS/2 connector looks like: If your mouse has a PS/2 connector, it has a PS driver and needs to be connected to the compatible hardware device, PS/2 port in your computer. You must also make sure the device is integrated, so go to the control panel and activate the port. This is what a USB connector looks like: If your mouse has a USB connector, it has a USB driver and needs to be connected to the compatible hardware device, USB port in your computer. You must also make sure the device is integrated, so go to the control panel and activate the port.

If you opened this page from our online catalog, close this window to return to it. If you opened this page from outside the ErgoCanada.com web site, click here to enter our online catalog.

Please bookmark this site and check back often, as we continuously add new products and update product information.
